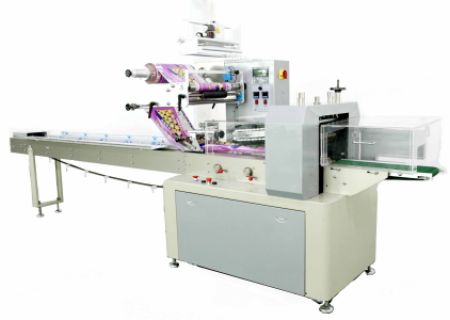

AHP-450-S3 HORIZONTAL FLOW WRAPPER
Standard Features:
3 Servo Motor
Painted Case (Milk Color)
Alpha-Control System
Interlock Safety Door Protection
Standard Right to Left Machine
Adjustable Former
RD144, Sealing Jaw Width 200mm
2 Sets of Wheels
Lug Pusher Infeed Conveyor
Film from Top, Max Width 450mm
Speed: 20-120ppm
Optional 304SS Case

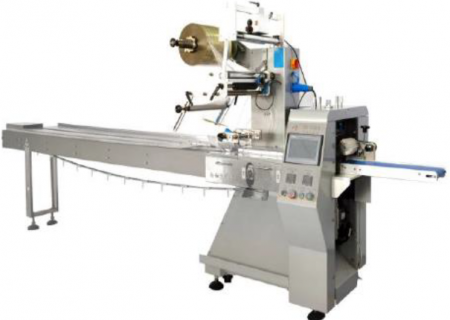

NH-S500 Servo Drive Flow Wrapper
Standard Features:
3 Servo Drive (Horizontal Sealing)
Single Film Roll Holder
Supporting Pad Type Infeed Conveyor
Ink Coder
Stainless Steel Construction For Food Contact Parts
Painted Carbon Steel for Main Machine
Rotatory Motion Sealing Jaws for Horizontal Sealing and Cutting
High precision photo eye detection
7” Colored HMI
Hygienic Design for Easy Cleaning
Driven Reel Holder
- Film width: 80-360 mm
- Bag length: 100-350mm
- Bag width: 35-160mm(W)
- Packing speed: 35-300bag/min
- Product height: 5-55 mm
- Power voltage: 220V, 50/60HZ, 5.2 KW
- Machine size: 4020×1000×1950mm
- Machine weight: Approximately 600KGS
- Material of frame: Carbon steel as standard. SUS optional
- Film material: OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP laminated film
