Cosmetic packaging machinery

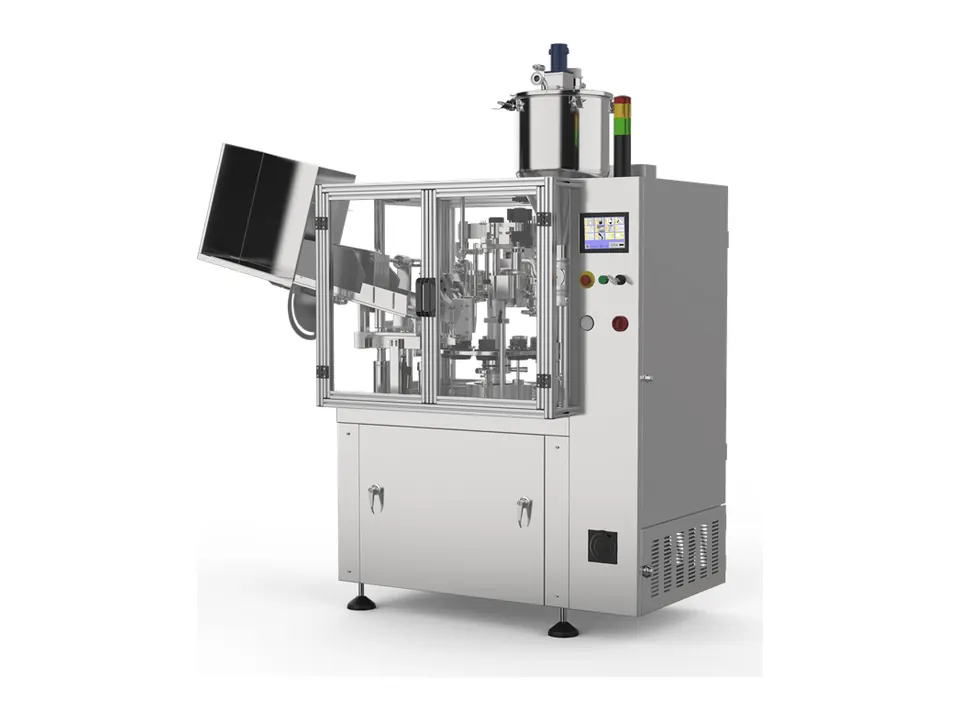

BMNF-30B Plastic Tube Filler and Heat Sealer

Widely used in pharmaceutical, food, cosmetic, and daily chemical industries to fill ointment or viscous fluid materials into plastic tubes or laminated tubes. And then seal the tube tails, trim the tails, and print (emboss) code on tubes automatically.

• Get a Free Quote
• Fulfills tube feeding, marking identification, filling, hot air sealing, trimming, code printing, and finished product ejection through an automatic control system.
• Adopts touch screen and PLC control system. Easy to operate.
• Tube feeding is conducted pneumatically via a vacuum device.
• Sense the color center by rotary and photoelectric inductance to position accurately.
• The material contacting part is made of 316L stainless steel, clean, sanitary and conforming to GMP standard requirements.
• Filling volume 5-250ml (tube）
• Filling accuracy ≤±1%
• Capacity 1800-2400 (tubes/hour Adjustable）
• Tube diameter ф10- 50mm
• Tube length 210mm (Max. Length)
• Hopper volume 40 L
• Power AC380/220V (Optional)
• Compressed Air 0.5-0.7MPa
• Hot air 3.0 kW
• Dimension 1900(L)×850(W)×1900(H)mm
• Weight (Approx) 850kgs

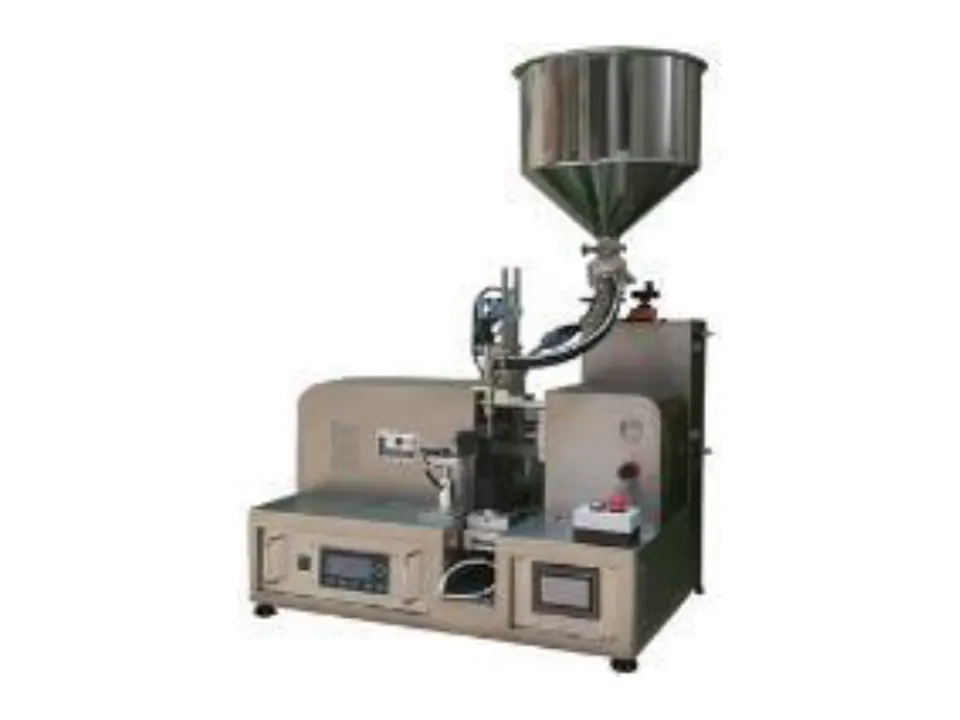

BUS-2020TF Ultrasonic Plastic Tube Filling and Sealing Machine

The BUS-2020TF is a manually loaded and unloaded tabletop ultrasonic plastic tube filling and sealing machine. The high-frequency vibration acts on the two surfaces of the plastic, and the heat generated by the vibration causes these two surfaces to be welded together tightly, the strength of the welding area is the same as other areas of the plastic. No need for adhesive or heating, It replaces the traditional hot pressing or bonding process. It is low cost with no pollution and no damage to plastic tubes. It is widely used in cosmetics, commodities, medicine, food, etc. Embossing on the seal is optional. A heating and mixing hopper is also optional.

• Get a Free Quote
• Power Supply 220VAC, 50/60Hz, 2000W
• Frequency 20KHZ
• Tube Height 50-250mm
• Tube Diameter 10-50mm
• Filling Range 10-250ml
• Speed 10-20 tubes/minute
• Dimensions 860x620x1300mm
• Weight 95KG

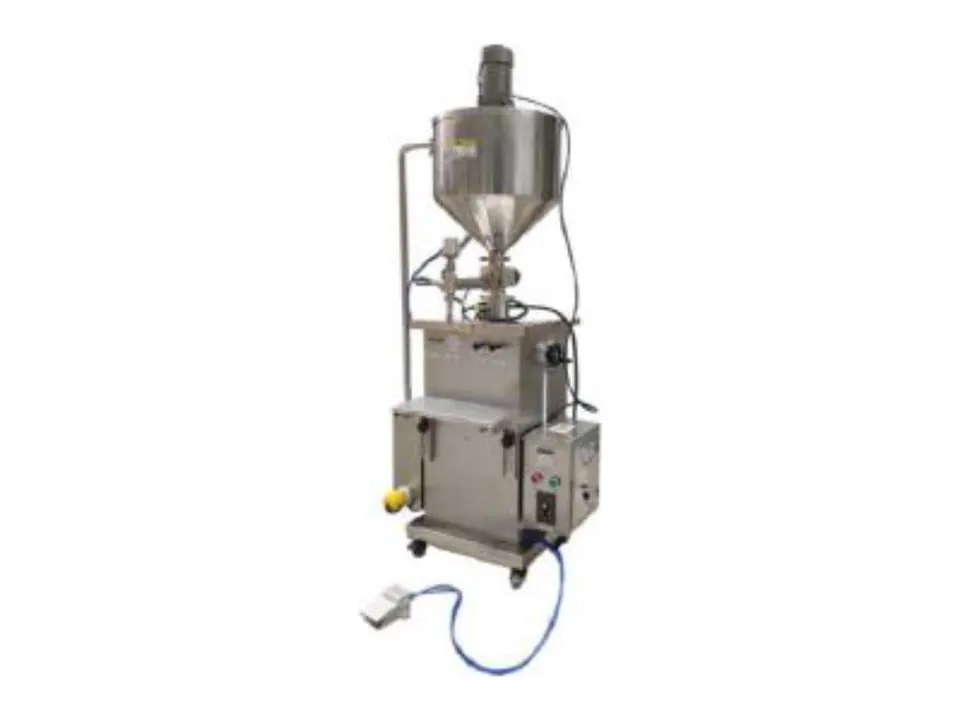

BUS-250FH Vertical Pneumatic Filling Machine with Heater and Blender

• Filling Speed 20-40 times/minute
• Filling
• Precision: ± 0.5%
• Ranges: 5-60ml, 15-120ml, 60-250ml, 120-500ml, 250-1000ml, 500-2500ml, 500-5000ml
• Air
• Pressure: 5-8
• Mpa
• Power: 220V, 4500W
• Dimensions: 760x650x1650mm
• Weight: 70KG
• Get a Free Quote
• By heating circulating water in the interlayer of the hopper, the machine indirectly heats the material to a constant temperature, and stirs the material to increase the material fluidity, reducing the viscosity of the material so that it can accurately fill material with high viscosity.
• Equipped with quick disassembly and assembly joint for easy cleaning.
• Adopts pneumatic control and good orientation, so the filling accuracy is very high, the highest accuracy can be controlled within ± 0.5%.

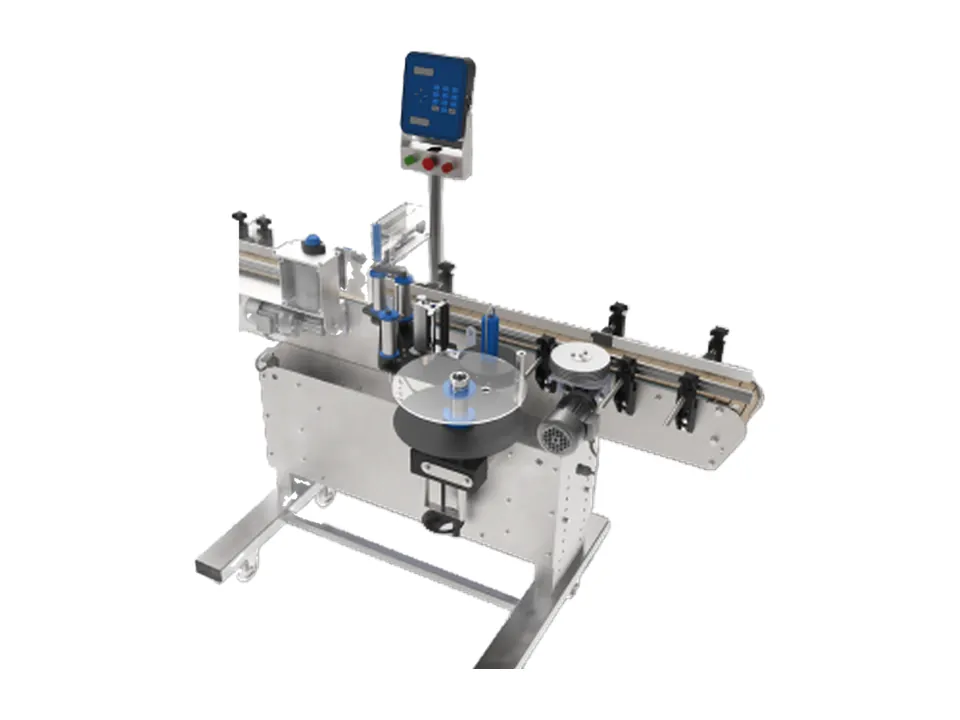

BM-LCW Wrap Labeler

• Get a Free Quote
• Roller Wrapping Labeling System
• 32 Product Memories
• Numeric Keypad with LCD Display
• Variable Speed Conveyor, Adjustable Side Guides
• Multiple Labels On a Single Container
• See Full Image for More Information

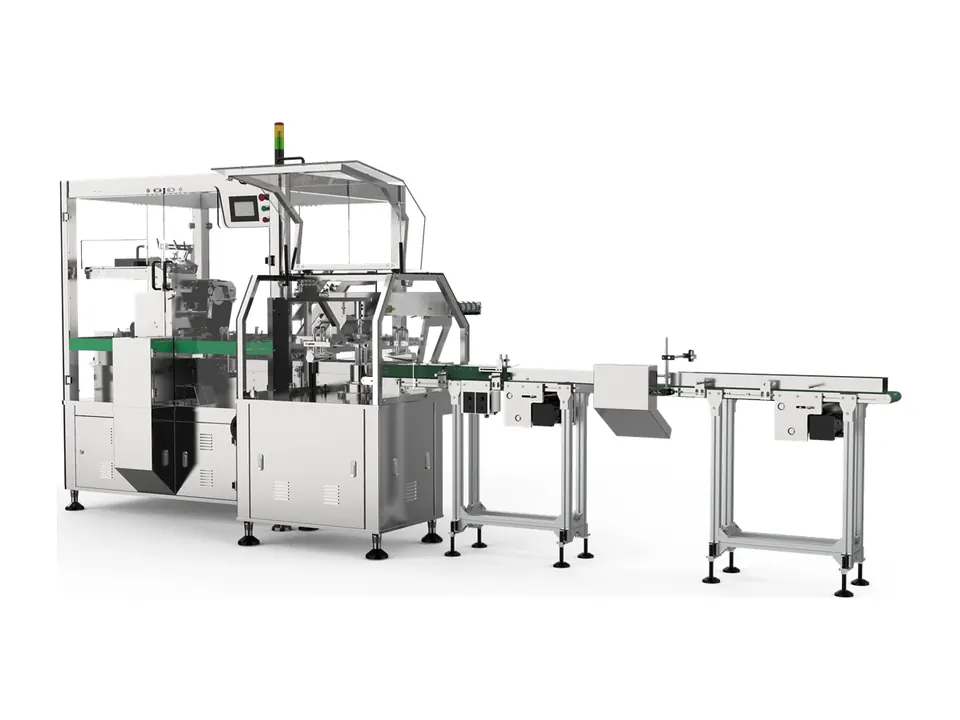

BMZHJ-70B Automatic Horizontal Cartoning Machine

RGZHJ-70B Automatic Horizontal Cartoning Machine completes the whole process of tube feeding, carton feeding, manual feeding, tube pushing, coding, carton folding, defective kicking, and finished products with the full-automatic operation system.

• Get a Free Quote
• The rotary grab mechanism can tilt grab the tubes to the main transmission positioning slot
• The process of box feeding adopts active carton opening, which makes the whole process of carton sucking, carton opening, and carton feeding more stable and reliable. Effectively solve the problem of carton opening due to dampness and deformation
• Folding is more stable, and folding box mechanism for independent box integrated design, more convenient adjustment, and shorter adjustment time.
• Product Dimension 65x30x25, 240x95x80mm
• Manual Dimension (L×W) 100×20, 200x50mm
• Capacity 1200-4200pcs/hour
• Power Supply 380/220V (Optional)
• Working Compressed Air 0.6-0.8MPa
• Air Consumption 350L/minute
• Electromotor Power 0.75Kw
• Dimension (LxWxH) 1.8Kw
• Dimension (LxWxH) 2750×1500×2180mm
• Weight 1000kg

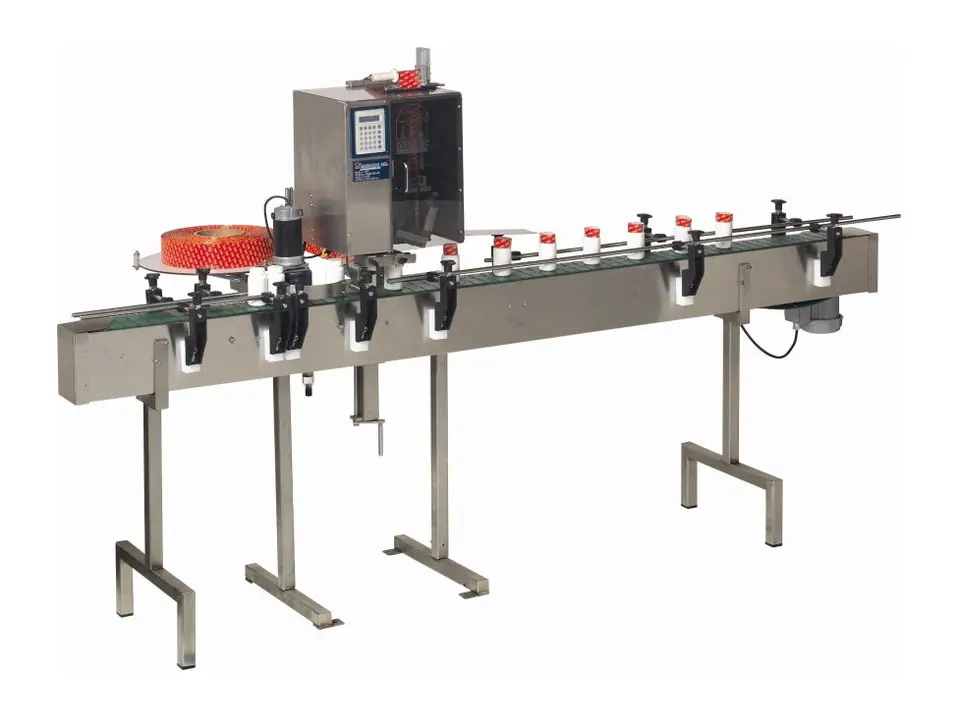

BM-5 Shrink Sleeve Neck Banding Machine

Neck Banding Machines are known as shrink sleeving machines, shrink banders, tamper-evident banders, neck banders, and, as some machines are capable of both, full body sleeves or shrink labels. No matter what the name, neck banders convert lay flat tube roll stock into a shrink band by opening and re-creasing the tube stock so that it opens more easily. The tube stock is then drawn back flat 90 degrees to its original position through the drive rollers and then is cut in any of several ways. Some neck banding machines cut after the film has been forced over the product by a V knife. Other shrink band applicators may cut while the stock is still flat while being held by vacuum cups, and our high-speed machines use a group of circular cutters located outside the mandrel after the band has been fed onto the product. Circular cutters work so fast that speeds of over 250 bottles per minute are possible on a single head.

Durable Stainless-Steel Construction Quick Wash Down Compact Space-Saving Design Speeds Around 100 Bottles/Min M5 Series Size Range 25-90mm Lay Flat Band Lengths to 3” Fast Changeover Spacing Wheel for More Efficient Bottle Handling
