Powder & Net-Weight Fillers

Adjustable Volume Cup Filler

Volumetric Cup Filler Systems are used for dispensing a variety of dry free-flowing products such as beans, rice, pet food, candy, seeds, and more without any product degradation.

• Get a Free Quote

Auger Filler Hopper Refilling System

Save time and energy with an automatic powder auger feeding elevator! This product can be used in conjunction with powder-filling machines of various specifications and high-speed mixers so that powder and particles are automatically fed from the storage box by the screw (height can be custom) and added to your auger filler’s hopper by the level control. It has the characteristics of automatic feeding, fast feeding, labor saving, safety, and reliability.

• Get a Free Quote

Auger Filler

Auger Fillers are the machines of choice for all dry products that have the consistency of granule size and powders. In some cases, auger filling equipment can be used as a depositor for moist products such as cooked rice and pastes. The biggest advantage of auger-filling machinery is that the systems are relatively closed making auger fillers the ideal choice for very fine powders such as talc, flour, and baking soda which tend to get airborne with other systems. Auger fillers are also capable of relatively high fill rates compared with net weight fillers and take up less floor space.

• Get a Free Quote

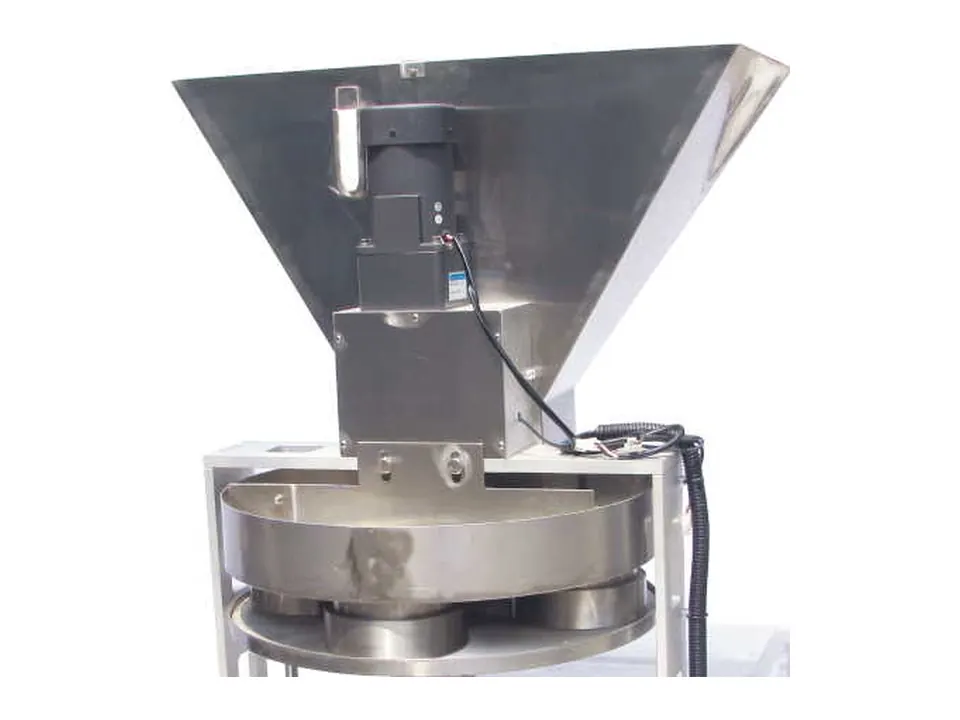

Cup Filler

Cup Filler Systems are used for dispensing a variety of dry free-flowing products such as beans, rice, pet food, candy, seeds, and more without any product degradation. They’re an economical alternative for volumetric filling of free-flowing products. The concept is actually quite simple if you imagine dipping your measuring cup into a product and then leveling it with a straight-edged knife. This is the basic principle behind a cup-filling machine. The only difference is that the product flows from a hopper above and the knife is the edge of the hopper. For lower speed applications pocket fillers are often reciprocating devices. But higher speed cup filling equipment utilizes rotary systems that can be scaled up to match almost any speed requirement.

• Get a Free Quote

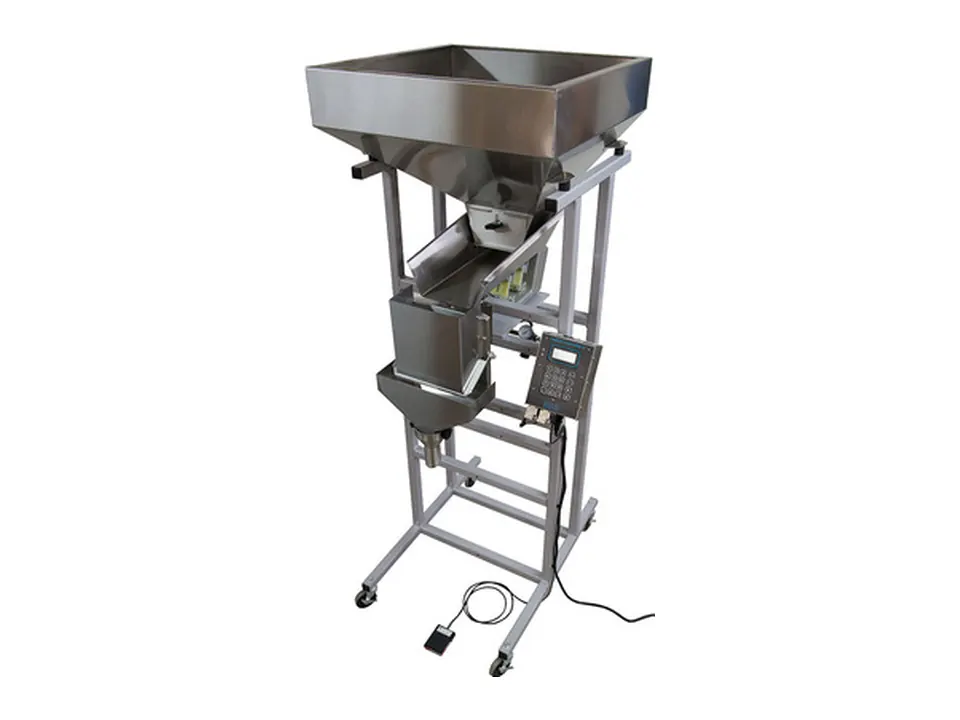

BMS-4 Net Weight Filler Standard

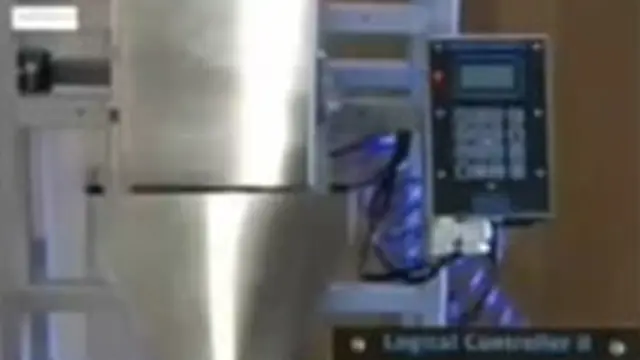

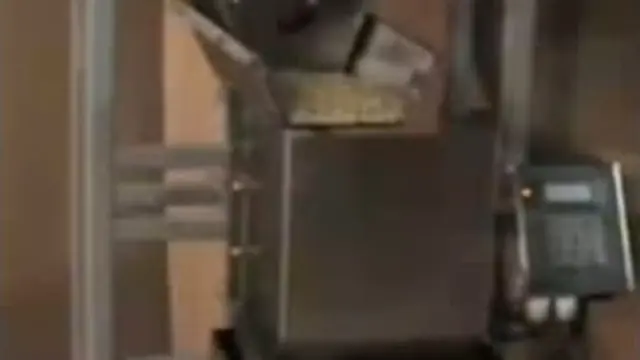

The Model BMS-4 Semi-Automatic Scale System is a great first step to take your business from hand scooping to automation. Your bulk product is placed in the supply hopper at the top of the machine. The S-4 uses an electromagnetic vibratory feeder to move the product from the supply hopper to the weigh hopper where it is weighed. When the target weight is reached, the Controller stops the feeder, and the weigh hopper opens automatically or with the foot switch to dump your product into your container. A new fill cycle is started and your filled bag may now be sealed.

• Get a Free Quote
• Self-adjusting Controller
• Reads out to 1 gram or .001 lb
• Controller range up to 10lbs.
• Supply Hopper capacity 3.5 cu.ft. (equivalent to 5five-gallon pails).
• Includes powder-coated chassis (stainless steel optional.)
• All product contact surfaces stainless steel
• Footprint 4.6 sq.ft., 68” high
• 120V 60Hz (wall outlet); (240V 50Hz optional)
• Handles any free-flowing dry bulk products
• Can be used with any bags or rigid containers
• Automatic tare adjustment
• Self-adjusting bulk & dribble speed control
• Up to 800 fills/hour

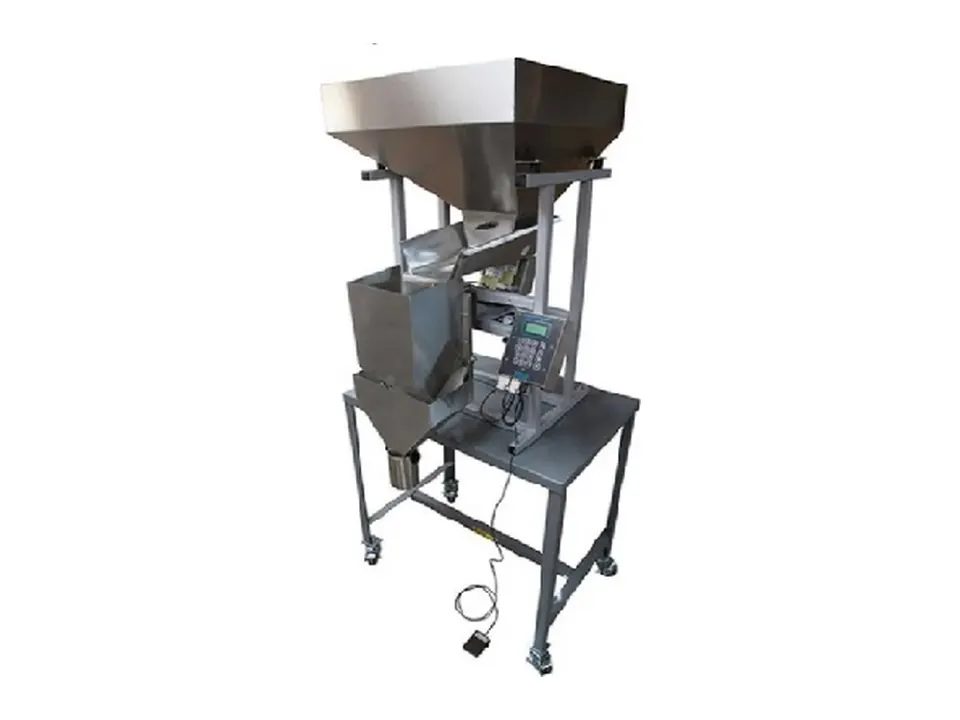

BMS-4 Net Weight Filler Tabletop

The Model BMS-4 Semi-Automatic Scale System Table Top Model is a great first step to take your business from hand scooping to automation. Your bulk product is placed in the supply hopper at the top of the machine. The S-4 uses an electromagnetic vibratory feeder to move the product from the supply hopper to the weigh hopper where it is weighed. When the target weight is reached, the Controller stops the feeder, and the weigh hopper opens automatically or with the foot switch to dump your product into your container. A new fill cycle is started and your filled bag may now be sealed.

• Get a Free Quote

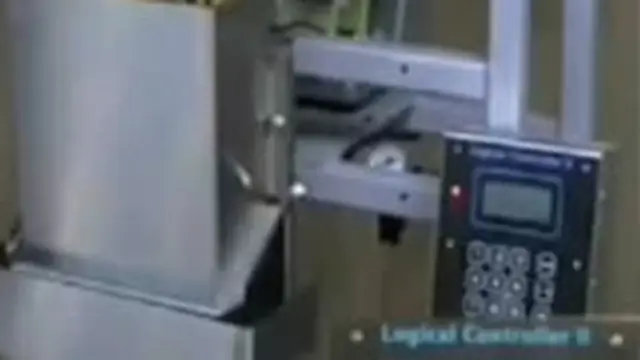

• Self-adjusting SMART Logical Controller II
• Reads out to 1 gram or .001 lb
• Controller ranges up to 10 lbs.
• Supply Hopper capacity 3.5 cu.ft.(equivalent to 5 five-gallon pails).
• Includes powder-coated chassis(stainless steel optional.)
• All product contact surfaces stainless steel
• Footprint 4.6 sq.ft., 41.5” high
• 120V 60Hz (wall outlet); (240V 50Hz optional)
• Handles any free-flowing dry bulk products
• Can be used with any bag or rigid containers
• Automatic tare adjustment
• On-the-fly, self-adjusting bulk & dribble speed control
• Up to 800 fills/hour

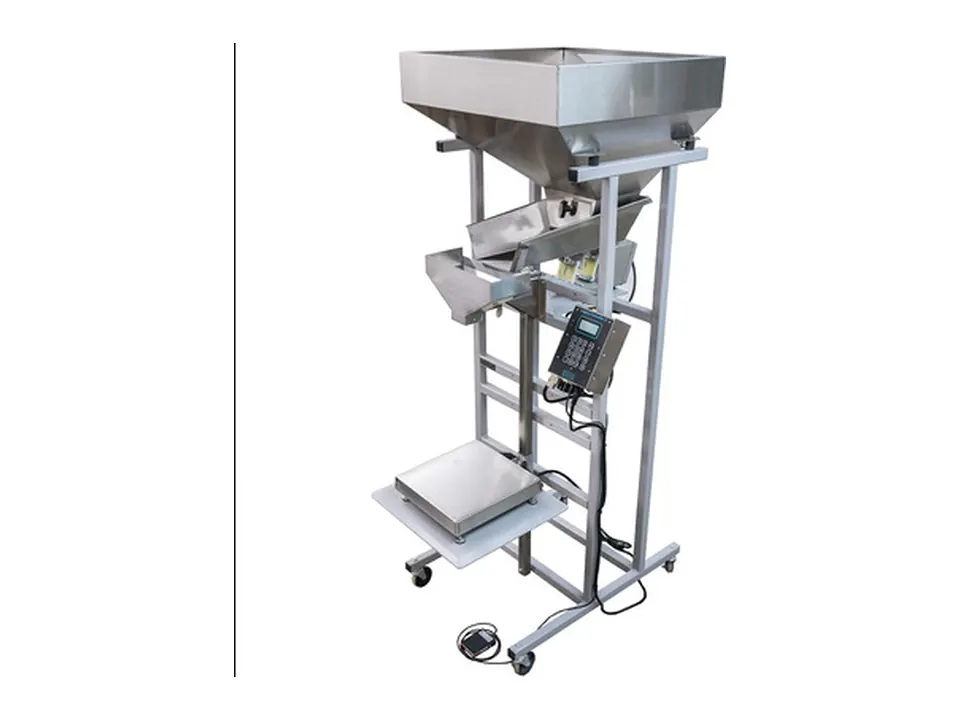

BMS-5 Bulk Net Weight Filler

The very accurate and easy-to-operate Model BMS-5 Semi-Automatic Scale System has automatic tare, automatic feed and speed controls for both bulk and dribble feed rates and automatic set points. The product flow from the hopper to the feed pan can also be controlled by an adjustable slide gate.

• Get a Free Quote
• Bulk filling for weights of up to 50 lbs.
• Self-adjusting Controller
• Controlling reads out to 1 gram or .01 lbs.
• Scale range from 1 gram up to 50lbs.
• Supply Hopper capacity 3.5 cu. ft. (equivalent to 5 five-gallon pails).
• Includes powder-coated chassis and table with a 23” range of height
• All product contact surfaces stainless steel
• Footprint 4.6sq.ft., 68” high
• 120V 60Hz (wall outlet); 240V 50Hz optional
• Handles any free-flowing dry bulk products
• Can be used with all bags or rigid containers
• Automatic tare adjustment
• Self-adjusting bulk & dribble speed control
• Up to 400 fills/hour
• Table height is adjustable to accommodate containers from 3” to 36” high.
• Scale Total Weight: 140lbs.
• Air Requirements: <0.25 cfm air supply at 30psi (only needed with optional Dribble Feed Gate)

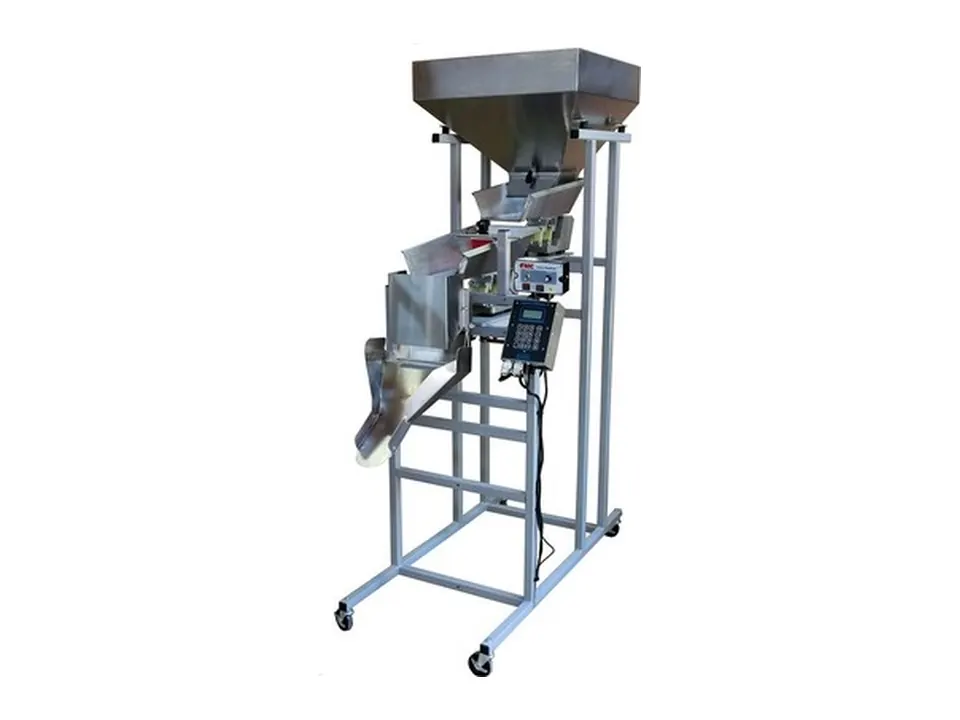

BMS-6 Cascading Net Weight Filler

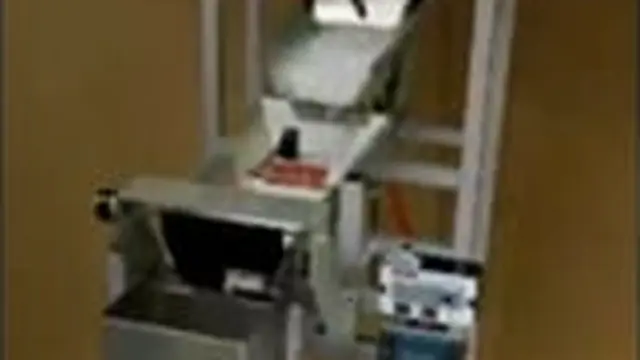

The Model BMS-6 Cascading Scale System is designed to fill harder-to-run products such as crackers, chips, wrapped products, and other non-free-flowing products. A very accurate and easy-to-use control system monitors the product depth in the lower pan allowing for consistent filling. The S-6 utilizes many of the same systems found on our S-4, including the Logical Controller II, for reliable, hassle-free operation.

• Get a Free Quote
• 2 Cascading feed pans
• Self-adjusting Controller
• Reads out to 1 gram or .001 lbs.
• Controller range up to 10 lbs.
• Supply Hopper capacity 3.5 cu. ft. (equivalent to 5 five-gallon pails).
• Includes powder-coated chassis (stainless steel optional.)
• All product contact surfaces stainless steel
• Footprint 7.5 sq.ft., 75” high, occupies only 23” x 48” of floor space
• 120V 60Hz (wall outlet), 240V 50Hz option available
• Designed for difficult products of irregular shape
• Handles all dry bulk products from powders to large parts
• Compatible with all bags, rigid containers, bagging machines, and conveyors
• Automatic tare adjustment
• Self-adjusting bulk & dribble speed control
• Up to 800 fills/hour
• Total scale weight: 240 lbs
• 5” Discharge Chute standard
• Air Requirements: <0.5 CFM air supply at 30 psi

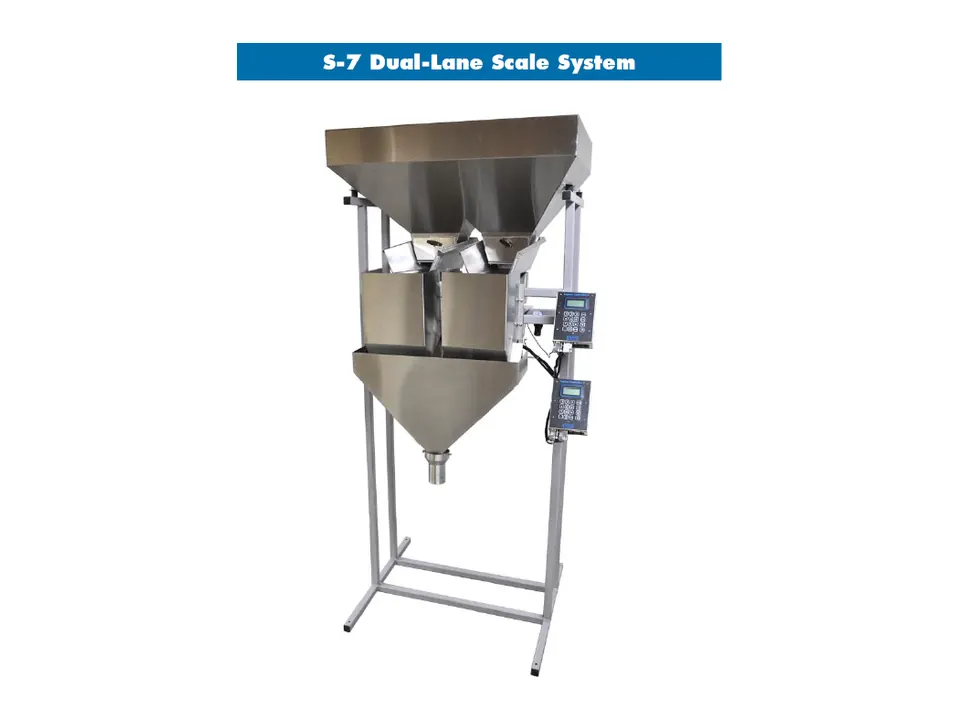

BMS-7 Dual Lane Net Weight Filler

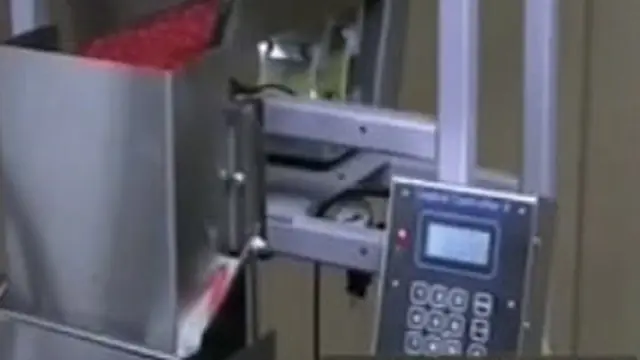

The Model BMS-7 Dual Lane Scale System shares many of the same basic characteristics as the BMS-4. A very accurate and easy-to-use Logical Controller II allows for three different modes of operation. In a simultaneous dump, the scale fills both weigh hoppers at the same time, allowing for twice as much product flow as our BMS-4. In an individual dump, the scale dumps whichever weigh hopper is at weight. This gives twice the speed of our S-4 machine. Finally, the Model BMS-7 can mix products with the optional divided supply hopper. The BMS-7 Dual Logical Controller II system can be set to weigh two completely different products at different weights to easily mix products into one container.

The Model BMS-7 Dual Lane Scale System shares many of the same basic characteristics as the BMS-4. A very accurate and easy-to-use Logical Controller II allows for three different modes of operation. In a simultaneous dump, the scale fills both weigh hoppers at the same time, allowing for twice as much product flow as our BMS-4. In an individual dump, the scale dumps whichever weigh hopper is at weight. This gives twice the speed of our BMS-4 machine. Finally, the Model BMS-7 can mix products with the optional divided supply hopper. The BMS-7 Dual Logical Controller II system can be set to weigh two completely different products at different weights to easily mix products into one container.

• Get a Free Quote
• Two lanes for twice the speed
• Self-adjusting Controller
• Reads out to 1 gram or .001 lb
• Controller range up to 10 lbs. per lane
• Supply Hopper capacity 5.1 cu. ft. (equivalent to 7 five-gallon pails).
• Includes powder-coated chassis (stainless steel optional)
• All product contact surfaces stainless steel
• Footprint 7.5 sq ft, 68” high
• 120V 60Hz (wall outlet), 240V 50Hz option available
• Handles all free-flowing dry bulk products
• Compatible with all bags, rigid containers, bagging machines, and conveyors
• Automatic tare adjustment
• Self-adjusting bulk & dribble speed control
• Up to 1500 fills/hour
• Overall height: 5’8” (68”), occupies only 30”x35” of floor space
• Supply Hopper capacity: 5.1 cu. ft. (equivalent to 7 five-gallon pails)
• Scale total weight: 225 lbs.
• Standard funnel discharge opening is 2.5” x 2.5” square
• Power requirements: 4 amps, 120 volts 60Hz AC
• Air Requirements: <1 CFM air supply at 30 psi

BMSAF-300 Semi-Automatic Tabletop Auger Powder Filler

The BMSAF-300 Semi-automatic Tabletop Auger Powder Filling Machine with PLC + Touch Screen Control can work independently. Precise and innovative design makes the BMSAF-300 an economical and reliable packaging machine. It is the best choice for operator convenience! All of the hoppers of our auger filler were designed vertical/horizontal half-open type that make it easier to disassemble for cleaning.

• Extra Auger Tooling Spinner Plate SUS316 Contact Parts Dust Collection Device (200W) Loadcell
• Get a Free Quote
• Semi-automatic Auger Filler
• Hopper Volume: 14L
• Total Power: 0.87KW
• Dosing Range: ≤100g
• Packing Speed: 25-35 bags/min
• Metering Accuracy: ±0.3-1% (Varies according to packing weight, speed, and product features) Servo motor to control auger
• Full stainless steel 304 hopper
• Vertical half-open hopper, easier disassembly for cleaning
• Material contact part is polished skill
• Quick-remove auger

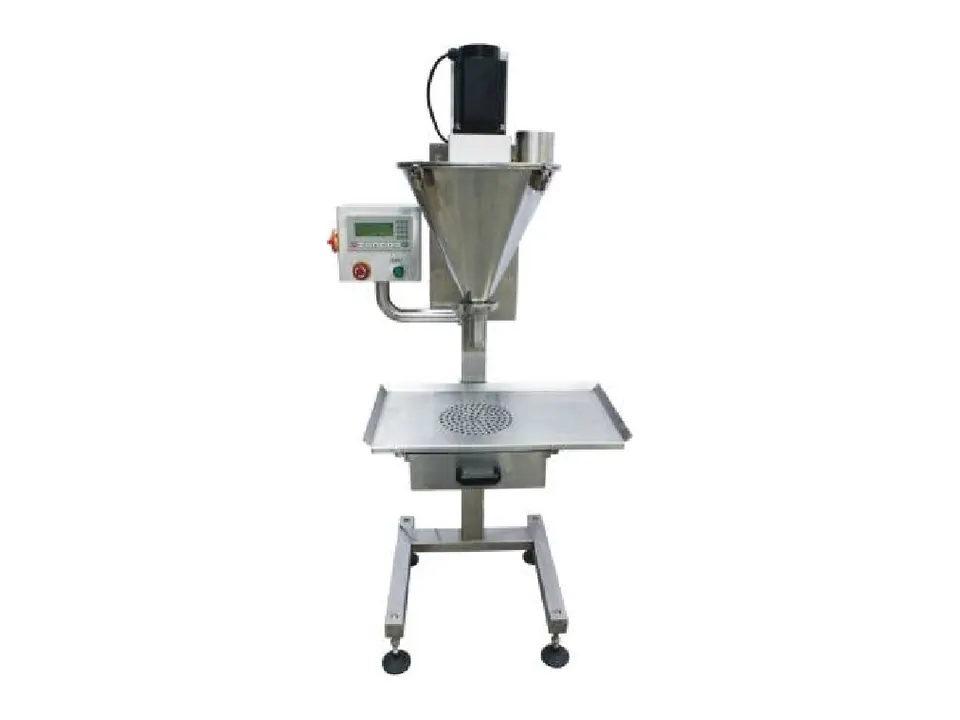

Semi-Automatic Auger Filler

All of our Semi-automatic Auger Fillers can be easily automated by adding conveyors or modified for mounting on form and fill machines. All of the machines include a stirring bar to keep the product constantly fed to the fill auger. They are available in small doses (1-50g, 10-200g) and medium doses (10-500g, 10-1000g, and 100-5000g). The biggest advantage of auger-filling machinery is that the systems are relatively closed making auger fillers the ideal choice for very fine powders such as talc, flour, and baking soda which tend to get airborne with other systems. Auger fillers are also capable of relatively high fill rates compared with net-weight fillers and take up less floor space.

• Get a Free Quote
