Palletizers & Stretch Wrap

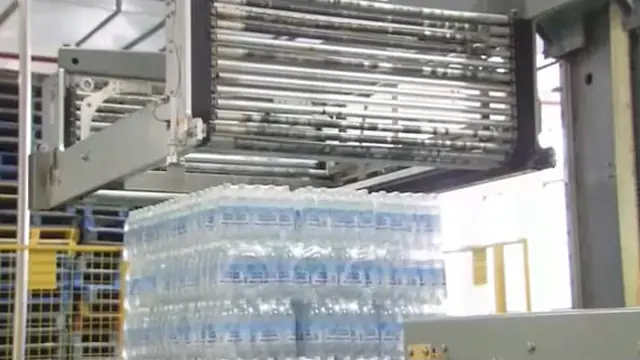

BMP-925 Auto Palletizing Equipment

• Custom-made equipment, no standard specification.
• Get a Free Quote
• Manual adjustment, easy to adjust, and changeover is quick for various carton sizes.
• PLC controlled.
• Suitable usage products: cartons, logistics boxes.
• Pallets can be fed manually (by an operator) or supplied automatically (by a pallet dispenser/pallet separate machine).

Rotary Arm Pallet Wrapping Machine

If you need to wrap unstable loads, a rotary arm stretch wrapper is the ideal choice. The rotating arm of a rotary stretch wrapper does all the work while the load stays completely stationary. This allows items to remain stable until the stretch film is secure. With this configuration, you can confidently wrap loads that are extremely tall, light, or heavy.

Rotary is the ideal solution for wrapping particularly unstable products with stretch film. This stretch wrapper is very user-friendly with easy electronic adjustments for the rotation speed of the rotary arm and the upward/downward speed of the pre-stretch. The number of revolutions is also adjustable for the top and bottom of the palletized load.

• ● Less Space for Machine Installation
• ● Unlimited Maximum Pallet Weight
• ● PCB Control & Slewing Bearing Drive
• Get a Free Quote

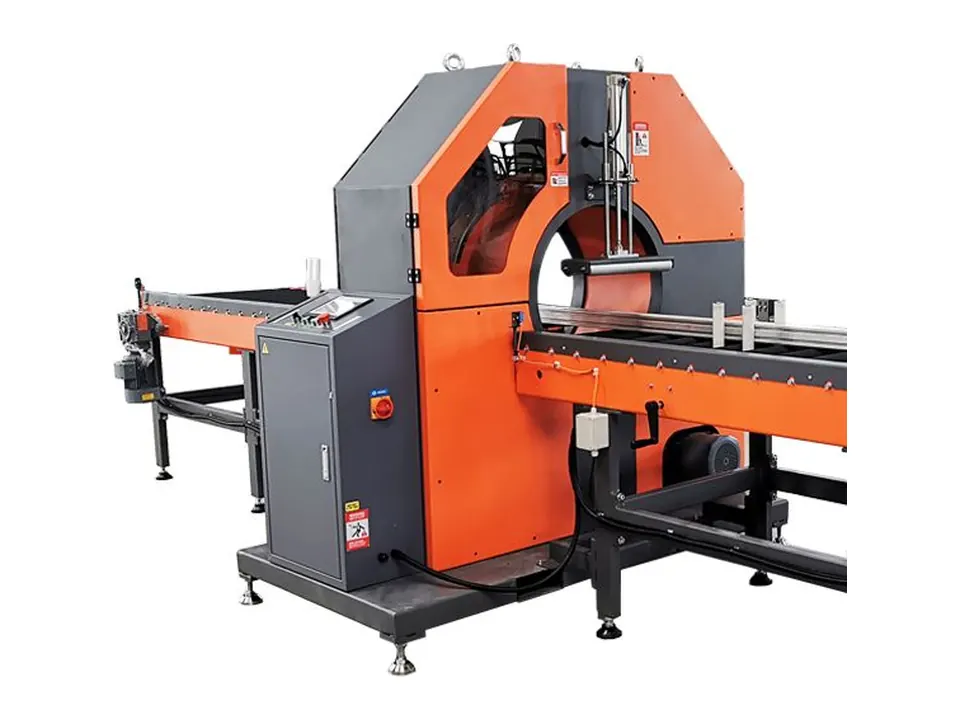

Horizontal Fully Automatic Pallet Stretch Wrapping Machine

Fully Automatic Horizontal Wrapping Machine uses LLDPE stretch film as the main packing material to wrap the bulk cargo stacked on the pallet.

The fully automatic horizontal wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, etc.

• Film provides extra support during transportation and storage to protect them from dust, moisture, or damage.
• High efficiency and low electricity consumption, convenient in operation.
• The wrapping type and times can be designed according to customers’ requirements.
• Photoelectric sensor test pallet length automatic
• Programmable control and frequency converter are available.
• PLC control
• Pallet stretch wrapping machine soft start and soft stop.
• Suitable for packing wooden, aluminum, pipe, and all long products
• Fully automatic cut and clamp film
• Get a Free Quote

Inline Fully Automatic Pallet Wrapping Machine

High efficiency, Automatic Operation, and low electricity consumption, convenient in operation, saves labor costs.

The wrapping type and times can be designed according to customers’ requirements. 3. Photoelectric sensor test pallet height automatic 4. Durable stainless steel conveyor 5. Pre-stretch ratio: 300% 6. A programmable control and frequency converter is available. 7. PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment. Variable lift speed/ film tension control. Film up/down controls. 8. Pallet stretch wrapping machine soft start and soft stop. 9. Suitable for the production line

• Automatic Stretch Wrapper Features
• max load 3000 kg
• Get a Free Quote

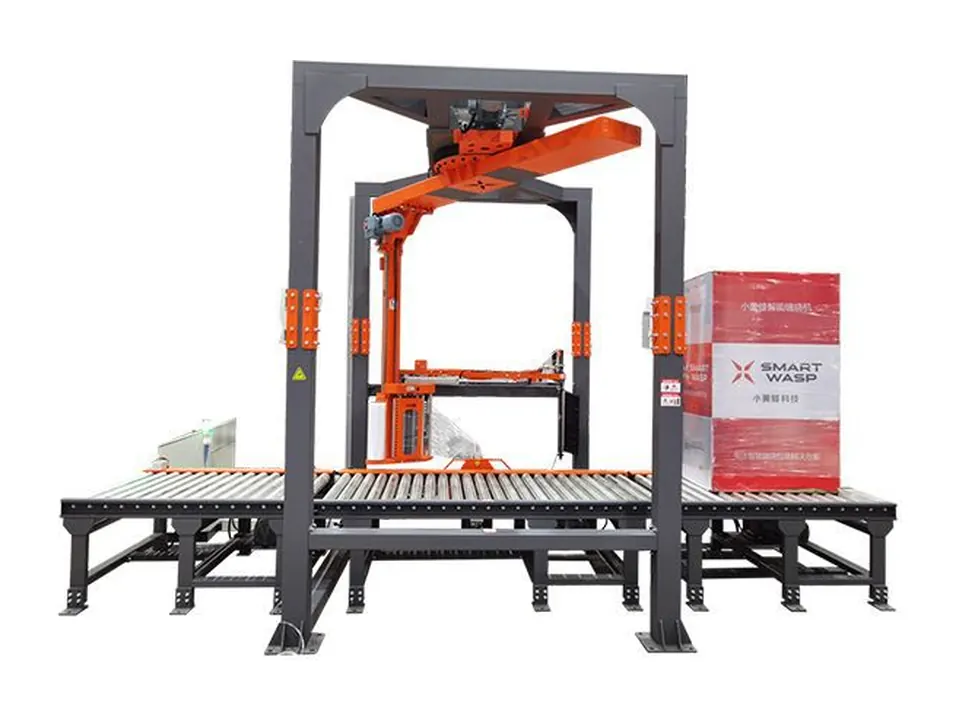

Rotary Arm Fully Automatic Pallet Wrapping Machine

• Wrapping speed from 30-35 pallet /H
• Automatic top sheet dispenser optional
• Automatic paper corner fixer optional
• Auto cutting and clamping film
• SEW & SIEMENS motor drive system
• Main Features
• Get a Free Quote

Ring Type High Speed Fully Automatic Pallet Wrapping Machine

Pallet stretch wrapping machine uses LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet.

The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, etc.

• Ring Wrapping Machine Application
• Film provides extra support during transportation and storage to protect them from dust, moisture, or damage.
• Automatic Pallet Wrapper Main Features
• High efficiency and low electricity consumption, convenient in operation.
• The wrapping type and times can be designed on customers’ requirements.
• Photoelectric sensor test pallet length automatic.
• Programmable control and frequency converter is available.
• PLC control.
• Pallet stretch wrapping machine soft start and soft stop.
• 7 . Fully automatic cut and clamp film.
• Get a Free Quote

Robot Wrapping Machine

• Get a Free Quote

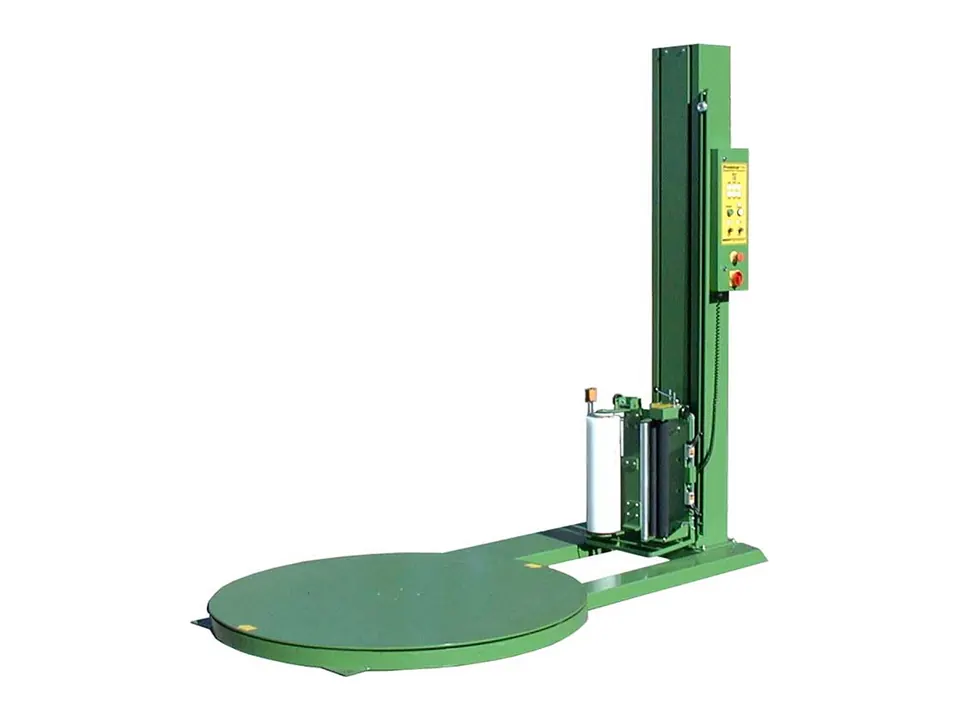

Predator SS LP Stretch Wrap System

For businesses requiring a low-profile system, it is optimized for pallet jacks, making loading and unloading a breeze. Its design is well-suited for dry areas, ensuring safety and performance.

Low Profile (LP) pallet wrapping machines are best suited for dry areas where the primary means of loading is with a pallet jack. These machines typically sit directly on the workspace floor and have a very low-profile turntable, typically less than 4 inches off the floor. With a ramp option, it is very easy to load the turntable with a pallet jack. Low profile stretch wrapping equipment can be moved easily to different areas by forklift but can only be lifted from the control end.

• Get a Free Quote

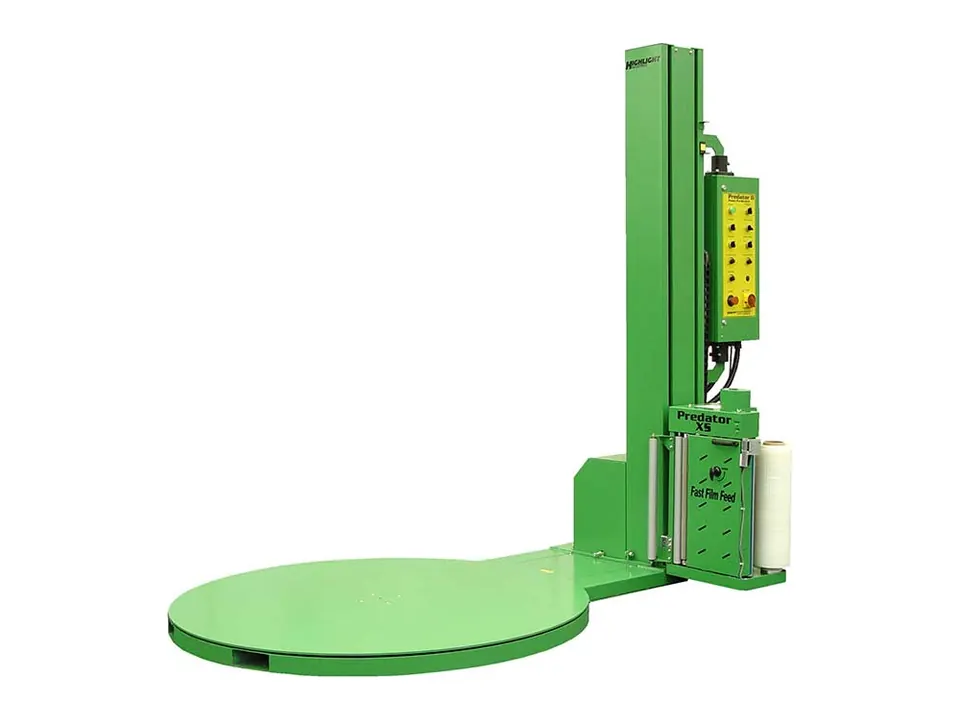

Predator XS Stretch Wrap System

If you’re looking for even more advanced features, it comes equipped with automatic film cutting and adjustable pre-stretch gears, maximizing efficiency and reducing waste. This model is perfect for high-volume operations where speed and precision are essential.

All Busch Machinery stretch wrap systems are built for durability and performance, ensuring reliable operations in various industries. Whether you need a semi-automatic option for moderate needs or an advanced system for higher production volumes, Busch has you covered.

The Predator XS is packed with more features that deliver more performance than any other stretch wrap machine in the market. Select Stretch gives you the ability to change the pre-stretch gears from 250% to 200% in less than a minute. The automatic film-cutting system saves the operator time by automatically cutting the film at the end of the wrap cycle. The Predator XS will wrap your product at the lowest possible cost with maximum performance.

• Ready to enhance your packaging efficiency? Explore these machines and find the perfect solution today!
• Get a Free Quote

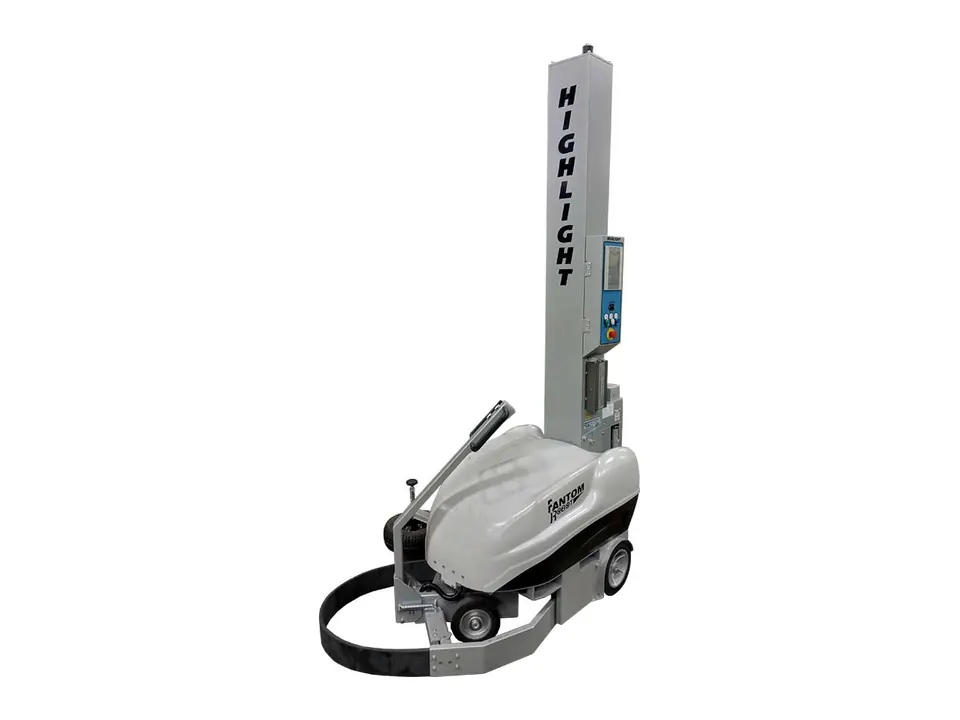

Fantom Robot Stretch Wrapper

The Fantom Robot Self-Propelled Stretch Wrap System gives you the flexibility to wrap loads anywhere in your facility without sacrificing consistency and film savings. The semi-automatic controls make wrapping varying sized loads simple and easy. The Fantom Robot’s mobile design allows it to be brought to unstable loads, preventing the need to move them unwrapped. The self-propelled load tracking design means that products of any weight, length, or width can be wrapped simply . The Fantom Robot’s Select Stretch feature is located on top of the carriage and allows the operator to quickly change the stretch percentage between 230% and 270%. Automatically cutting the film at the end of the wrap cycle improves productivity by up to 30%. The on-board battery pack allows you to wrap 200-300 loads on a single charge, enough to run all day in most applications. A 4-battery upgrade is available to double output. Once your pallets are set up with your desired wrap pattern, those settings will reside in a section that requires a password to change. The operator gets access through pushbuttons and selectors for start and stop operations and basic front panel operations. This allows for consistency in wrapping from pallet to pallet. The front panel also features a Battery Gauge, so operators have a visual indicator of power status and when a battery charge is required. The system also includes 3 programmable wrap patterns.

• Get a Free Quote

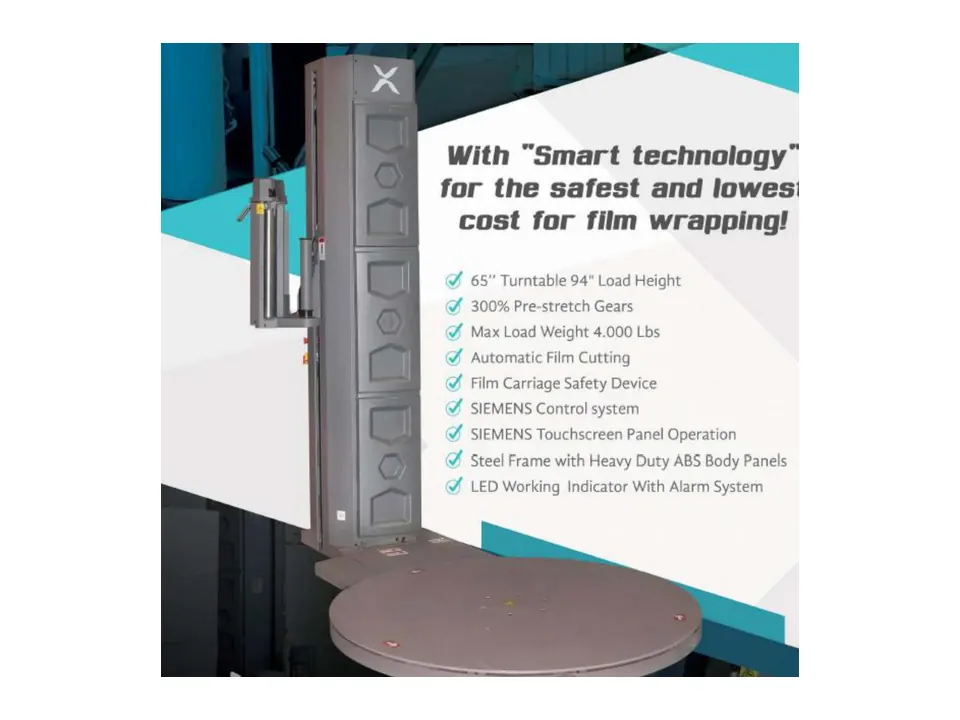

X1 Semi Automatic Stretch Wrapper

Features: Available with Up to 300% Prestretch Gears Adjustable Film Tension Automatic Film Laser Cut-off Film Brake Alarm 7” Siemens Touch Screen Control Panel Steel Frame with Heavy Duty ABS Panels CE Certified Safety Standard 1 Year Complete Warranty, 3 Years All Electrical Parts

• Specifications: Low Profile Stretch Wrapper for 15-25 Loads
• Per
• Hour
• Turntable
• Speed: 0-13 RPM
• Adjustable
• Drive: 1HP
• Chain
• Drive
• Size: 65”
• Diameter
• Support: Double
• Nylon
• Rollers
• Load
• Capacity: 4,000
• Lbs.
• Height
• Max: 94”
• Film
• Delivery
• System: 300%
• Prestretch
• Width: 20”
• Max: 9.5”
• Power: 110V, 50/60 Hz, 10
• Amps
• Dimensions: L111” x W71” x H105”
• Weight: 1,760 Lbs.
