Weighing & Inspection

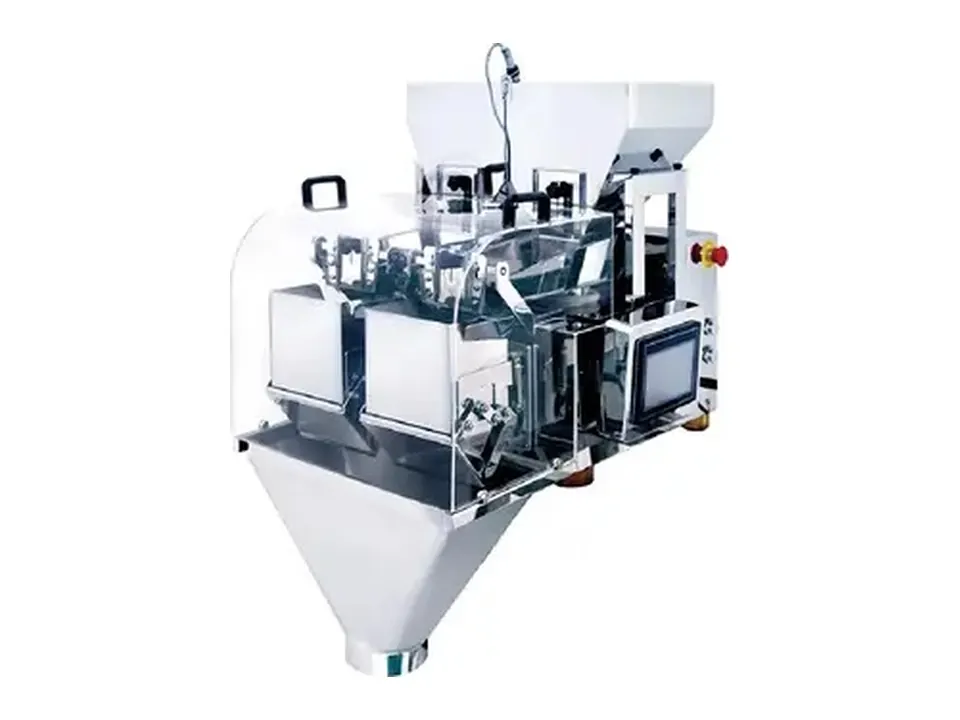

Precision Linear Weigher

The linear weigher is perfect for precise, quantitative weighing of powdery and small granular materials such as white sugar, salt, monosodium glutamate, chicken essence, milk powder, coffee, seasoning powder, and more. Available in up to 5 different specifications, this linear scale offers a maximum weighing speed of up to 70 bags per minute, making it the top choice for accurately weighing powdery materials in high-speed production environments.

• Model: BM-AX1, Ax2, AXM2, Ax4,
• AS4
• Weighing
• Range: 20-3000g
• Max
• Speed: 30 P/M 100 Program
• Capacity
• Hopper
• Volume: o.5-15L
• Products
• Mixed: 1-4 7” Touch Screen S.S. Frame Standard Flat Linear Pan
• Dimple Plate Timing Hopper Reject Device Printer S.S. Stand
• Get a Free Quote

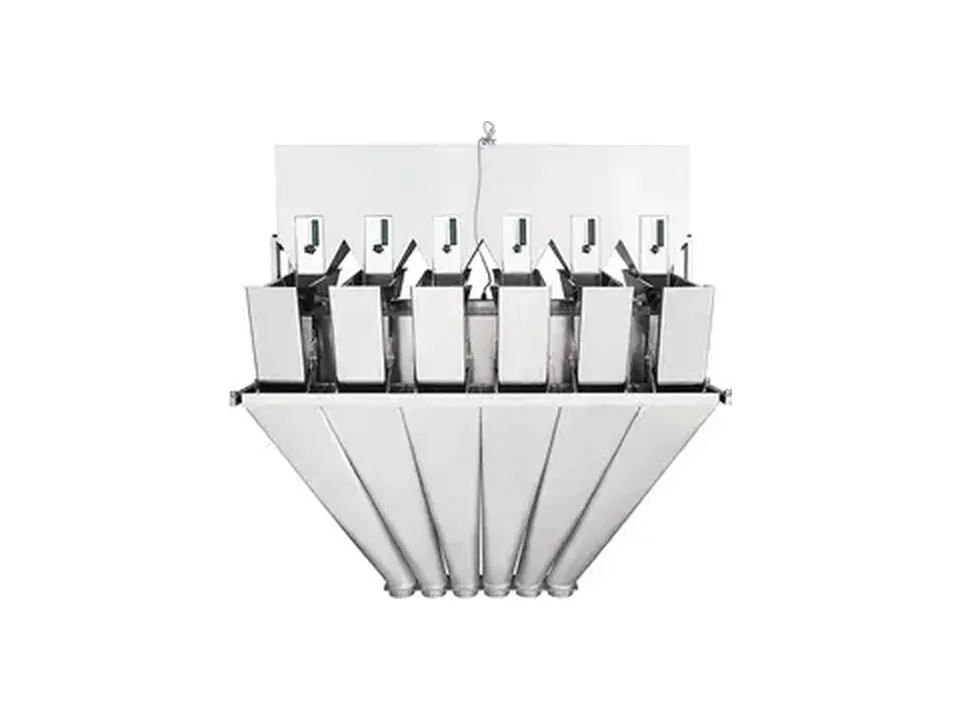

6-Head Linear Weigher

The 6-Head Linear Weigher is designed for accurate quantitative weighing of granules and powders like sugar, salt, seeds, rice, milk powder, coffee, and seasoning powders. It features a modular control system, adjustable amplitude, and stepless feeding for real-time flow control, ensuring precise weighing. Made from food-grade stainless steel, it ensures hygiene and safety. With a pneumatic gate for precise material flow, easy-to-remove parts for cleaning, and custom load cells for accuracy, it’s ideal for efficient, high-precision weighing and packing.

• BM-AX6
• Weighing
• Range: 50-3000g
• Max
• Speed: 54 P/M 100 Program
• Capacity
• Hopper
• Volume: 3L 7” Touch Screen S.S. Frame Standard Flat Linear Pan 220V, 60Hz, 900W, 4A
• Dimple Plate Timing Hopper Reject Device Printer S.S. Stand
• Get a Free Quote

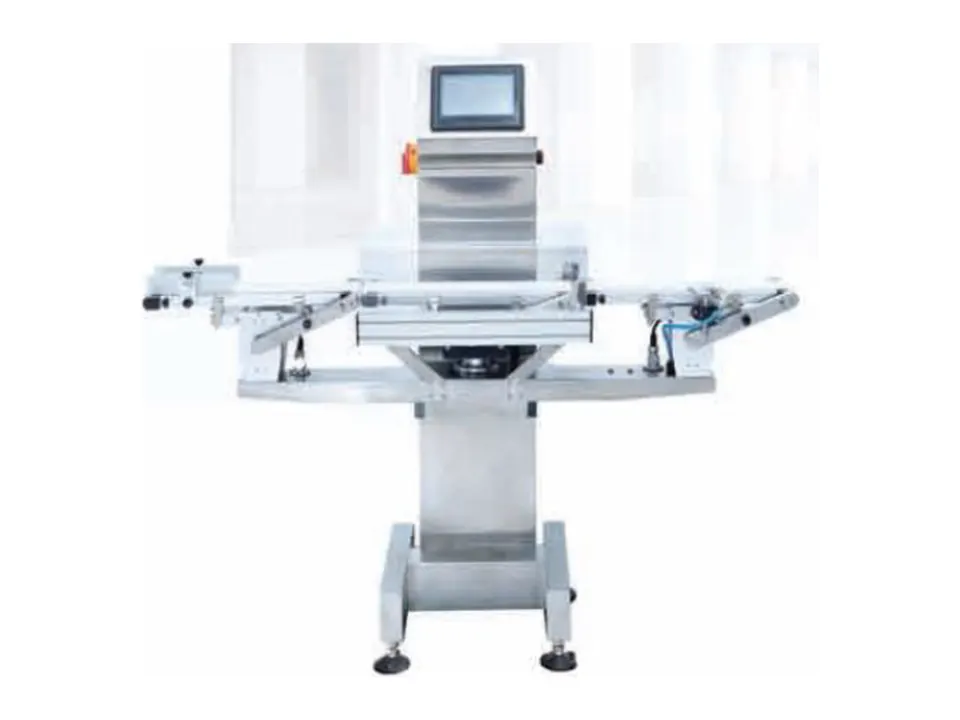

Check Weigher

The 200g High Precision Check Weigher is used to check whether the weight of a single product matches the set target, and the sorting device automatically rejects substandard products. The new high-integrated modular control system provides comprehensive production quality statistics, including various data, weight distribution column charts, qualified package numbers, pass rates, production times, etc.

• BM-C200
• Weighing
• Range: 5-200g
• Max
• Speed: 150
• PCS
• Belt
• Speed: 80M/min
• Reject
• Air
• Blowing
• Width: 100mm
• Size: 450Lx100Wmm 220V, 60Hz, 400W
• Get a Free Quote

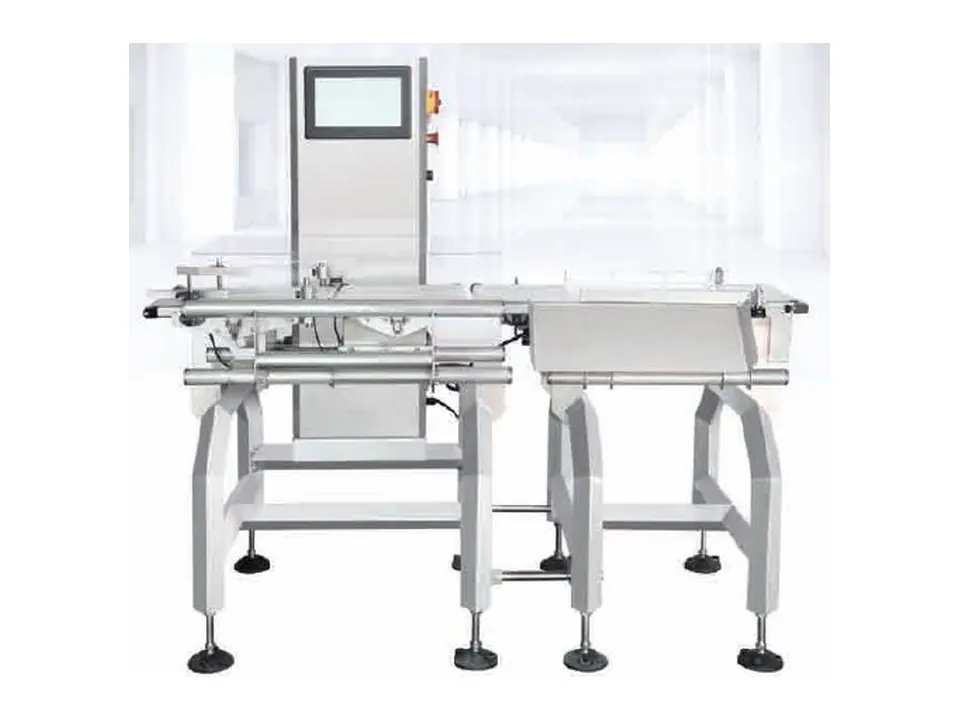

High-Speed Check Weigher

The BM-C2000 High-Speed Check Weigher is applicable to electronic, pharmaceutical, food, beverage, health products, daily chemical, light industry, agricultural and sideline products, and other industries. It is suitable for box, bag, and weight selection of single material with length and width less than 300x200mm, height less than 115mm, and weight of 50~2000g. The horizontal height of the conveyor line can be adjusted in the range of (750-850). It provides comprehensive production quality statistics, including weight by column chart, total production weight, number of qualified packages, qualified rate, number of unqualified packages, the actual weight of unqualified products, and production time.

• Model: BM-C2000 10.1”
• Touch
• Screen
• Weighing
• Range: 100-2000g
• Max
• Speed: 90
• PCS
• Belt
• Speed: 52M/min
• Reject
• Air
• Blowing
• Width: 100mm
• Size: 450Lx100Wmm 220V, 60Hz, 600W, 3A
• Get a Free Quote

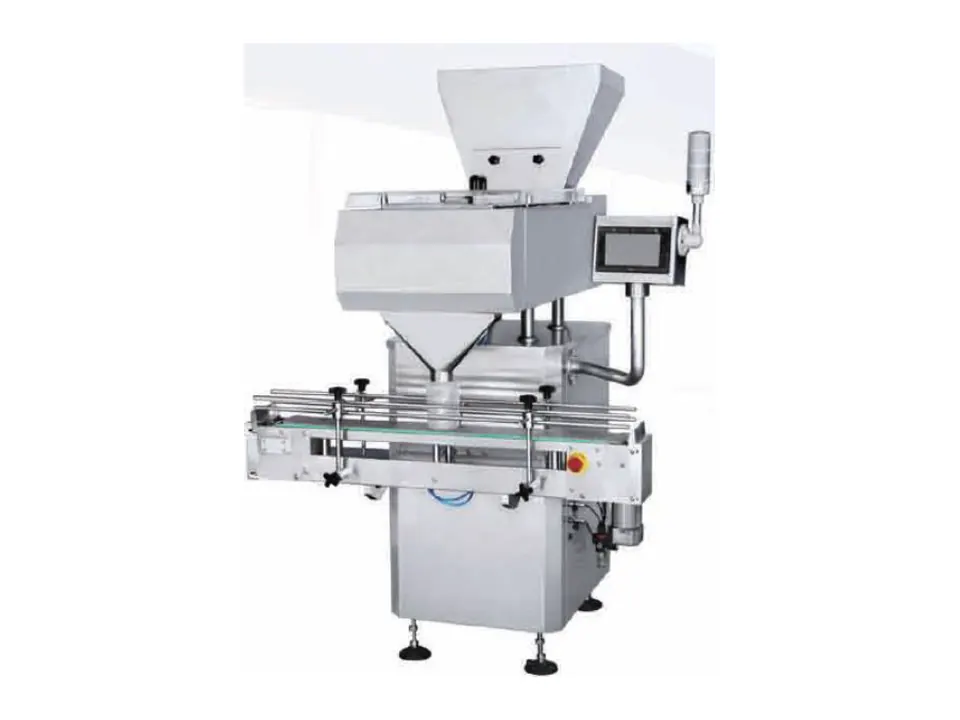

8 Lane Electronic Counting Machine

The model 8S Multi-Channel Counting Machine bottle conveyor mechanism utilizes a bottle stopper device on the bottle track to halt bottles transferred from the previous equipment at the filling position, awaiting filling. Products are orderly fed into the medicine chamber via the vibration of the corrugated feeder plate. The chamber is equipped with a counting photoelectric sensor; the products that fall into the chamber are quantitatively counted by this sensor before being filled into the bottles at the filling position.

• Get a Free Quote
• Strong compatibility: Capable of counting and bottling solid dosage forms or granules, including tablets (including shaped tablets), capsules, softgels (transparent and opaque), and pills.
• Vibratory feeding: Features 8-channel uniform vibratory feeding, a unique flap dividing mechanism for material discharge, ensuring even and stable output without damaging the medicines.
• High dust resistance: Utilizes the high dust-resistant photoelectric sensing technology, ensuring stable operation even in dusty environments.
• Accurate counting: The photoelectric sensors provide automatic counting, with a bottling error rate lower than the national standard.
• Specially designed leak-proof nozzle to prevent clogging, enabling rapid bottling even for bottles with small openings (optional).
• High degree of intelligence: Equipped with multiple detection and alarm control functions, including no-bottle-no-count and self-diagnosis for faults.
• Functional support: Automatic detection of bottle shortage by photoelectric sensors, with automatic shutdown.
• Simple operation: Intelligent design allows for setting various operational parameters as needed.
• Easy maintenance: Simple training is required for operators, and disassembly, cleaning, and replacement of parts are straightforward and tool-free.
• Sealed and dust-proof: Equipped with a dust box to reduce dust pollution (optional).
• 00~5# Capsules, Softgels
• Φ3-22 Plain Tablets, Shaped Tablets, Coated Tablets
• Φ3～20 Pills
• Speed: 10-40 BPM
• Lanes: 8
• Bottle Diameter 20-100mm
• Bottle Height: 40-180mm
• Hopper Volume: 16L
• Power: 220VAC, 60Hz, 0.8KW
• Gas Consumption: 0.6 Mpa
• Dimensions: 1560x1530x1700mm
• Weight: 480 KG

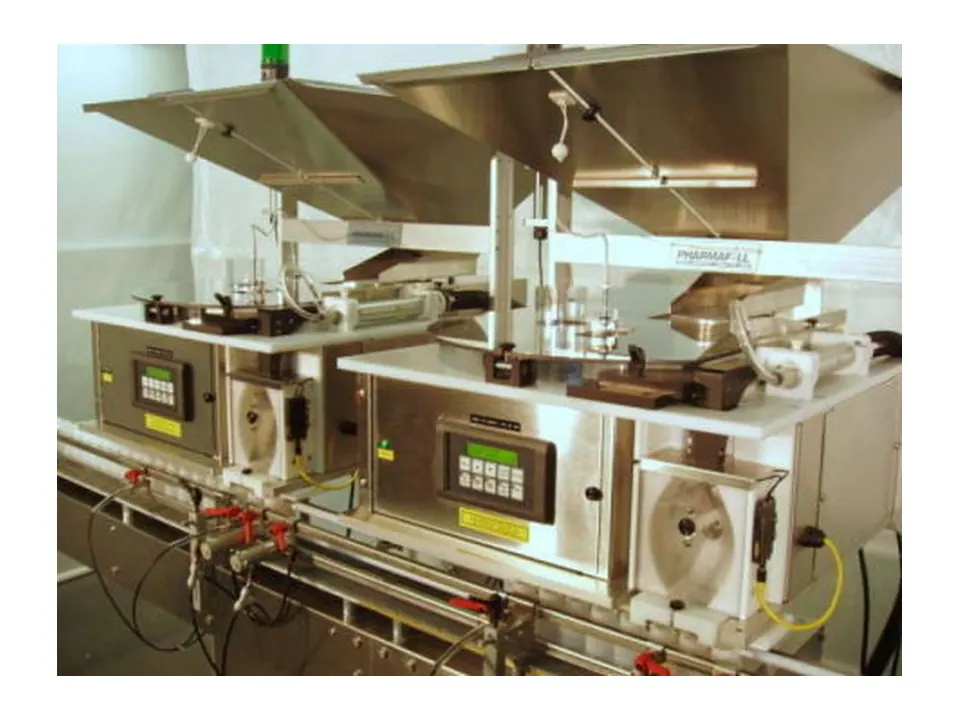

BMT-C3 Automatic Tablet Counter

The BMT-C3 automatically counts every type of solid oral dosage form at speeds up to 2,500 per minute with an unprecedented accuracy of 99.99%. Its proprietary counting sensor recognizes opaque, translucent, and transparent pills, even with center holes and odd or elongated shapes to ensure the exact quantity required is filled - and no double counts. Just select the quantity per bottle and press start using the touch-screen HMI. It’s easy to use, quick to changeover, and proven as a dependable workhorse in non-stop, unattended operation.

Variable Speed Vibratory Feeder Chute Air Guide System Touch Screen HMI Stainless Steel Product Contact Areas Height Adjustment to Match Conveyor Height Upstream Problem Detection Stops Process No Change Parts Needed for Product Changeovers Comes Mounted on Casters and Leveling Pads

• Get a Free Quote
• Counts tablets, capsules, gelcaps, caplets, lozenges, softgels, candies
• Up to 2,500/minute, 60 bottles/minute
• Max oral dose size .9” x .9” x .4”
• Bottles up to 10” in height
• Narrow footprint 25” wide x 37” deep
• Needs only 36” of conveyor
