Check Weighers & Metal Detectors

Check Weigher

The 200g High Precision Check Weigher is used to check whether the weight of a single product matches the set target, and the sorting device automatically rejects substandard products. The new high-integrated modular control system provides comprehensive production quality statistics, including various data, weight distribution column charts, qualified package numbers, pass rates, production times, etc.

• BM-C200
• Weighing
• Range: 5-200g
• Max
• Speed: 150
• PCS
• Belt
• Speed: 80M/min
• Reject
• Air
• Blowing
• Width: 100mm
• Size: 450Lx100Wmm 220V, 60Hz, 400W
• Get a Free Quote

High-Speed Check Weigher

The BM-C2000 High-Speed Check Weigher is applicable to electronic, pharmaceutical, food, beverage, health products, daily chemical, light industry, agricultural and sideline products, and other industries. It is suitable for box, bag, and weight selection of single material with length and width less than 300x200mm, height less than 115mm, and weight of 50~2000g. The horizontal height of the conveyor line can be adjusted in the range of (750-850). It provides comprehensive production quality statistics, including weight by column chart, total production weight, number of qualified packages, qualified rate, number of unqualified packages, the actual weight of unqualified products, and production time.

• Model: BM-C2000 10.1”
• Touch
• Screen
• Weighing
• Range: 100-2000g
• Max
• Speed: 90
• PCS
• Belt
• Speed: 52M/min
• Reject
• Air
• Blowing
• Width: 100mm
• Size: 450Lx100Wmm 220V, 60Hz, 600W, 3A
• Get a Free Quote

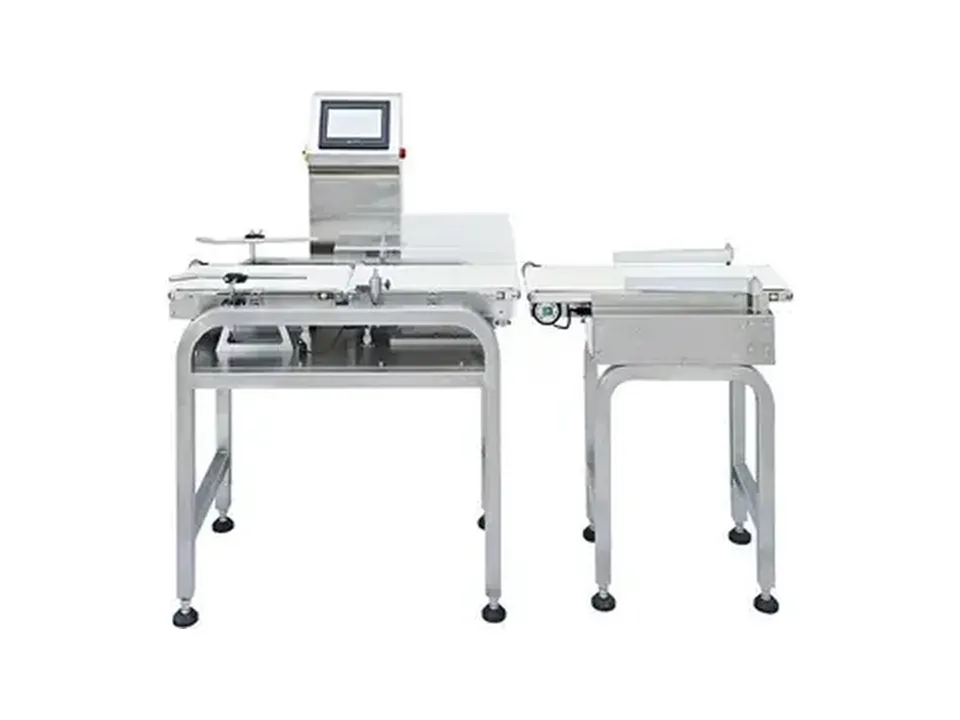

Automatic 1000g Belt Conveyor Checkweigher

Discover the Automatic 1000g Belt Conveyor Checkweigher, designed for accuracy in the food industry. This advanced checkweigher system ensures precise weight control, while the robust checkweigher conveyor supports efficient production lines.

• Model: BM-C1000 7”
• Touch
• Screen
• Weighing
• Range: 10-1000g
• Max
• Speed: 80
• PCS
• Belt
• Speed: 52M/min
• Reject
• Method: Air Blowing/Pneumatic
• Pusher/Slide
• Type
• Size: 450Lx220W mm 220V, 60Hz, 800W, 2A
• Get a Free Quote

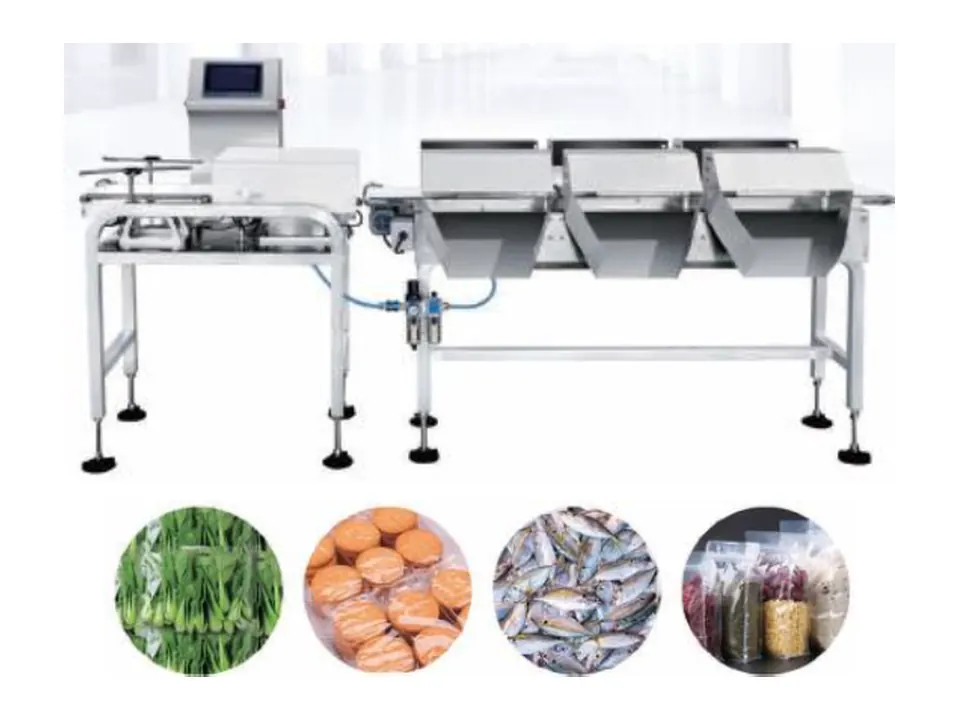

Multi-level Check Weigher

The BM-C1000 Multi-level Reject Sorting Weigher is built for direct aquatic seafood check weighing. Affordable and high quality, this checkweigher has multiple levels of choice, using high-precision sensors for accurate weighing. The sorting speed is fast, and the dry check weighing scale can select the sorting level according to the needs of the user, from single-item elimination to multi-level sorting.

• Model: BM-C1000 7” Touch Screen PLC
• Control
• System
• Weighing
• Range: 100-1000g
• Max
• Speed: 100
• PCS/min
• Belt
• Speed: 62M/min
• Reject
• Method: Air Blowing/Air-reject/Pneumatic
• Pusher
• Width: 220mm
• Size: 450Lx220Wmm 220V, 60Hz, 400W, 2A
• Get a Free Quote

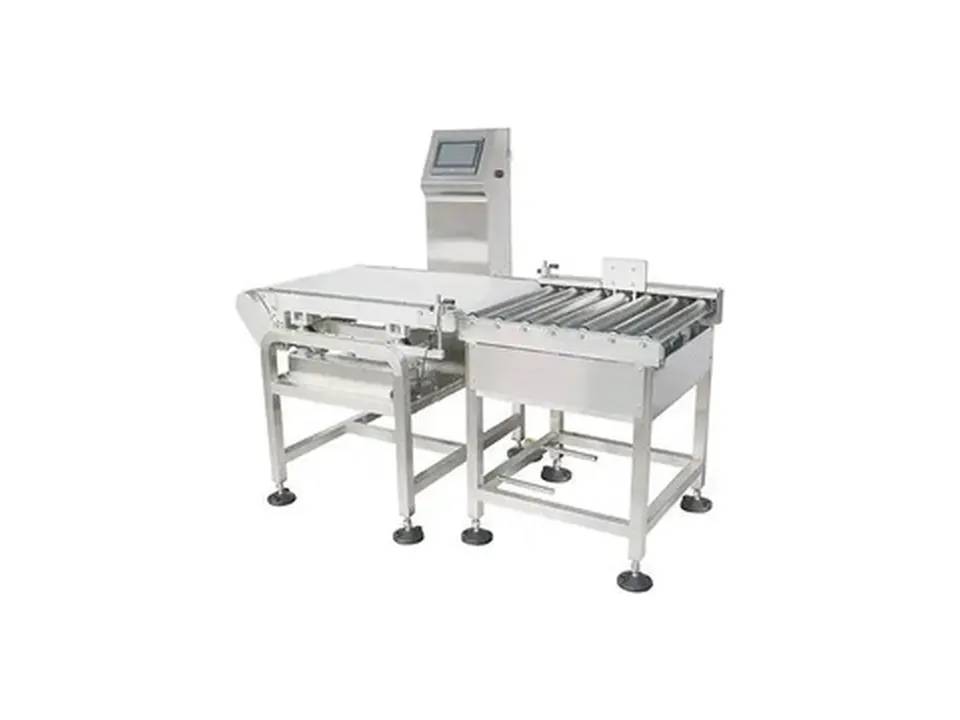

30 Kg Check Weigher

The BM-C30000 sorting checkweigher is designed to move products using conveyor belts or rollers, ensuring accurate weight control in manufacturing and packaging lines. This high-precision checkweigher automatically verifies whether each product falls within the specified weight range, helping to eliminate underweight or overweight items before they reach the market.

With a maximum inspection weight of 30 kg, it offers a wide weighing range, high speed, and consistent accuracy. Ideal for bulk paper bags, plastic bags, cartons, metal film packaging, and other rigid packages, this checkweigher system supports both belt and roller transport options. As a reliable tool for quality assurance, it provides stable performance and is widely used across various industries for efficient weight checking.

• BM-C3000
• Weighing
• Range: 5000-30000g
• Accuracy: 5Kg:±5g / 15Kg:±10g / 30Kg:±20g
• Max
• Speed: 30
• PCS
• Belt
• Speed: 35 m/min
• Reject
• Pneumatic
• Pusher
• Width: 500mm
• Size: 850Lx500Wmm
• Control
• Panel: 7″ Touch Screen 220V, 60Hz, 600W, 3A
• Get a Free Quote

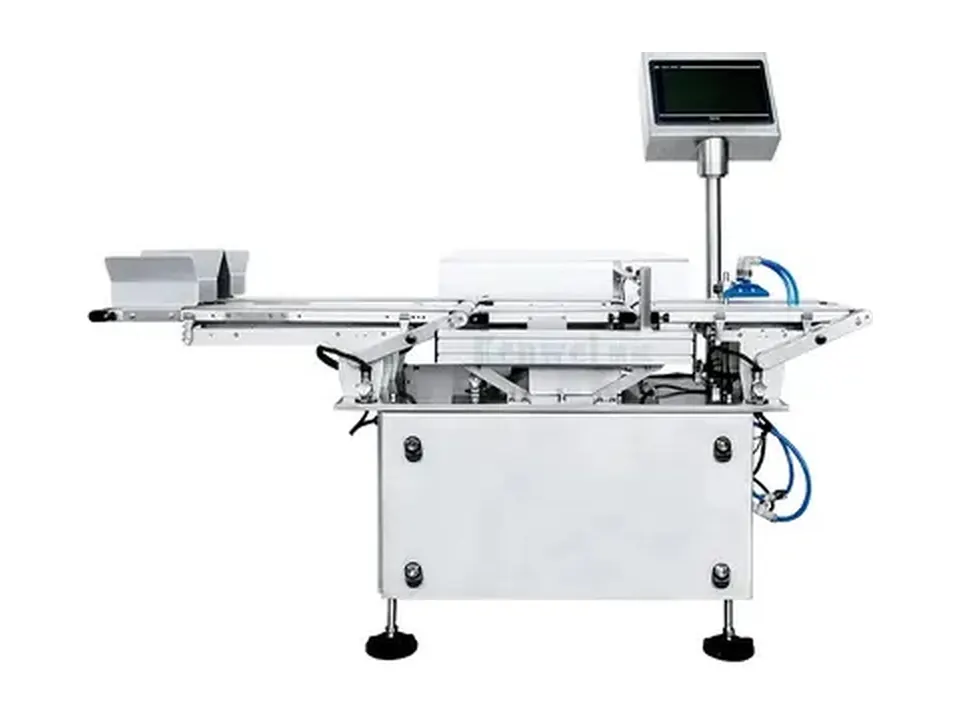

Double-Lane Check Weigher

The equipment is equipped with two independent conveyor lines, which do not interfere with each other in measurement. It adopts a new modular control system with an accuracy of up to 0.2g and a fault alarm text prompt. The conveyor structure is designed to be easily disassembled for easy cleaning and maintenance. At the same time, it provides comprehensive production quality statistics, including weight distribution bar graphs, total weight, number of qualified packages, qualified rate, number of unqualified packages, and corresponding time, etc., to improve production management efficiency.

• Model: BM-C200(C6
• Double)
• Weighing
• Range: 5-200g
• XIII(1)
• Max
• Speed: 140
• PCS
• Belt
• Speed: 20 m/min
• Reject
• Air
• Blowing
• Size: 320L x 100W mm
• Control
• Panel: 10.1″ Touch Screen 220V, 60Hz, 800W, 4A
• Get a Free Quote

Combined Check Weigher and Metal Detector

Combined Checkweigher and Metal Detector for food industrial weighing and sorting ensures precise weight control and superior safety. This advanced food metal detector integrates high-speed check weighing, delivering accuracy and reliability for quality assurance.

• Model: BM-GC212/GC215/GC315/GC320
• Max
• Belt
• Speed: 32-52 m/min
• Reject
• Method: Air Blowing/Arm-reject/Pneumatic Pusher/Slide
• Type
• Max package size(Width): 300mm
• Max package size(Height): 120mm
• Sensitivity(Fe): 0.8mm
• Sensitivity(SUS): 1.5mm
• Get a Free Quote

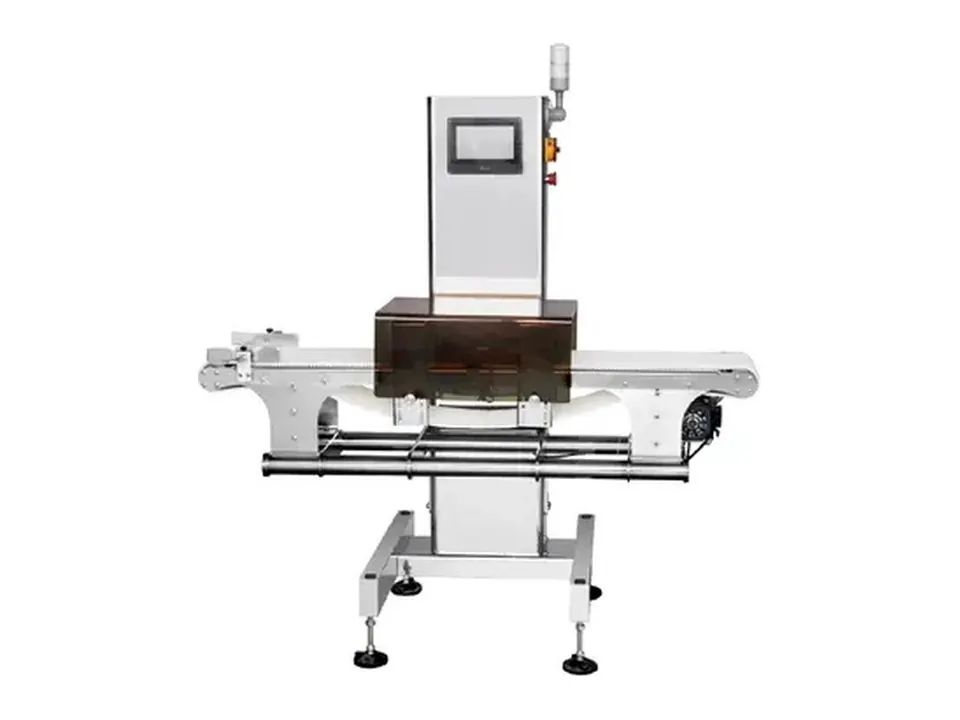

Metal Detector for Aluminum Foil

The 2415 Metal Detector for Aluminum Foil is equipped with high-sensitivity sensors that effectively filter out signals from aluminum packaging, ensuring precise detection of magnetic metal contaminants. Ideal for detecting foreign bodies in aluminum foil-packaged items such as coffee bags, peanuts, dried meats, chocolate, and more. This versatile metal detector offers adjustable settings, with a maximum width of 24mm and height ranging from 20-150mm, making it suitable for a wide variety of aluminum foil packaging applications.

Enhance food safety with the Dropped Metal Detector for Powder Granules. This advanced food metal detector ensures precise detection in the food industry, safeguarding products and maintaining high-quality standards throughout processing.

• Model: BM-GL2415/GL4015
• Max
• Belt
• Speed: 15-35 m/min
• Max package size(Width): 24mm
• Max package size(Height): 20-150mm
• Sensitivity(Fe): 1.5mm
• Sensitivity(SUS): 2.5mm
• Get a Free Quote
• Model: BM-GX80/GX-120/GX150/GX200/GX250
• Control
• Panel: 7″
• Checking
• Diameter: 80-250mm
• Sensitivity(Fe): 0.8-2.5mm
• Sensitivity(SUS): 2.0-3.5mm

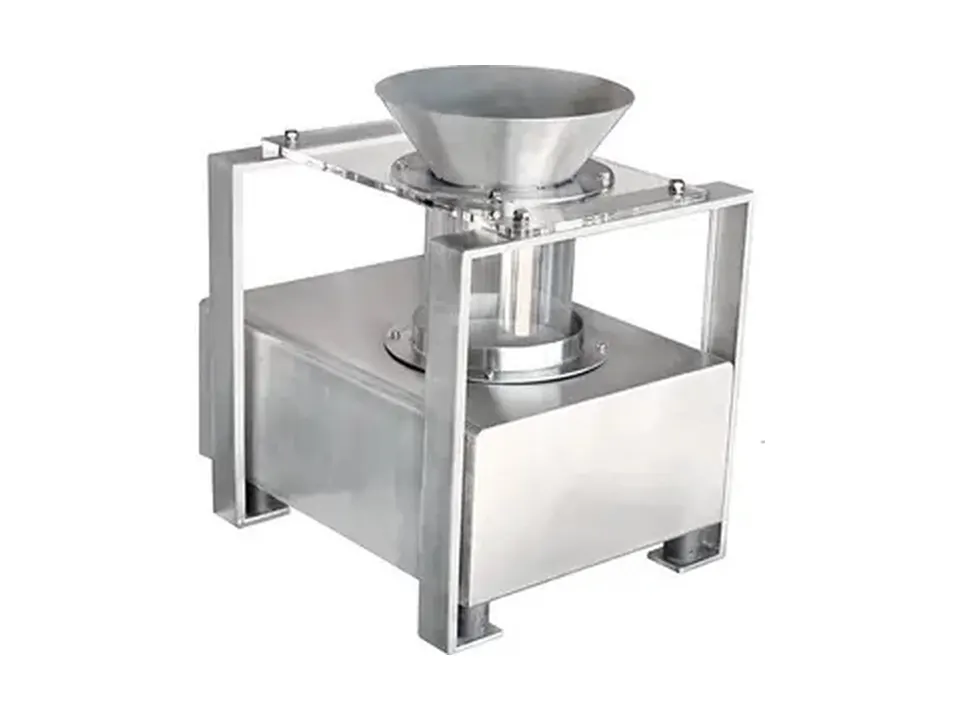

Drop-Through Metal Detector for Powder

Enhance food safety with the Dropped Metal Detector for Powder Granules. This advanced food metal detector ensures precise detection in the food industry, safeguarding products and maintaining high-quality standards throughout processing.

• Model: BM-GX80/GX-120/GX150/GX200/GX250
• Control
• Panel: 7″
• Checking
• Diameter: 80-250mm
• Max package size(Height): 20-150mm
• Sensitivity(Fe): 0.8-2.5mm
• Sensitivity(SUS): 2.0-3.5mm

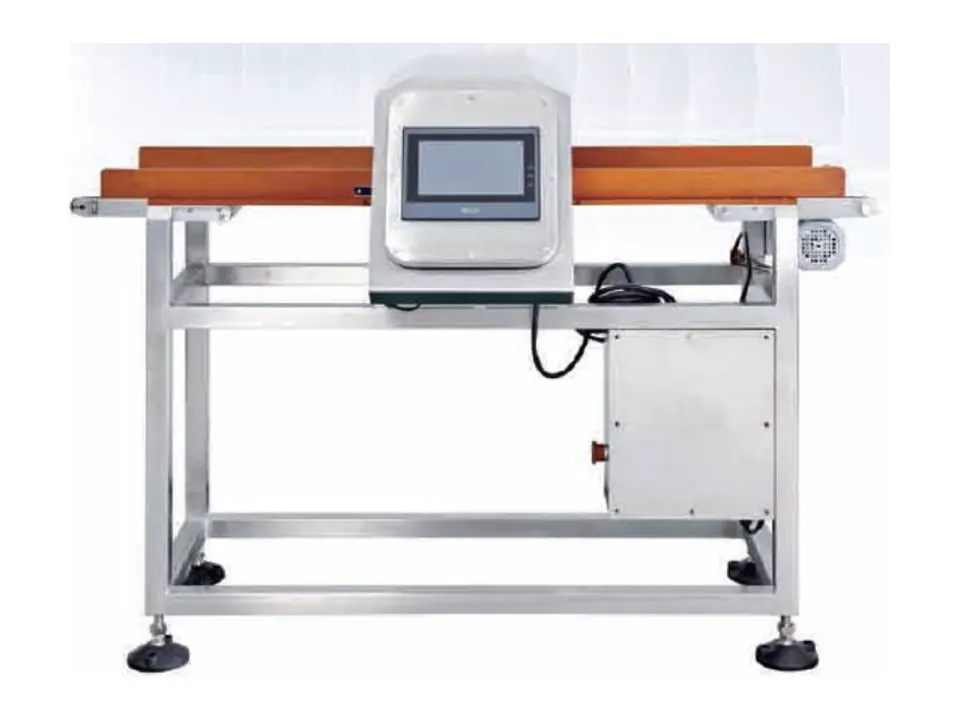

Horizontal Metal Detector

The BM-G3012 Horizontal Metal Detector adopts advanced digital processing technology and can detect both magnetic and nonmagnetic metals in the product. It features a colorful touch screen that is convenient for communication between the operator and computer, high detecting sensitivity and stability, and multiple rejecting devices to choose from.

• Model
• BM-G3012
• Power
• Requirement: 220V/180W/50/60Hz/0.8A
• Gross
• Weight: 200kg
• Max package size (Width): 300mm
• Max package size (Height): 120mm
• Sensitivity (Fe): 0.8mm
• Sensitivity (SUS): 1.5mm
• Speed (m/min): 30m/min
• Get a Free Quote
