Liquid Filling Machines

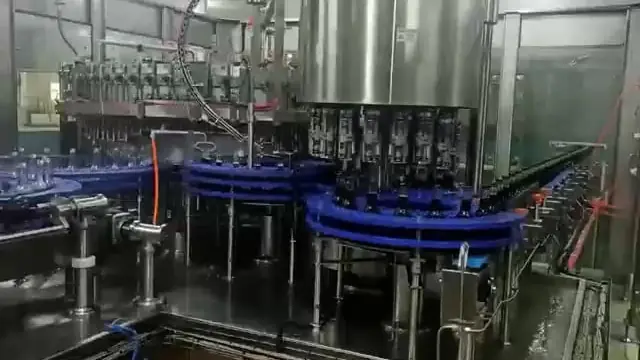

3-in-1 Monoblock Washing Filling Capping Machine for Carbonated Drinks

The machine integrates three functions of bottle flushing, filing, and capping to achieve full automation, which can be applied to various bottle types. The whole machine adopts PLC computer program control and human-machine interface touchscreen buttons and is equipped with alarm devices for lack of caps and overload protection, which can detect and eliminate faults in time, and the degree of production automation is high. There are several models available to meet your specific needs, please contact us for a quote!

• Get a Free Quote

Automatic Gravity Liquid Filling Machine

The gravity-filling machine is suitable for filling all kinds of water-based liquids in the food and drinking industry, like wine, milk, liquor, vinegar, juice, mineral water, etc. It can also fill liquid in the agricultural chemicals industry like liquid fertilizer, liquid pesticide, and liquid insecticide, etc. It is available with 6, 8, 10, 12, 14, 16, 18, and 20 fill heads, for reaching fill speeds between 3000-6000 bottles per hour, based on 500ml fills.

• Touch Screen and PLC Control 316L Stainless Steel Contact Parts Hopper Level Sensor Bottle Position Device
• Get a Free Quote

BUS-250FH Vertical Pneumatic Filling Machine with Heater and Blender

• Filling Speed 20-40 times/minute
• Filling
• Precision: ± 0.5%
• Ranges: 5-60ml, 15-120ml, 60-250ml, 120-500ml, 250-1000ml, 500-2500ml, 500-5000ml
• Air
• Pressure: 5-8
• Mpa
• Power: 220V, 4500W
• Dimensions: 760x650x1650mm
• Weight: 70KG
• Get a Free Quote
• By heating circulating water in the interlayer of the hopper, the machine indirectly heats the material to a constant temperature, and stirs the material to increase the material fluidity, reducing the viscosity of the material so that it can accurately fill material with high viscosity.
• Equipped with quick disassembly and assembly joint for easy cleaning.
• Adopts pneumatic control and good orientation, so the filling accuracy is very high, the highest accuracy can be controlled within ± 0.5%.

Automatic Peristaltic Pump Liquid Filling and Capping Machine

The SF-PEM is a Monoblock filling and capping machine (filling and capping machine together). All stations work on a star wheel which is suitable for small volume bottles. It is commonly used in tube, reagent testing tube, eye drop, e-liquids, essential oil biologic liquid, and some other small bottles and vials, with liquid inner cap pressing and our cap closing in pharmaceutical and other industries.

1 Fill Head, 1 Capping Head 2 Fill Heads, 1 Capping Head 2 Fill Heads, 2 Capping Heads 4 Fill Heads, 2 Capping Heads

• Filling
• Range: 1-30ml (30-100ml is optional)
• Cap
• Type: All kinds of screw caps/ press caps/ aluminum caps
• Method: Peristaltic
• Pump
• Speed: 60-3000 BPH (depends on number of fill heads and capping head)
• Precision: ± 0.5-1% Power 220/380V, 50/60Hz, 15.Kw (custom to your requirements)
• Air
• Pressure: 0.6-0.8 Mpa
• Get a Free Quote

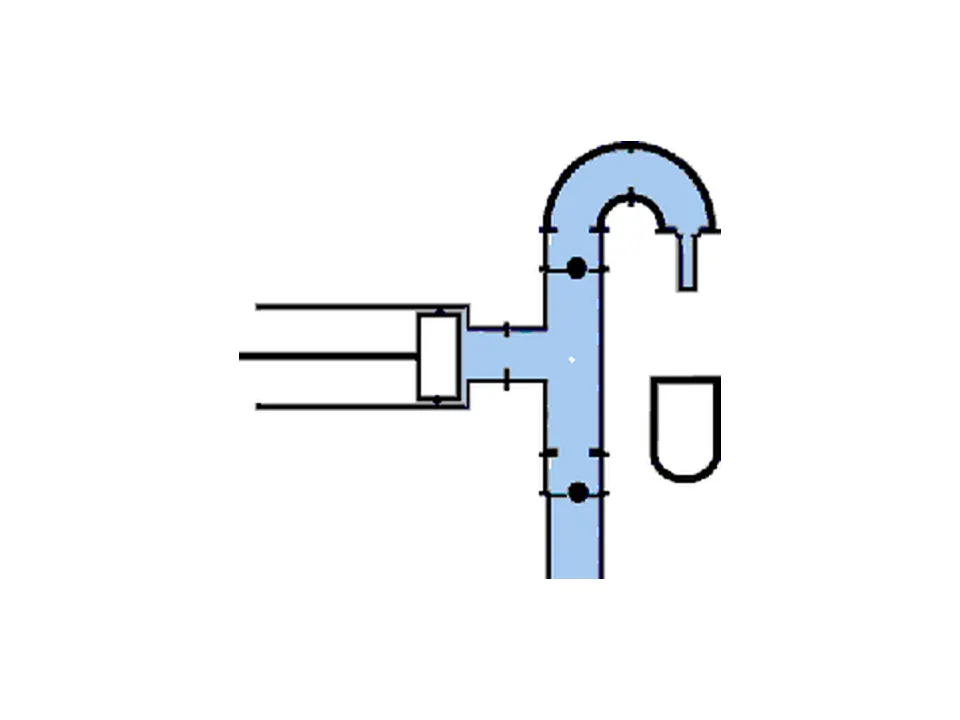

Check Valve Piston Filling Machines

Check Valve Piston Fillers are basically liquid-filling equipment with one-way valves that open and close by the force of the liquid (and maybe some light spring action). On the backstroke, the outlet valve is forced shut while the inlet valve is forced open. On the forward stroke (this fills the bottle) the opposite takes place. One advantage of this type of filler is that it can be self-priming on low-viscosity liquids. Piston filling is among the most accurate types of filling available since it displaces the same volume with every stroke. The limitations of check valve piston filling are that they only handle liquids to a light lotion consistency and will foul if there are any particulates in the solution.

• Get a Free Quote

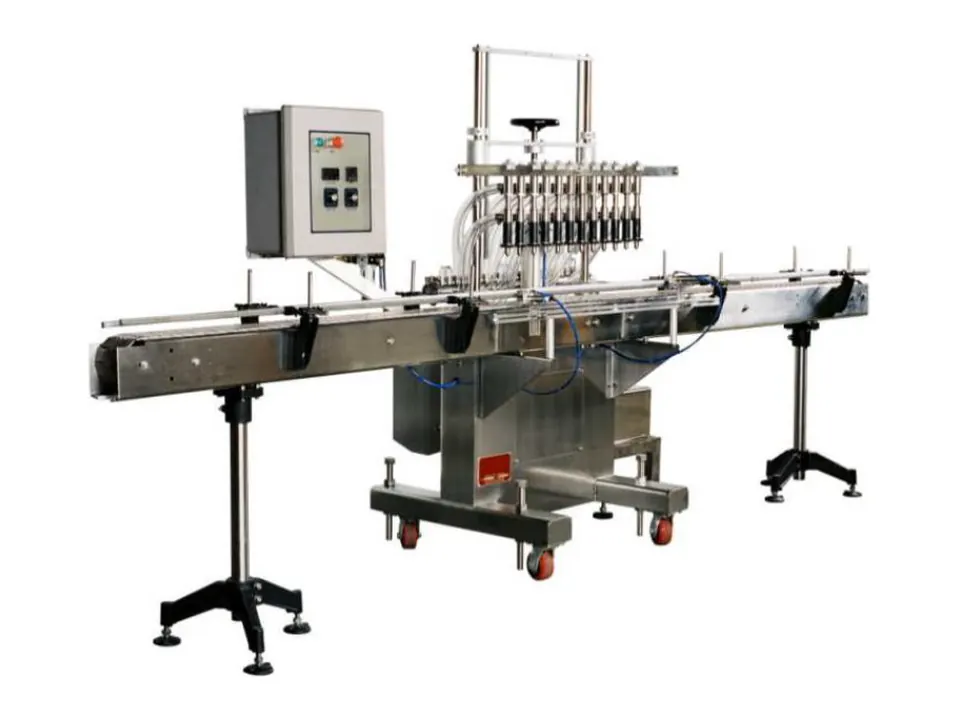

BMGI-3100 Inline Pressure Filler

Pressure Overflow Filling machines have their tanks below the bottom of the bottle. The tank flood feeds a pump (generally a centrifugal pump but also positive displacement pumps for thicker liquids) which then flows directly into the bottle until it reaches the fill level at which point excess product flows directly back into the tank. When filling plastic bottles the pump must be turned off (always for positive displacement pumps) before removing the filling tubes to allow the bottles to return to normal size (they swell under pressure) and drain off excess liquid. The big advantage of pressure fillers is that bottles fill more quickly so fewer heads (and space) are required and higher viscosity products can be filled. The disadvantage is that foamy products must be filled at slower pump speeds than normal, and this will work only if the foam settles out fairly quickly.

• Get a Free Quote
• 304 Stainless steel heavy-duty welded C frame.
• Color touch screen panel
• 7 Job memory
• 20-gallon stainless steel overflow tank.
• Stainless steel cover for overflow tank.
• 20 hose, 304 stainless steel feeding manifold.
• All contact parts are stainless steel, sanitary, Teflon, Viton, and hoses per your requirements.
• Special seals or hoses by order.
• Calibrated guide for fast height changeovers.
• Machine mounted on 4 heavy-duty casters.
• Leveling of machine by 1-inch 304 stainless steel leveling screws.

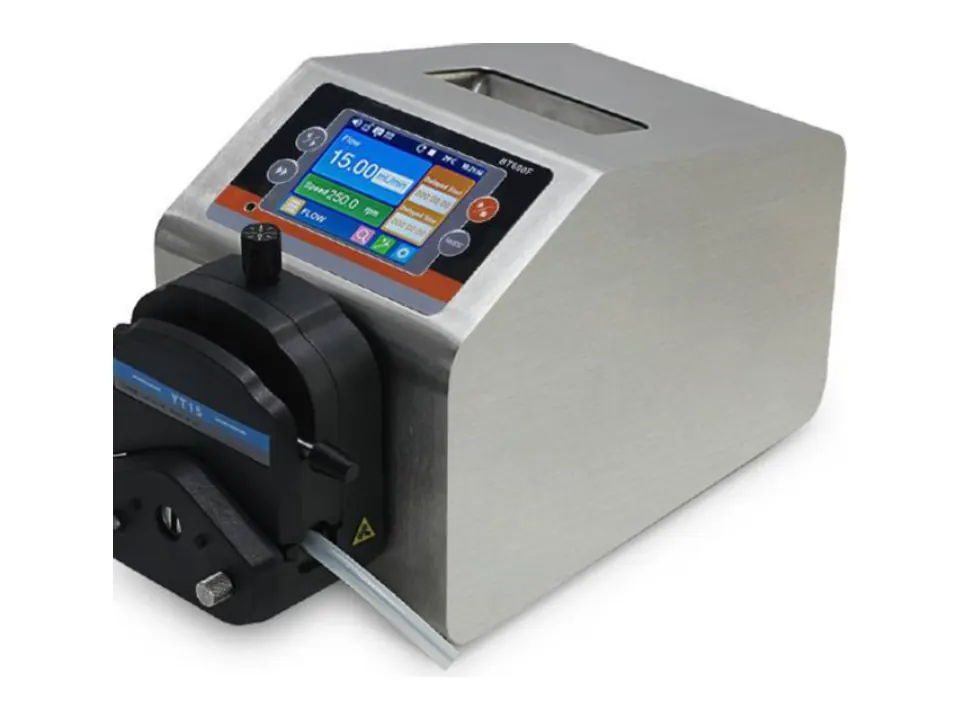

Peristaltic Liquid Dispensing Pump

A Peristaltic Pump works by placing tubing into the pump which then has rotating rollers that alternately squeeze and relax the tubing to force the liquid forward. This type of system works well in pharmaceutical environments or anywhere that you want absolutely no chance of cross-contamination. Simply throw away the tubing at the end of a run.

• Get a Free Quote

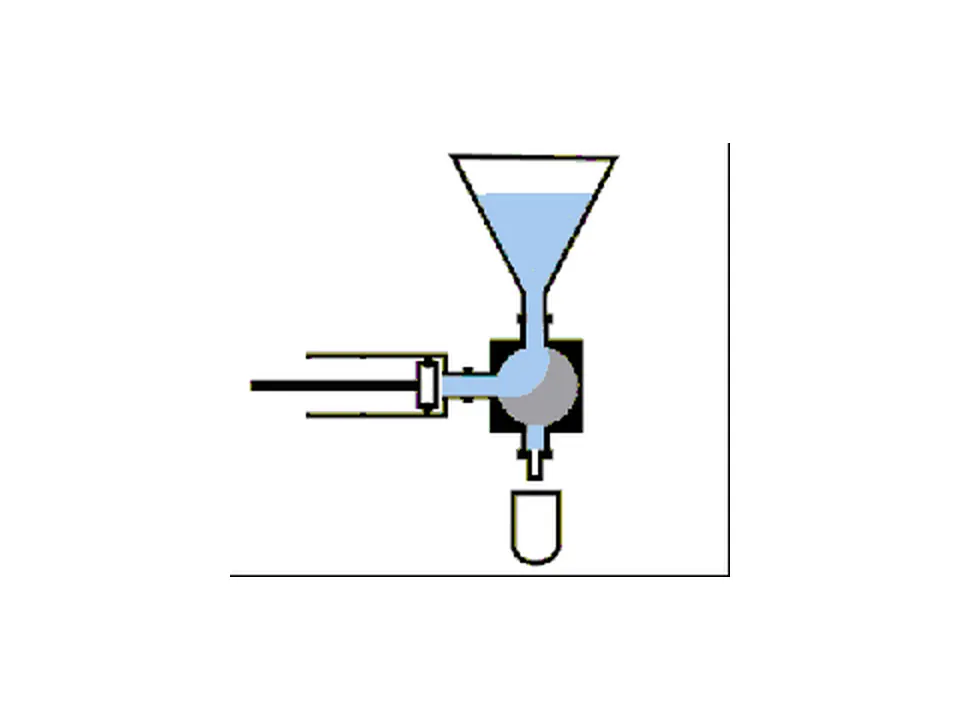

Rotary Valve Piston Filling Machines

Rotary Valve Piston Fillers are distinguished by the rotary valve which has a large throat opening to allow thick products and products with large particulates (up to 1/2″ diameter) from the supply hopper to flow through unimpeded. Great as a tabletop model or can be ganged for higher production requirements. Fill pastes, peanut butter, gear oil, potato salads, Italian dressing, and much more on this type of piston filler with the accuracy of plus or minus one-half percent. Fills accurately at a ten-to-one ratio of the cylinder set.

• Get a Free Quote

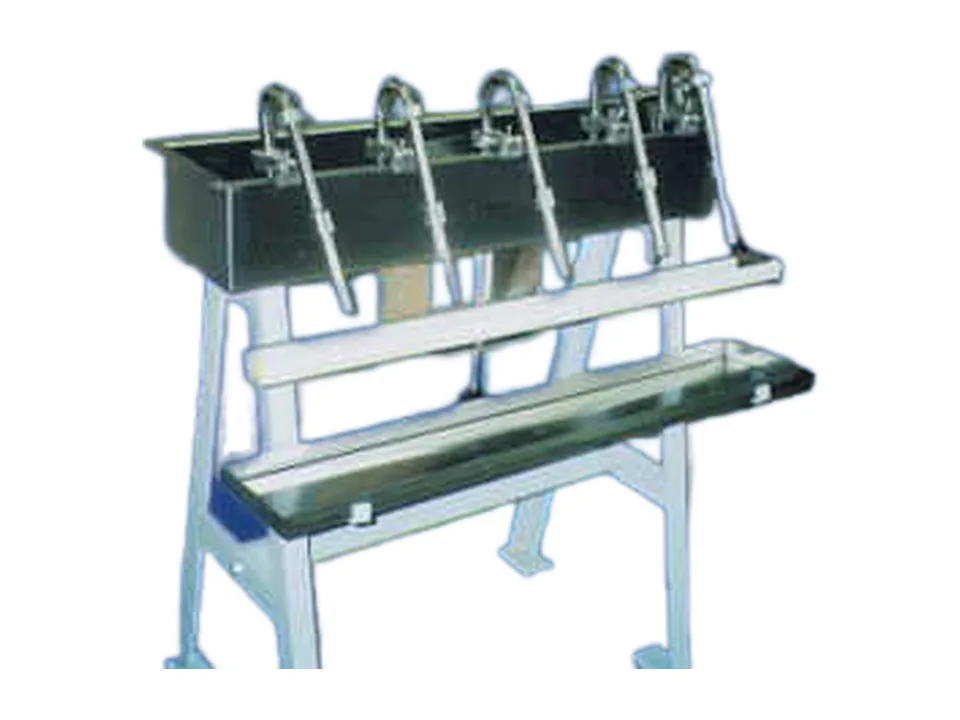

Siphon Filler

The 5 Station J1 Siphon Filler offers a very economical system for small through medium volume production filling of glass, plastic, or metal containers from 2 ounces through 1 gallon (and up to 2 gallons depending upon the dimensions of the container) of most low viscosity liquids. The filler consists of a rectangular trough or tank with a float-controlled valve to maintain the uniform level of the liquid in the tank. The filler is mounted on legs for convenient operating height, and it is supplied with a bottle holder rack, a drip tray, spouts, a siphon starter, and other accessories and fittings as required. The spouts consist of specially designed tubular goosenecks mounted on brackets, which serve as fulcrums; nozzles consisting of double tube assemblies are attached to the goosenecks. The outer tube of the nozzle has a weighted drop or bottle stop which serves as the contact area for the bottle or other container to be filled; when the outer tube is raised by the bottle, it exposes an opening on the inner tube permitting the liquid to flow into the bottle; when the bottle is removed, the weighted drop brings the outer tube down against a valve seat on the inner tube, thereby shutting off the flow before the bottle is completely removed from the spout.

Tank 304S/S Drip Pan 304S/S Tank Float Valve Assembly 316S/S 1″ Inlet With Ball valve 316S/S Float Ball Polypropylene for Inlet Assembly Siphon Starter with Vinyl Bulb (5) Saddle Assemblies (5) Complete Spouts - Gooseneck and Nozzle, in 3/8”, 1/2”, 5/8”, or 3/4″ Mill Steel Painted Stand (stainless steel stand or casters are optional)

Special Longer Spouts - 12” and 14” Long Special Longer Nozzles - 12” and 14” Long Hooded Cover with Open Front Special Gaskets - Neoprene, EPDM, Buna, Viton, Teflon

• Get a Free Quote
