VFFS & Flow Wrappers

Powder Packaging Machine

• Filling Volume Range: 1-100 g (3-100ml)
• Bag Size: 30-180 mm (L) 20-140 mm (W)
• Sealing Type: Three and Four Sides, Back Sealing
• Max.Speed: 30 - 60 bags/min
• Machine Dimensions: 850mm x 1100mm x 1900 mm(L x W x H)
• Weight: 400 Kg
• Power: 220V/50Hz/1,4 KW
• Coding Printer
• Lower Cutter
• Bag linking device
• Options
• Get a Free Quote

Round Corner Powder Packaging Machine

• Filling Volume Range: 1-20 g (2.6-60ml)
• Bag Size: 30-180 mm (L) 20-75 mm (W)
• Sealing Type: Three Sides, Back Sealing
• Max.Speed: 30 - 60 bags/min
• Machine Dimensions: 850mm x 1100mm x 1900 mm(L x W x H)
• Weight: 400 Kg
• Power: 220V/50Hz/1,4 KW
• Options: Coding Printer, Lower Cutter Radius Tool
• Get a Free Quote

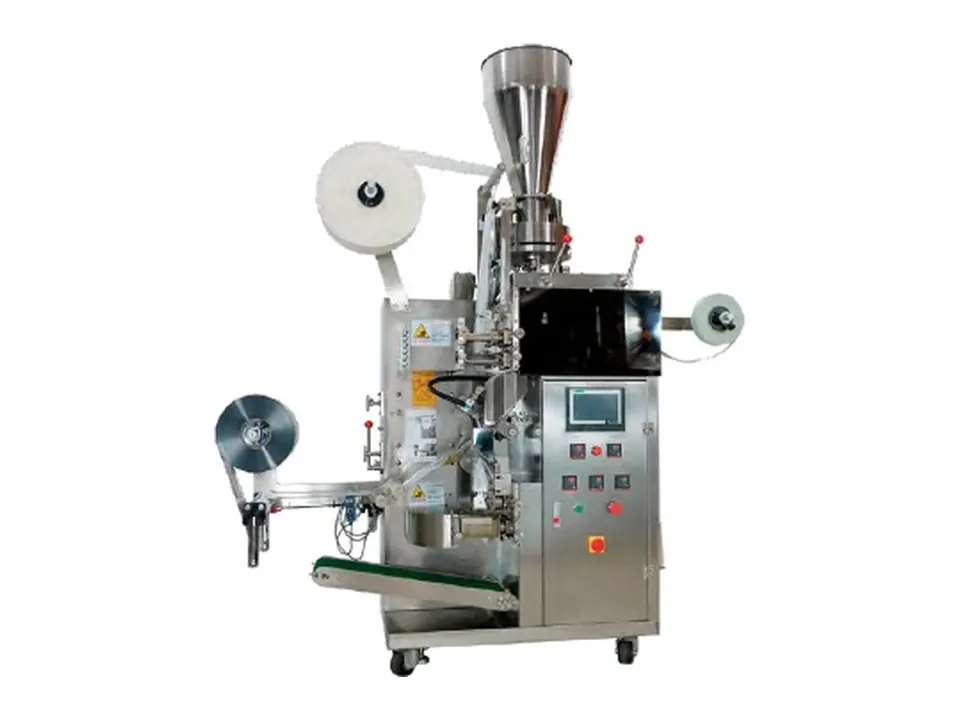

Tea Bag in Bag Packaging Machine

• Filling Volume Range: 3-10 g (1.6-26 ml)
• Bag Size: 50-70 mm (L) 45-80 mm (W)
• Outer bag size: 80-120 mm (L) 75-95 mm (W)
• Sealing Type: Three Sides
• Max.Speed: 30 - 40 bags/min
• Machine Dimensions: 1750mm x 740mm x 1950 mm(L x W x H)
• Weight: 500 Kg
• Power: 220V/50Hz/3,7 KW
• Air: 0,4 m3/min
• Options: Coding Printer
• Tapping Mechanism
• Get a Free Quote

Continuous Sauce Packaging Machine

• Filling Volume Range: 5-60 g
• Bag Size: 60-160 mm (L) 35-100 mm (W)
• Max.Speed: 20 - 90 bags/min
• Machine Dimensions: 1900mm x 500mm x 1500 mm(L x W x H)
• Weight: 450 Kg
• Power: 220V/50Hz/4 KW
• Options: Coding Printer
• Get a Free Quote

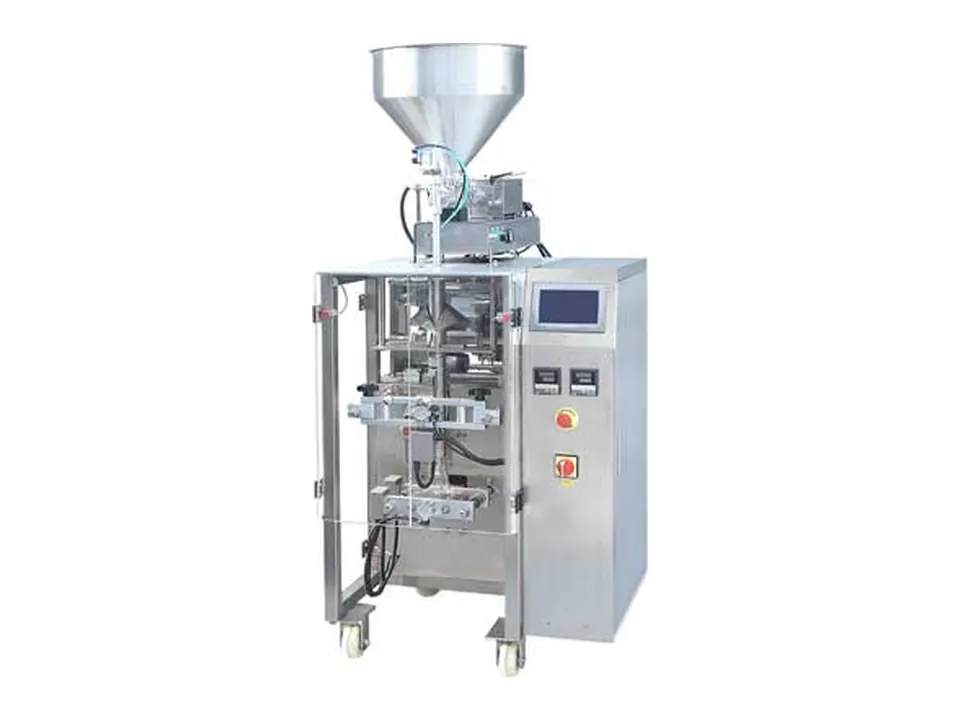

Paste Packaging Machine with Paste Pump

• Filling Volume Range: According to the liquid or paste filling machine capacity
• Small: 30-250ml +/- 0.5%,
• Medium: 100-1000ml +/-1%,
• Large: 1000-3000ml +/-1%
• Capacity: Small 10-30 bpm,
• Medium: 8-25 bpm,
• Large: 6-20 bpm
• Bag Size: 50-190 mm (L) 40-150 mm (W)
• Film Width: 100-320mm
• Machine Dimensions: 1120mm x 800mm x 1120 mm(L x W x H)
• Weight: 300 Kg
• Power: 220V/50Hz/2,2 KW
• Get a Free Quote

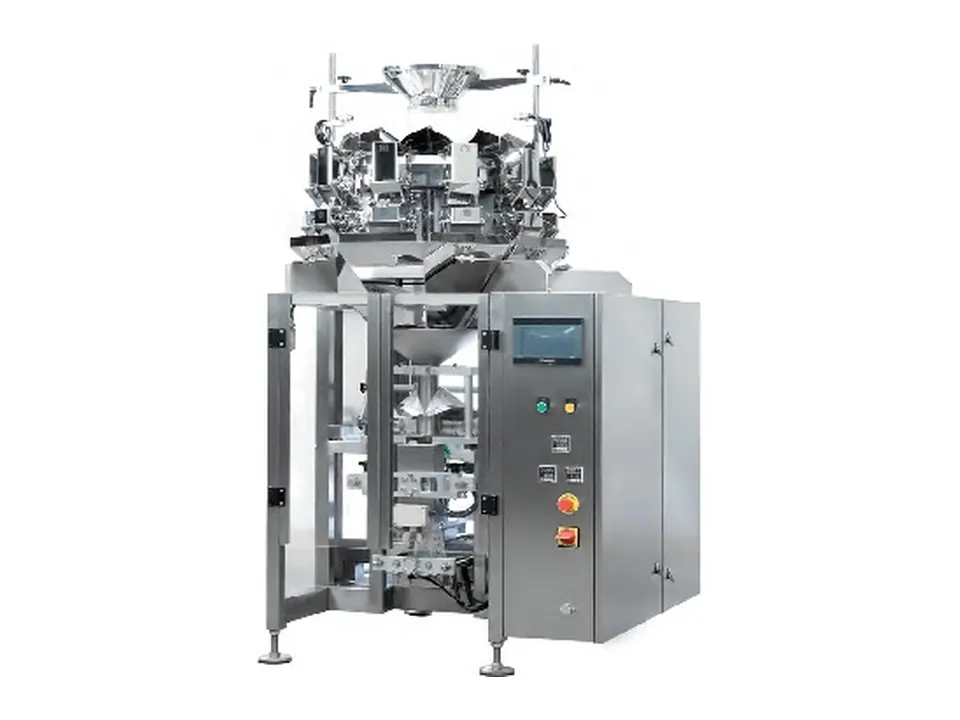

Compact VFFS packaging machine with multihead weigher

• Filling Volume Range: 10-1000 g
• Bag Size: 50-200 mm (L) 60-150 mm (W)
• Bag Type: Pillow bag, gusseted bag, punching bag, vacuum bag
• Max.Speed: 10 - 65 bags/min
• Machine Dimensions: 1150mm x 800mm x 2700 mm(L x W x H)
• Power: 220V/50Hz/3,2 KW
• Options: Coding Printer
• Get a Free Quote

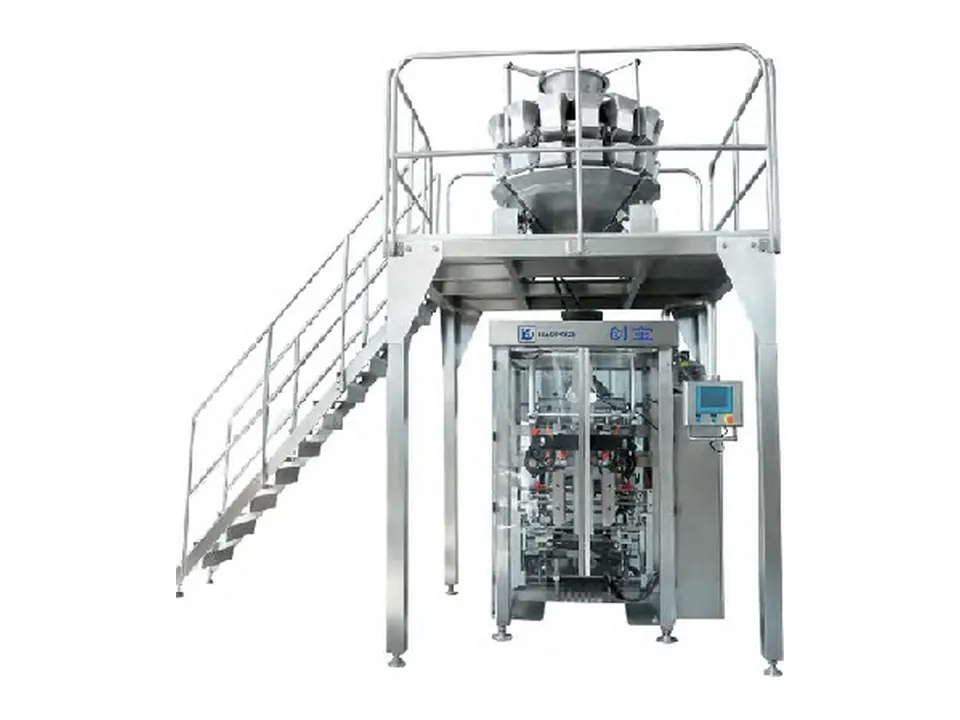

VFFS Quadro packaging machine with multihead weigher

Bag Type: Packing bags with a stronger three-dimensional sense, high-grade bags, beautiful and popular, especially highlighting the display effect

• Filling Volume Range: 10-1000 g
• Bag
• Front width: 70-200mm,
• Side width: 30-100mm,
• Edge sealing width: 5-7mm,
• Bag length: 100-350mm
• Max.Film Range: 220mm-520mm
• Max.Speed: 5-50 bags/min
• Get a Free Quote
• 10-head computer combination weigher
• Stainless steel Z-type material conveyor
• Finished product conveyor
• Stainless steel supporting platform (optional carbon steel material)

High Speed VFFS packaging machine with multihead weigher

• Filling Volume Range: 10-2000 g
• Bag
• Front width: 50-250mm,
• Bag length: 50-350mm
• Max.Film Range: 120mm-520mm
• Bag Type: Pillow bag (Optional: gusseted bag, strip bag, bags with euroslot)
• Max.Speed: 120 bags/min
• Get a Free Quote
• 14-head computer combination weigher
• Stainless steel Z-type material conveyor
• Finished product conveyor
• Stainless steel supporting platform (optional carbon steel material)

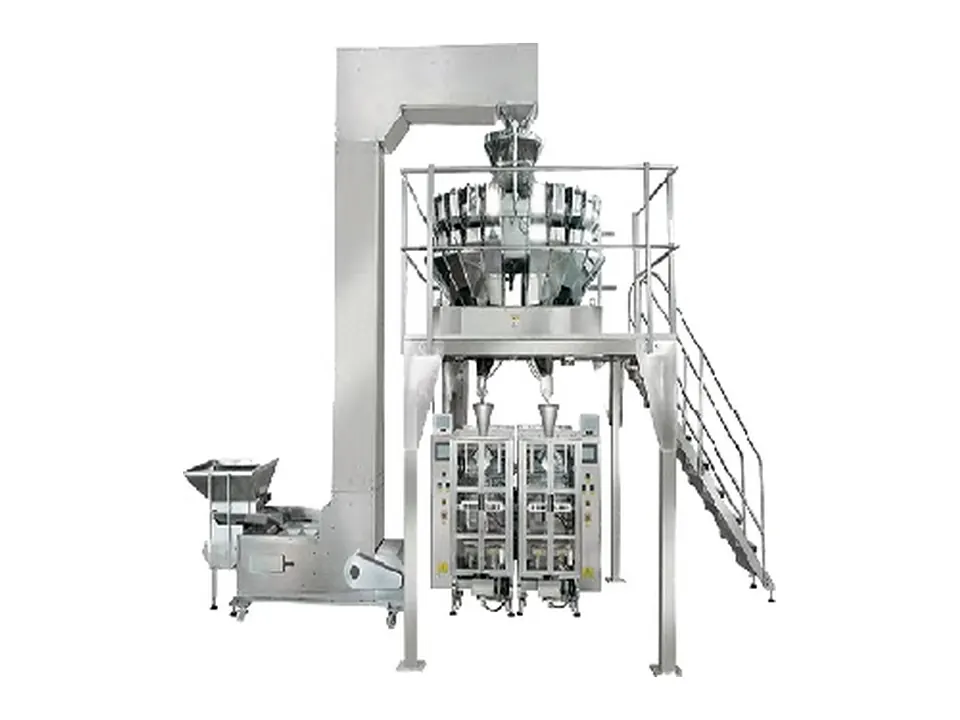

Double bagger VFFS packaging machine with multihead weigher

• Filling Range: <= 2.4 L
• Bag
• Front width: 50-330mm,
• Bag length: 50-200mm
• Max.Film Range: 140mm-420mm
• Bag Type: Pillow bag (Optional: gusseted bag, strip bag, bags with euroslot)
• Max.Speed: 140 bags/min
• Get a Free Quote
• 24-head computer combination weigher
• Stainless steel Z-type material conveyor
• Finished product conveyor
• Stainless steel supporting platform (optional carbon steel material)

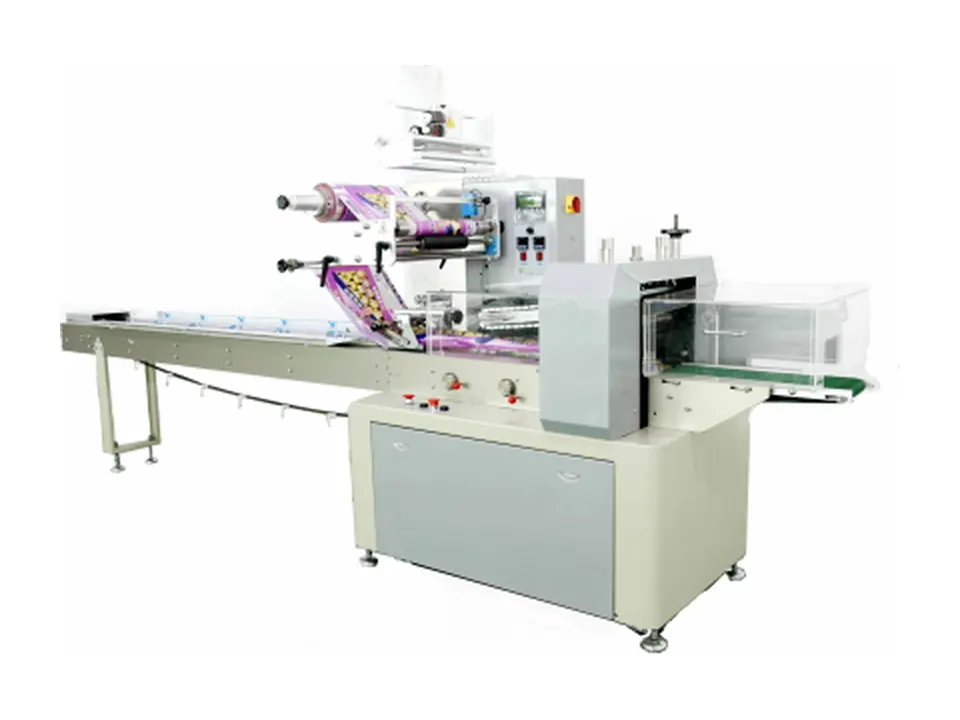

BM-450-S3 Horizontal Flow Wrapper

3 Servo Motor Painted Case (Milk Color) Alpha-Control System Interlock Safety Door Protection Standard Right to Left Machine Adjustable Former RD144, Sealing Jaw Width 200mm 2 Sets of Wheels Lug Pusher Infeed Conveyor Film from Top, Max Width 450mm Speed: 20-120ppm Optional 304SS Case

• Get a Free Quote

BM-S500 Servo Drive Flow Wrapper

3 Servo Drive (Horizontal Sealing) Single Film Roll Holder Supporting Pad Type Infeed Conveyor Ink Coder Stainless Steel Construction For Food Contact Parts Painted Carbon Steel for Main Machine Rotatory Motion Sealing Jaws for Horizontal Sealing and Cutting High precision photo eye detection 7” Colored HMI Hygienic Design for Easy Cleaning Driven Reel Holder

• Get a Free Quote
• Film width: 80-360 mm
• Bag length: 100-350mm
• Bag width: 35-160mm(W)
• Packing speed: 35-300bag/min
• Product height: 5-55 mm
• Power voltage: 220V, 50/60HZ, 5.2 KW
• Machine size: 4020×1000×1950mm
• Machine weight: Approximately 600KGS
• Material of frame: Carbon steel as standard. SUS optional
• Film material: OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP laminated film

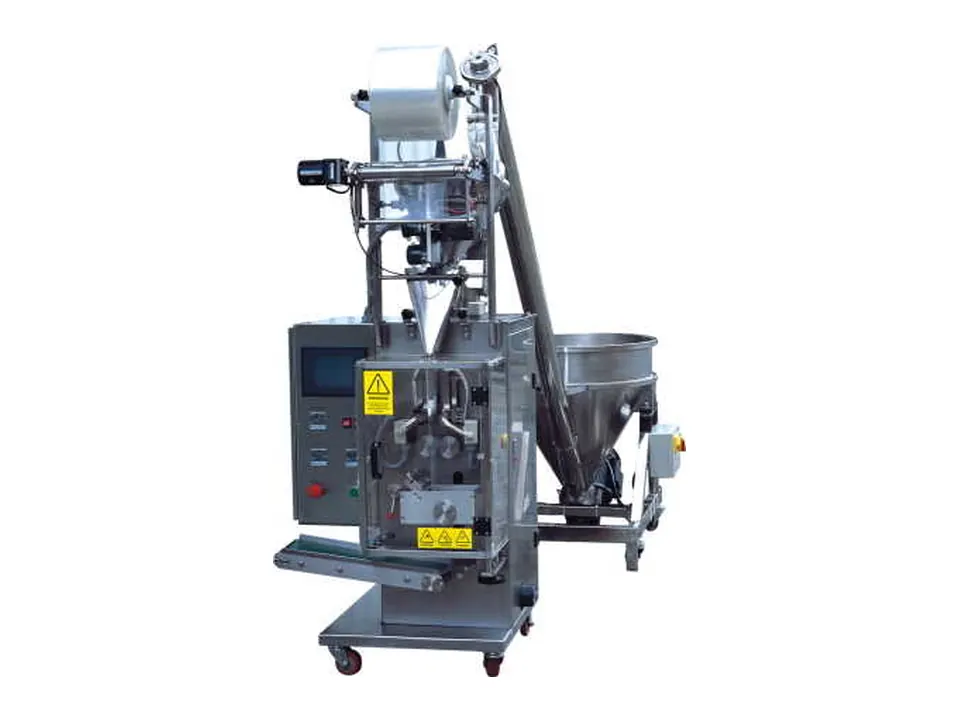

Vertical Form Fill and Seal Machine

Busch Machinery offers a full line of Vertical Form Fill and Seal machines, also known as VFFS, plus sachet forming machines, stick-pack machines, pillow-pack machines, stand-up pouch filling and sealing equipment, and band sealers for small production with preformed bags. Most of us are aware of the typical vertical form fill and seal bags from our experience with snack foods. This type of bag is seen in potato chip packaging with a top and bottom seal and a long fin seal down the back side. We often refer to this kind of bag making and filling as a pillow pack. Aside from gusseted bag options, this pretty much defines what can be done with VFFS packaging machines insofar as larger bag sizes are concerned . However, what is less known to many would-be buyers is that vertical form-fill and seal machines can make 3 and 4 sided sealed pouches in bag sizes as large as 6 inches wide by 8 inches long, identical in appearance to what can be done on very expensive “Bartelt” type horizontal pouch making, filling and sealing machines for a lot less money. Furthermore, not only is it possible to make 4 side sealed pouches, but it is also possible to make twin packs, each with different ingredients. Small machines for individual pouches to a maximum of 3-3/8″ wide x 4-3/4″ long are called Sachet machines and can also do any of the three types of seals. Another type of Vertical Form Fill and Seal machinery is what is known as a “Stick” packer. Typically stick packs refer to long narrow packages that can be made for 1 - 10 at a time from a single web where the machine slits the web prior to forming. Stick packs will also have a fin seal or alternatively an envelope seal on the side. But the fact is that a stick packer VFFS packaging machine need not necessarily produce only a narrow package but can produce almost any sized bags within the limits of the web width handling capabilities of the particular machine. For instance, a 10-lane stick packer could easily be a 4-lane stick packer, with more than double the width bags. In reality, the best name for a “stick packer” is a multi-lane Vertical, Form, Fill, and Seal Machine. All of the VFFS packaging machines can be used to fill liquids, pastes, granules, powders, tablets, snack foods, small parts, and much more.
