The BM-705A is an Automatic Random Flap Closing Case Sealing Machine.
Details
Case Erectors & Sealers
Automatic case erectors, semi-automatic and automatic case sealers for uniform or random sizes, and case packers.
Case sealers

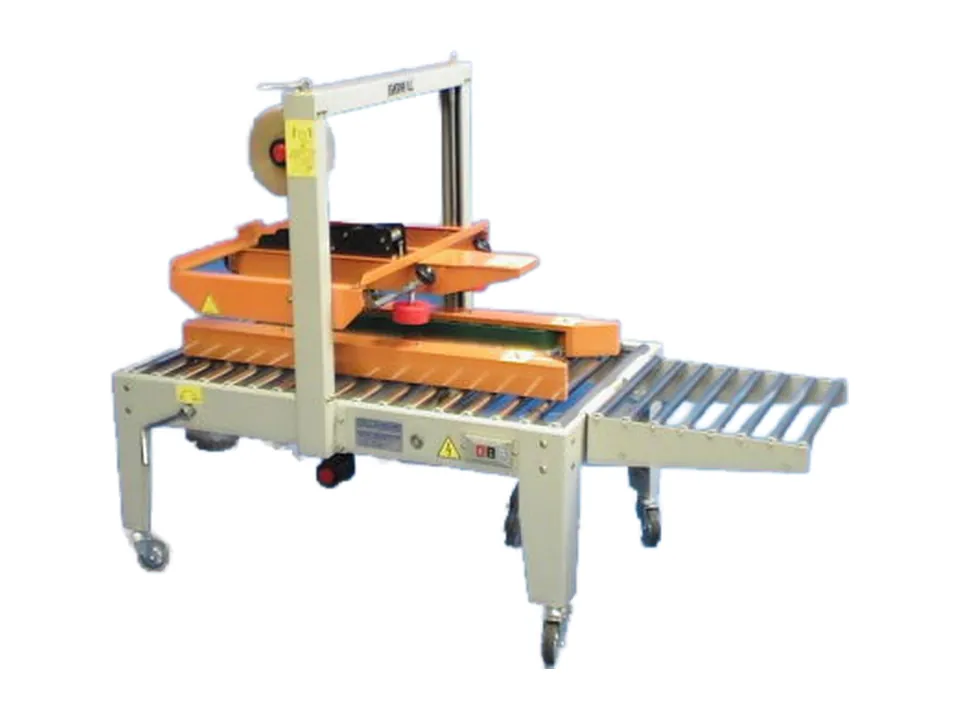

The BM-701W semi-automatic case sealer is by far our most popular and versatile uniform case sealer.
Details

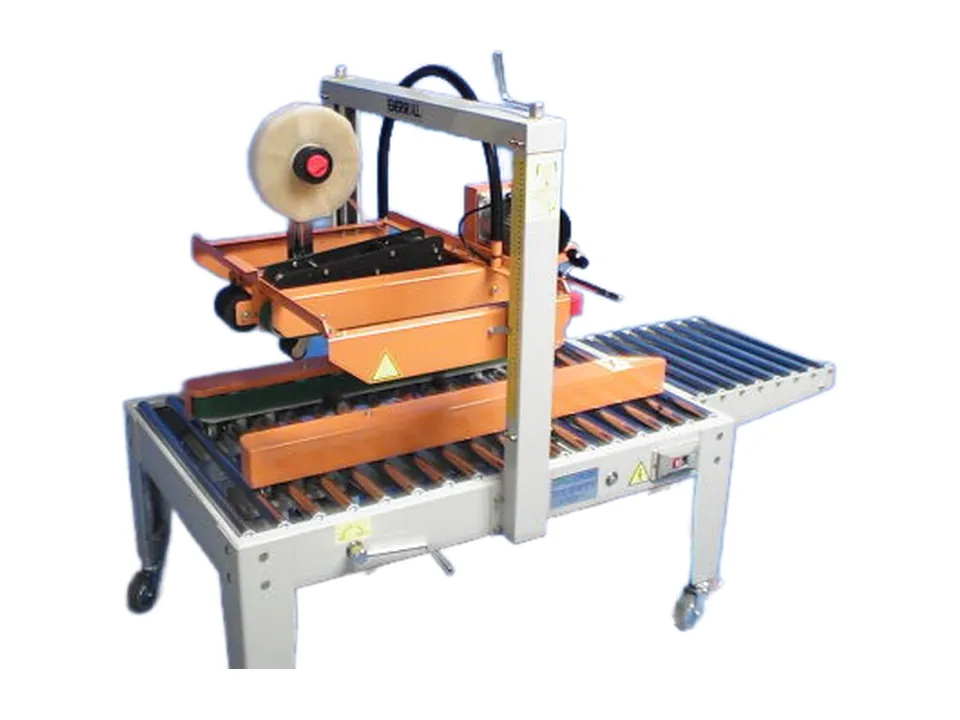

The BM-702 Top and Side Drive Semi-Automatic Case Sealer is ideal for handling extra-heavy loads or extra-light, tall loads .
Details

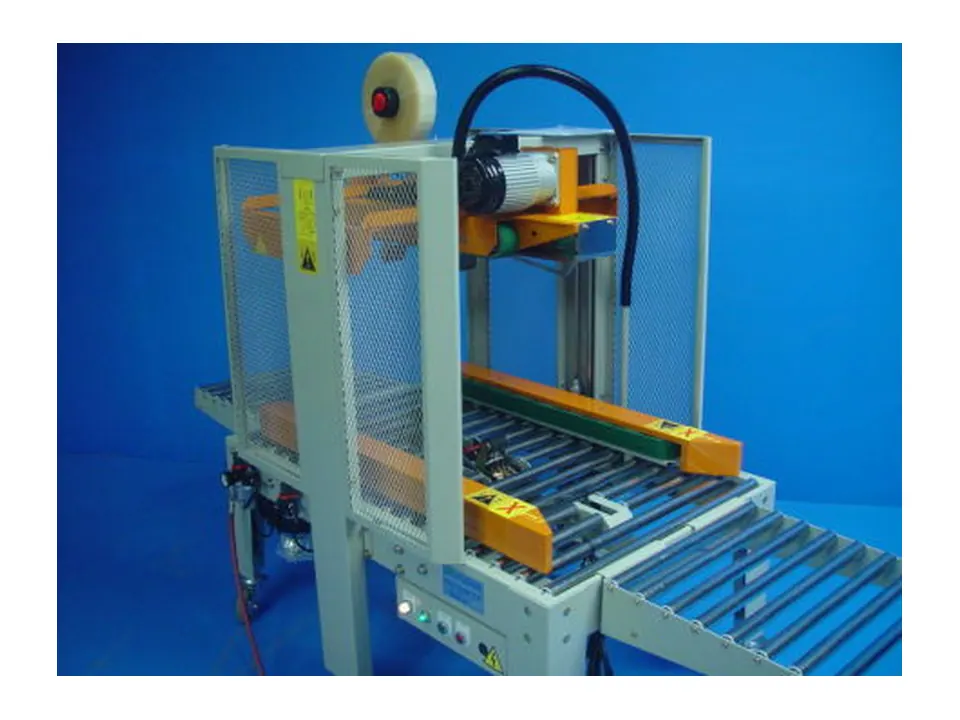

The BM-702A Auto Random Case Sealer is a cost-efficient top and bottom case sealing machine for runs of cases that are not the same size profile.
Details

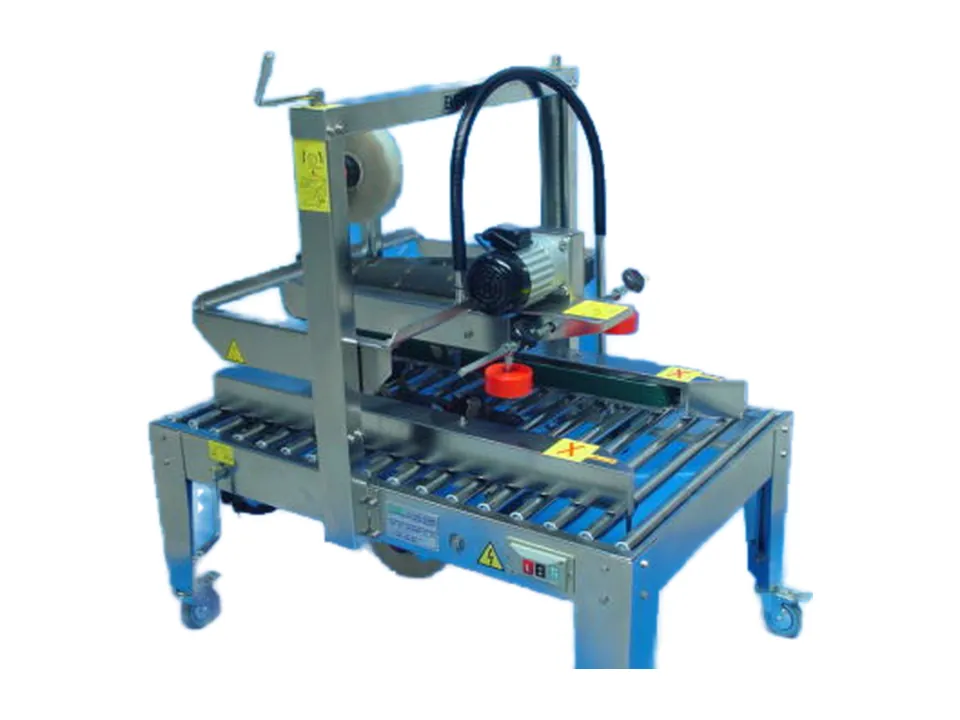

The BM-702SS Top and Side Drive Semi-automatic Case Sealer is great for extra heavy loads or extra light tall loads . Constructed from stainless steel, this case sealer is great for food operations.
Details

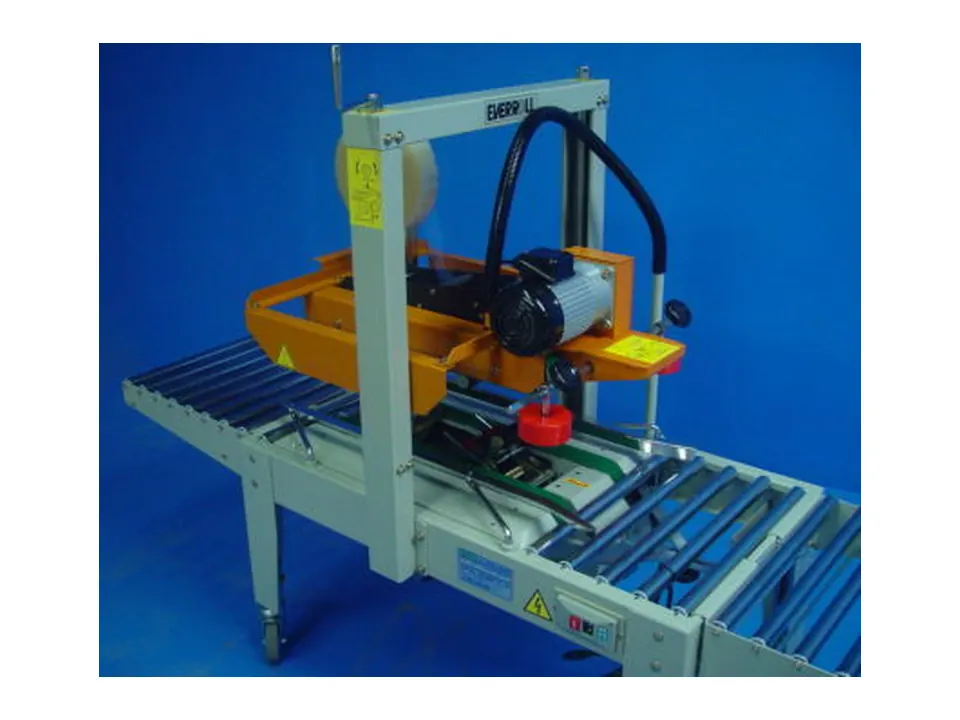

The BM-703 Semi-Automatic Case Sealer works better than others with coders because of the low-profile guide rails.
Details

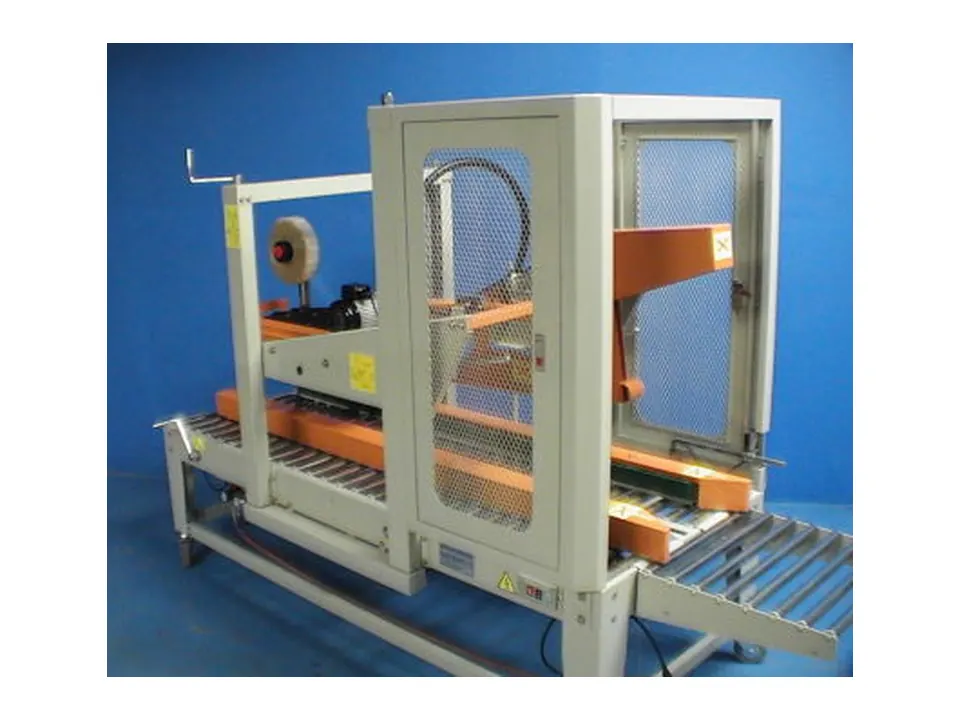

The BM-705 is an Auto Uniform Flap Folding and Case Sealing Machine, designed of heavy-duty steel construction which can meet the requirements of a variety of carton sealing profiles and high production rates.
Details

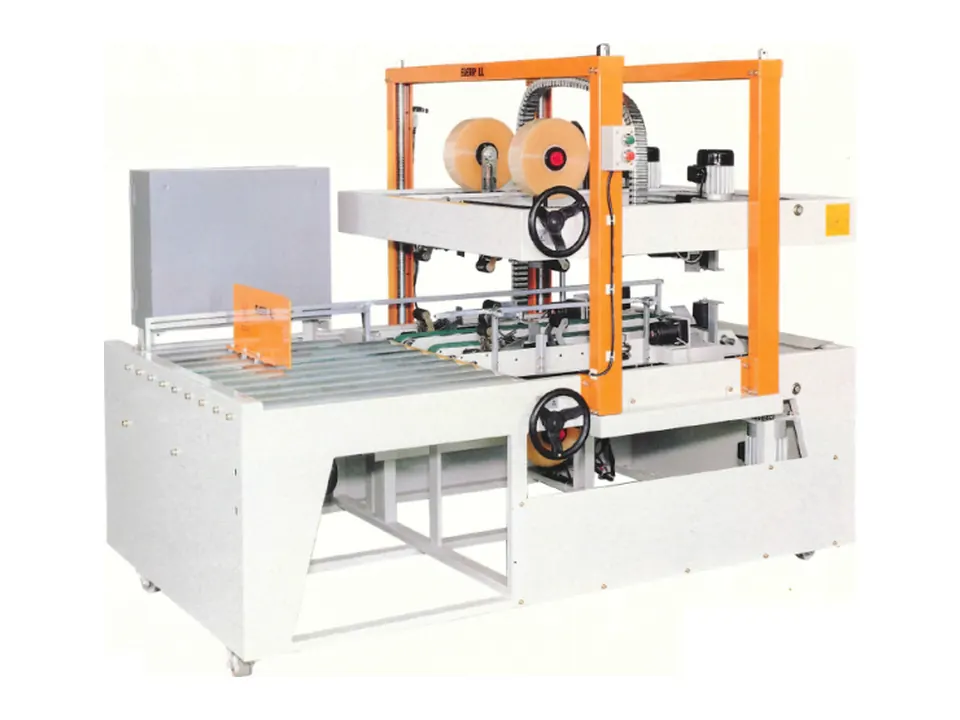

The BM-706 Top Bottom Drive Automatic Edge Sealer for cases works in conjunction with the BM-705 automatic case sealer or the BM-702 semi-automatic case sealer.
Details
Case erectors
Once your volume of cases increases, it is time to stop hand erecting and taping your boxes.
Details
The BM-801N Automatic Case Erector and Bottom Sealer is designed for erecting cases, combined with case bottom sealing function in a single feed.
Details
**Custom-made equipment, no standard specification.
Details
Suitable for uniform-sized cases. (W):120-330 mm (4.7″-13″)
Details

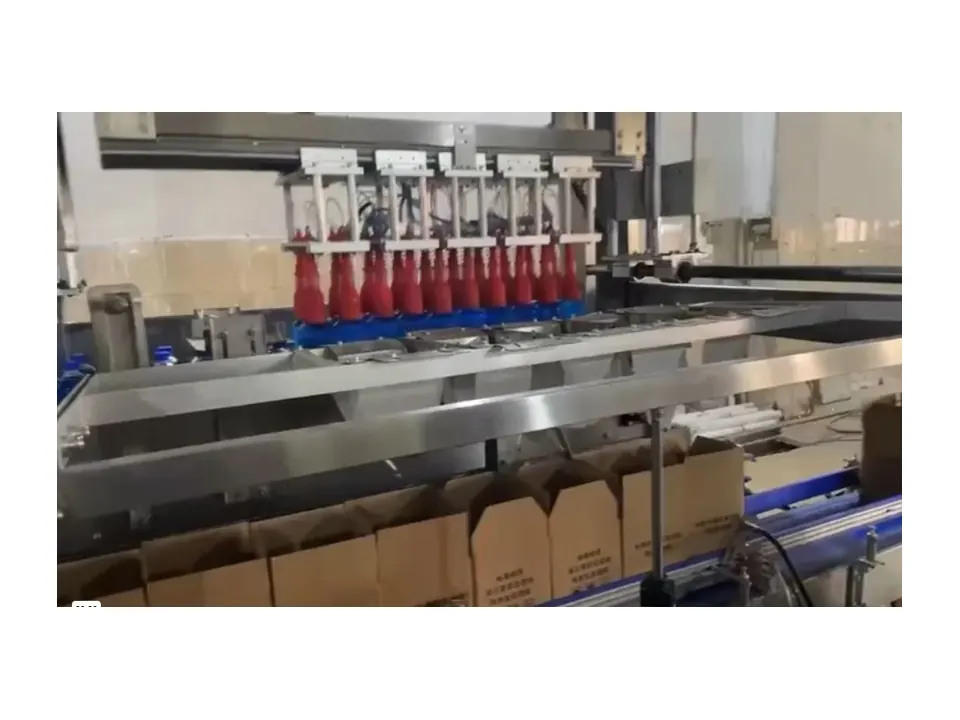

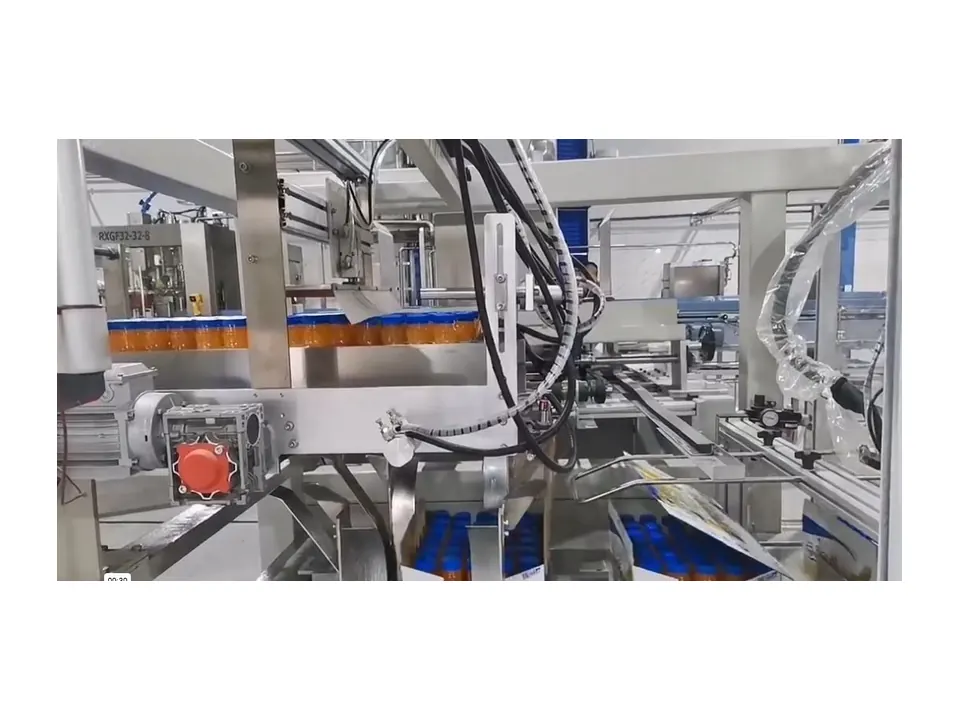

Case packers
Custom Made Machine. Get a Free Quote
Details
Custom Made Machine. Get a Free Quote
Details
Common questions
What if the machine I need isn't listed?
Call us at 800-840-9573. Our inventory goes beyond what is shown here, and we can source or custom-build to your specification.
Read more about Case Erectors & Sealers
End-of-Line Packaging Solutions
Boost your packaging efficiency with our comprehensive range of end-of-line automation equipment. We specialize in high-performance solutions that streamline operations, improve throughput, and reduce manual labor.
Our product lineup includes:
Whether you’re scaling production or improving packaging line efficiency, our solutions are designed to meet the most demanding industrial needs. Explore our customizable options to build a smarter, more productive packaging line.
- Case Erectors : Automatic case erectors form and seal corrugated cases to ensure consistent performance and reduce packaging time.
- Case Sealers : Are among the most common end-of-line machines, even for the small shipper. There are several types of carton sealers available, using tape or optional hot melt glue. The most basic type is what is known as a semi-automatic case sealer ; it requires the operator to close all flaps before inserting the case into the machine. At that point, the conveyor belts drive the box through the machine while it tapes both the top and bottom at the same time (or top or bottom only). Automatic case sealers can also tape the boxes on the top and bottom, but automatically close all of the flaps, including the leading, trailing, and side flaps, before taping. This machine and the semi-automatic carton sealer described above are known as uniform case sealers, meaning they are designed for production runs of cases of the same size (uniform). The machines are then physically readjusted (usually in less than a minute) for the next-sized box. Random case sealers are used when each box size can vary randomly, such as in order-picking warehouses. In this situation, the carton sealer automatically adjusts to the size of the box as presented. Random box sealing machines run much slower than Uniform case sealers and cost quite a bit more, due to the extra mechanisms and time required so that the machine can self-adjust to the carton size. Edge sealing machines are sometimes required for extra protection of the contents, sealing all four edges of the carton after the initial center seal is made with one of the case sealing machines above. An edge sealer is available in automatic and semi-automatic versions as well as uniform and random edge sealers.
- Case Packers : Efficiently pack products into cases with robotic or mechanical systems, tailored for speed and accuracy.
- Palletizers : Automate your pallet loading process with robotic or conventional palletizing systems, ideal for high-volume operations.
- Direct Inkjet Printers : Print high-resolution text, barcodes, and graphics directly on cases with reliable, fast-drying inkjet technology.
- Print and Apply Labeling Machines: Apply pre-printed or on-demand labels to products, cartons, or pallets with exact placement and compliance-ready clarity.
- Case Erectors
- Case Sealers
- Case Packers
- Palletizers
- Direct Inkjet Printers
BM-706A with BM-705A
The BM-706A Top Bottom Drive Automatic Edge Sealer for cases works in conjunction with the BM-705 Automatic Case Sealer (or the BM-702 semi-automatic case sealer). First, the case is sealed by the case sealer on the center line of the top and bottom of the case. Then the case is pushed off 90 degrees into the edge sealer where it completes the “H” seal top and bottom. If you need a system that runs a straight line, we can integrate a 90-degree turntable and eliminate the shuttle.
Includes: Standard 2″ Wide Taping Heads Casters (4) Tool Kit 110 VAC, 60 Hz, 1P
Options: In-feed and Discharge Roller Tables 3” Width Taping Heads
Get a Free Quote
- Case Handling Specifications:
- Length: 11” minimum to 23.5” maximum (custom sizes available)
- Width: 9.8″ minimum to 23.5″ maximum
- Height: 7.8″ minimum to 23.6″ maximum
- Throughput Speed: 75 feet/minute drive belt speed
Need help choosing?
Share your product, container and target speed. We will recommend the right machine for the job.
