Pharmaceutical packaging machinery

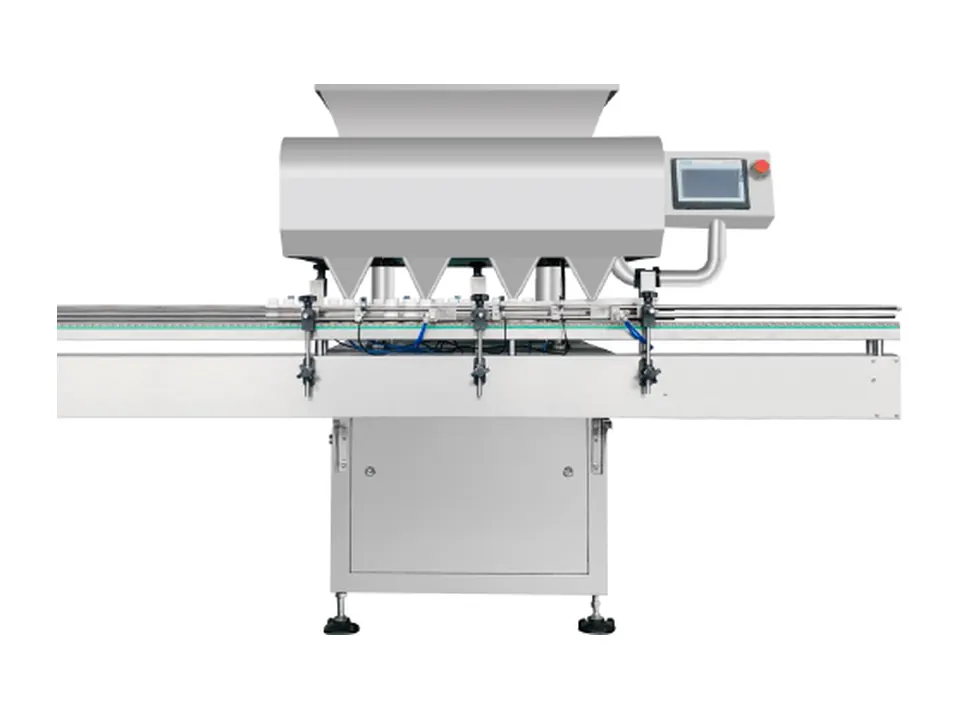

32 Lane Electronic Counting Machine

The model 32S Multi-Channel Counting Machine bottle conveyor mechanism utilizes a bottle stopper device on the bottle track to halt bottles transferred from the previous equipment at the filling position, awaiting filling. Products are orderly fed into the medicine chamber via the vibration of the corrugated feeder plate. The chamber is equipped with a counting photoelectric sensor; the products that fall into the chamber are quantitatively counted by this sensor before being filled into the bottles at the filling position.

• Get a Free Quote
• Strong compatibility: Capable of counting and bottling solid dosage forms or granules, including tablets (including shaped tablets), capsules, softgels (transparent and opaque), and pills.
• Vibratory feeding: Features 8-channel uniform vibratory feeding, a unique flap dividing mechanism for material discharge, ensuring even and stable output without damaging the medicines.
• High dust resistance: Utilizes the high dust-resistant photoelectric sensing technology, ensuring stable operation even in dusty environments.
• Accurate counting: The photoelectric sensors provide automatic counting, with a bottling error rate lower than the national standard.
• Specially designed leak-proof nozzle to prevent clogging, enabling rapid bottling even for bottles with small openings (optional).
• High degree of intelligence: Equipped with multiple detection and alarm control functions, including no-bottle-no-count and self-diagnosis for faults.
• Functional support: Automatic detection of bottle shortage by photoelectric sensors, with automatic shutdown.
• Simple operation: Intelligent design allows for setting various operational parameters as needed.
• Easy maintenance: Simple training is required for operators, and disassembly, cleaning, and replacement of parts are straightforward and tool-free.
• Sealed and dust-proof: Equipped with a dust box to reduce dust pollution (optional).
• 00~5# Capsules, Softgels
• Φ3-22 Plain Tablets, Shaped Tablets, Coated Tablets
• Φ3～20 Pills
• Speed: 20-120 BPM
• Lanes: 32
• Applicable Bottle Type: 10-500ml Round and Square Plastic Bottles
• Filling Capacity: 2-9999
• Power: 220VAC, 60Hz, 0.8KW
• Gas Consumption: 0.6 Mpa
• Dimensions: 2000x13000x1700mm
• Weight: 550 KG

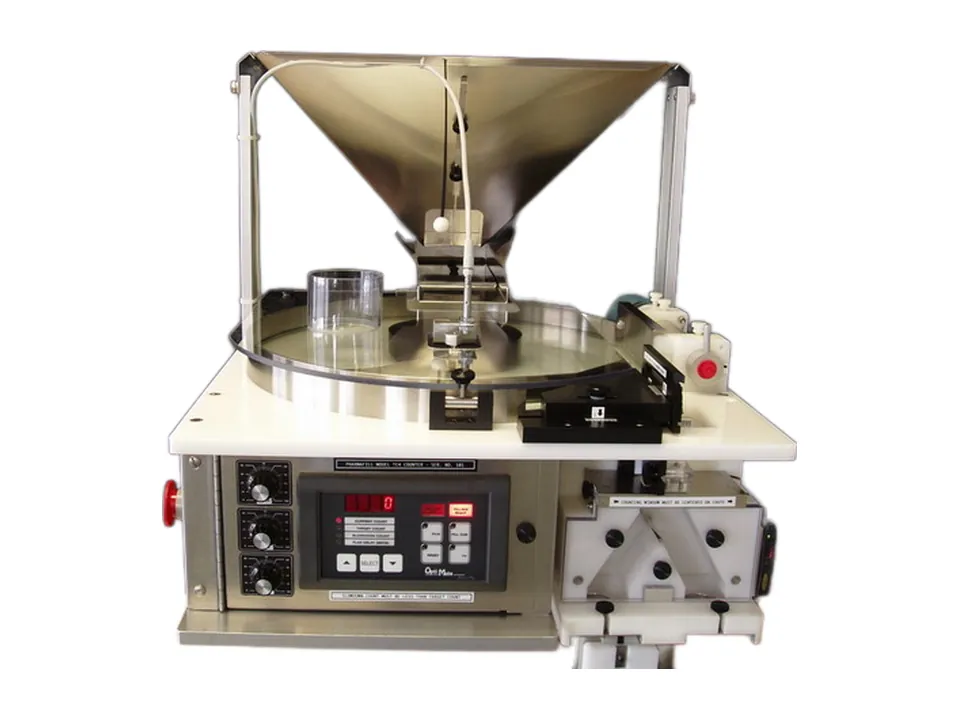

BMT-C4 Semi Automatic Tabletop Tablet Counter

The BMTC-4 is designed to quickly and accurately count tablets, capsules, and all human solid oral dose applications. No change parts are required. Compact, expandable, and innovative, the TC4 is easy to operate and very competitively priced. Designed as a check counter, it is ideal for both short production runs and counts verification for large bottling operations. Tablets are introduced through an opening in the rim cover. Guides direct the tablets to the turntable edge where they drop off, passing through a photoelectric scanner, into the diverting/filler head. The scanner detects each individual tablet, producing a count that is accumulated until it reaches a preset total, at which time the diverter head switches the tablet flow to the opposite filling station. Filled bottles are replaced with empty bottles while the opposite filling station is active.

Full color touch-screen HMI 16” Diameter rim and turntable No change parts required for different products Custom photoelectric sensing unit counts tablets, capsules, caplets, gelcaps (clear, opaque, hard or soft) and unusual shapes (children’s vitamins, bath oil gelcaps) Computer controlled Special detection circuit accurately counts clear gelcaps Continuous filling operation alternates between two filling stations Count rates as high as 2000 tablets, 1500 capsules per minute Product change and clean-up requires no tools Accommodates wide variety of bottle sizes-shapes Smart Bottle Sensor Stainless Steel Product Contact Areas Height Adjustable to Match Bottle Height Air Guide System

• Air Guide Assembly - Smoother product flow
• AS1 Air Supply Blower - Clean, low-pressure source of air
• Feeder - Automated product delivery
• Auto-Feed Control - On demand delivery control system
• Hopper Assembly - Large product supply capacity
• Get a Free Quote
• Counts tablets, capsules, gelcaps, caplets, lozenges, softgels, candies
• Counts up to 2,000/minute
• Max oral dose size .9” x .9” x .4”
• Bottles up to 10” in height
• Fits on a table just 34” wide x 21” deep x30 high Weight: 75 lb. Electrical - 115 VAC, 2 amps - with AS1 Blower connected - 3 amps
• Weight: 75 lb.
• Electrical - 115 VAC, 2 amps - with AS1 Blower connected - 3 amps

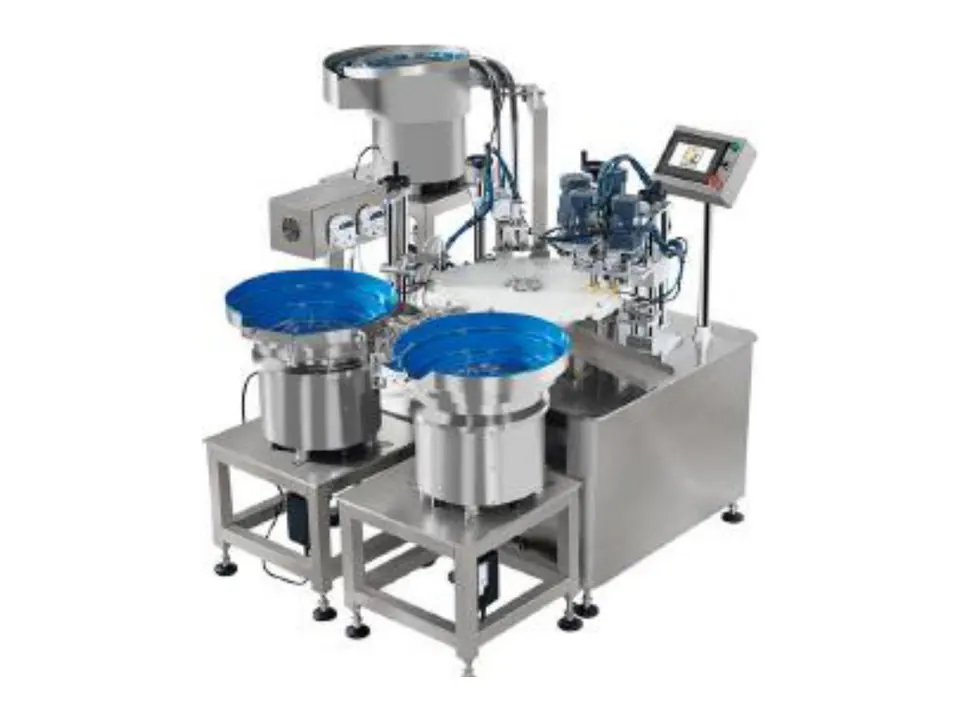

Automatic Peristaltic Pump Liquid Filling and Capping Machine

The SF-PEM is a Monoblock filling and capping machine (filling and capping machine together). All stations work on a star wheel which is suitable for small volume bottles. It is commonly used in tube, reagent testing tube, eye drop, e-liquids, essential oil biologic liquid, and some other small bottles and vials, with liquid inner cap pressing and our cap closing in pharmaceutical and other industries.

1 Fill Head, 1 Capping Head 2 Fill Heads, 1 Capping Head 2 Fill Heads, 2 Capping Heads 4 Fill Heads, 2 Capping Heads

• Filling
• Range: 1-30ml (30-100ml is optional)
• Cap
• Type: All kinds of screw caps/ press caps/ aluminum caps
• Method: Peristaltic
• Pump
• Speed: 60-3000 BPH (depends on number of fill heads and capping head)
• Precision: ± 0.5-1% Power 220/380V, 50/60Hz, 15.Kw (custom to your requirements)
• Air
• Pressure: 0.6-0.8 Mpa
• Get a Free Quote

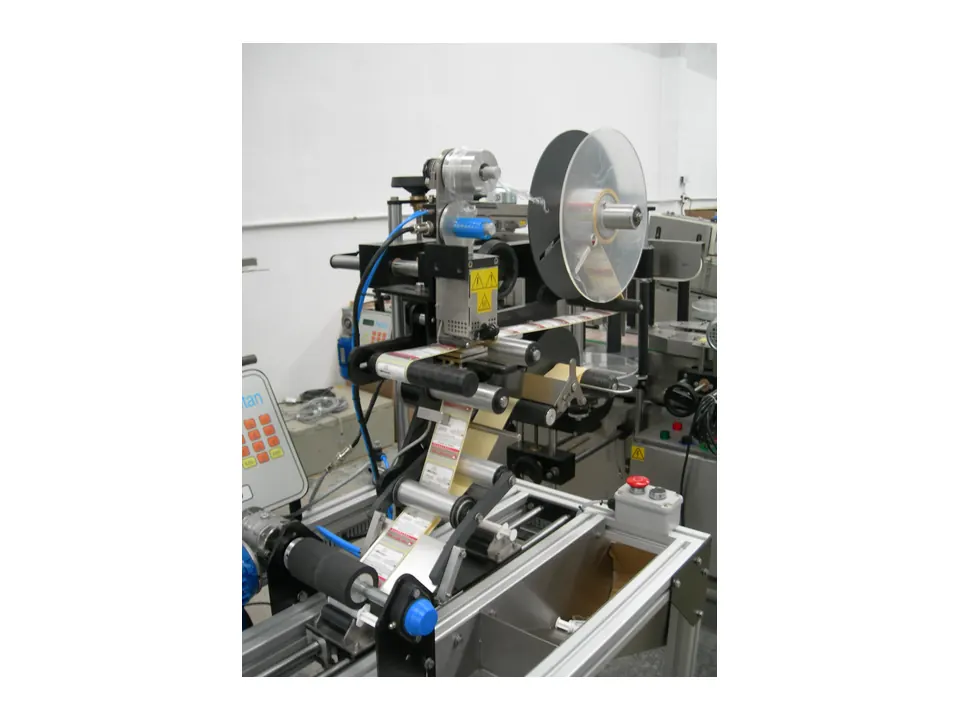

BM-KTN-SYR Semi-Automatic Syringe Labeler

• Get a Free Quote
• High-Efficiency Double Station Labeling Machine
• Label Syringes and Other Unstable Products Like Lipstick, Markers, Ampoules, etc.
• Product Is Labeled in One Station While Another One Is Free for Placing a New Product
• Accurate Positioning and Alignment of Labels
• Variable Speed - Around 40 PPM
• Foot Switch or Automatic Activation
• OPTIONAL: Pneumatic Unloading Device (Pusher)
• 110VAC Unless 220VAC is Requested
• Size: 1200x900x1400mm
• Weight: 200Kg

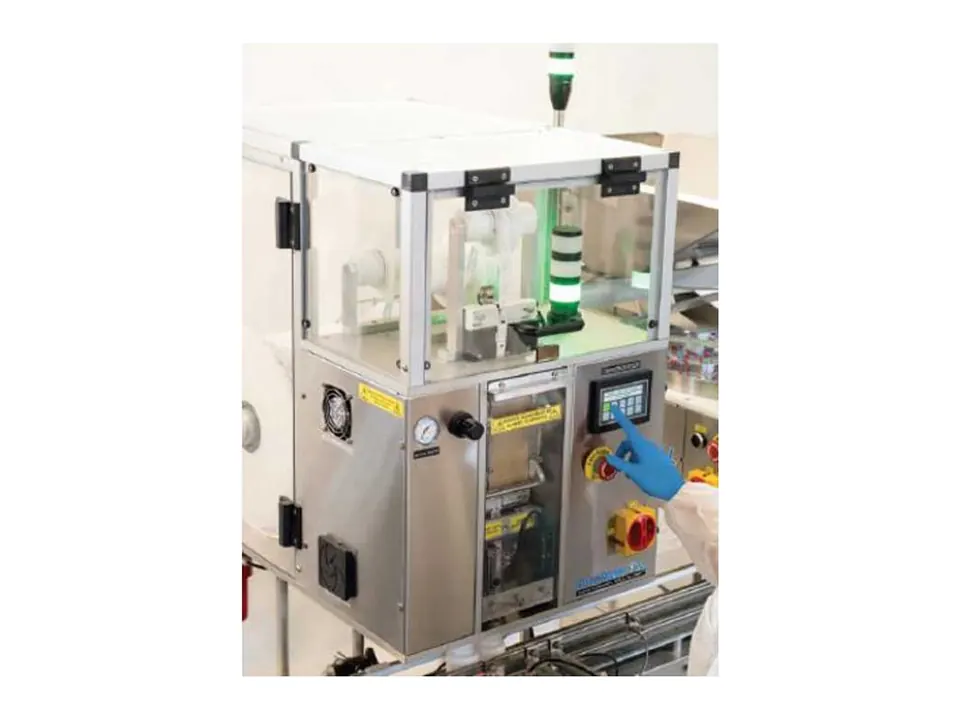

BMP-S1 Desiccant Inserter

The BMP-S1 Packserter automatically separates desiccants, oxygen absorbers and other packets from continuous strips and inserts them into bottles or other containers at speeds of up to 100 packets per minute. A sensor array automatically finds the proper cut location between packets and makes sure the roll is in place, the packet is fed, and a bottle is present before allowing each cut and insertion. It’s easy to rely on the PS1 for consistent, unattended operation.

• Get a Free Quote
• Automatically cuts continuous strip packets into individual packets
• Suitable for any strip-type product such as desiccants, oxygen absorbers, lotion samples, fast-food condiments, etc.
• PLC controlled, with digital touch-pad operator interface
• Brushless DC step motor drive for repeatability and reliability
• Easy access, positive drive, belt feed mechanism
• Pneumatically operated knife assembly
• 3-color stack light (Green/Yellow/Red) for high-visibility status indication
• Automatic power feed on supply spool, for zero-tension
• Ready to roll up to any conveyor, includes lift platform and bottle-gating system
• Stainless steel, anodized aluminum, acetal & polycarbonate construction
• Product Capacity: 1/4-gram to 5-gram packets on continuous strip spool
• Spool Capacity: 11.8” wide x 3” ID core x 18.1” OD (30 x 7,5 x 46 cm)
• Rate: Up to 120 cut packets per minute, depending on length of packet
• Electric: 120 VAC, 5.0 Amp, 50/60 Hz
• Air: Supply pressure 50 PSI (344 kPa), consumes less than 1.0 CFM (28 LPM)
• Size: Adjustable 66 to 76” high x 20” wide x 30” Deep (168 to 193 x 51 x 76 cm)
• Weight: without product spool - 250 lb. (113 Kg)
• Footprint: 20” wide x 30” deep (51cm x 77cm)

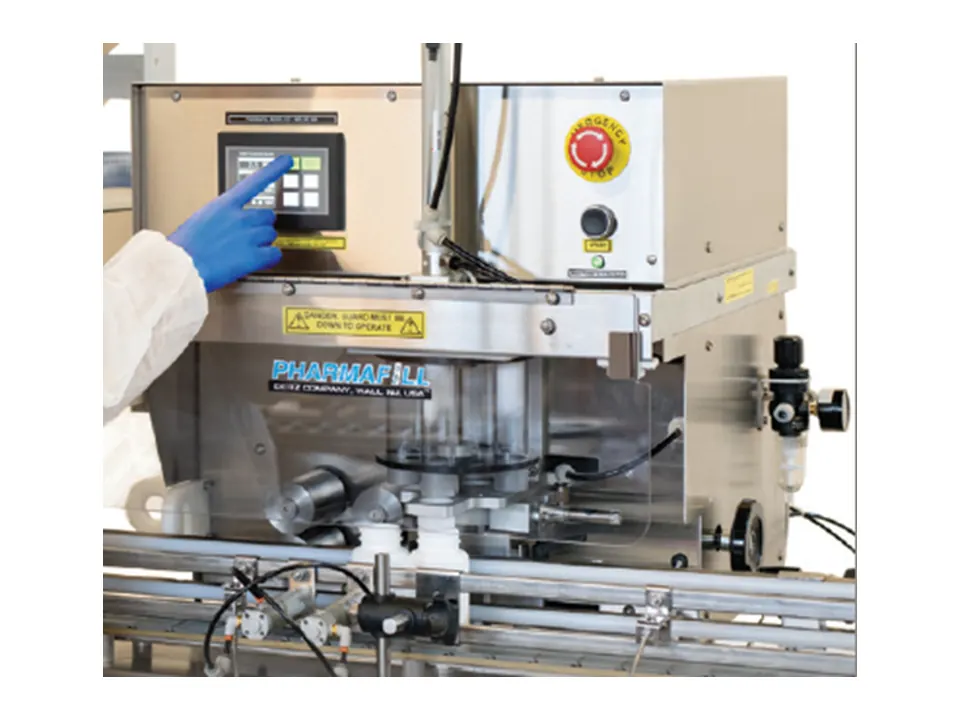

BMCS1 Cotton Inserter

The BMCS1 cotton inserter automatically separates cotton, rayon, and polyester from continuous rolls into individual pieces and inserts them into the center of bottles or other containers at speeds of up to 80 bottles per minute. It packs proprietary, sensor-driven technology from the highspeed CS10 model into a compact design that enables growing companies to upgrade from manual to automated and start enjoying faster, easier, more dependable production without compromising the budget.

• Get a Free Quote
• Small footprint just 26.5” wide x 23” deep
• Height-adjustable from 54.5” - 64.5” high
• No-knife design safely separates cotton from coil
• Inserts from 1 - 9 pieces per bottle
• Piece length from 2”- 9”
• 50 - 80 pieces per minute
• Bottle heights 1”- 9”
