Capping Machines

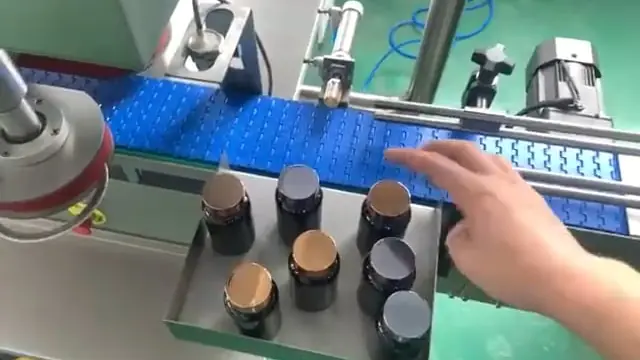

iFOILER Induction Sealer

The iFoiler Induction Sealer features a highly functional touchscreen interface and multiple language functions. Extra functions integrated into the microprocessor, such as memory functions to save power settings and conveyor speeds, make the iFoiler simple to use and efficient and ensure better quality. Induction sealing technology lets you rapidly apply high-quality, durable seals to your products. This is accomplished by applying an electromagnetic field to a special induction seal inside your product cap. Induction sealing can be used for various products in categories like food and beverage, chemical, pharmaceutical, and much more. Induction sealing provides several benefits. It creates a reliable, powerful seal that prevents spills and preserves freshness by preventing air and moisture intrusion. You cannot reapply induction seal caps without an induction sealer, so they also provide tamper evidence to your products.

• Get a Free Quote

Automatic 4 Wheel Capping Machine with Cap Sorter

The BMSC4 Automatic Capping Machine is used to close all kinds of screw caps. It uses a cap vibrating sorter to feed caps to the bottle mouth. Then 4 wheels move together to close the caps. It is widely used for all kinds of bottles and caps with different materials in pharmaceutical, pesticide, chemical, food, cosmetics, and other industries.

• Capacity: 40-60 Bottles/Min (pick & place), 50-80 Bottles/Min (cap pulling)
• Bottle
• Diameter: 35-140mm
• Height: 38-350mm
• Cap
• Diameter: 25-70mm
• Power: 380VAC, 50-60Hz, 3P, 1.2KW (optional 220VAC 1P)
• Material: SUS304
• Get a Free Quote

Automatic 6 Wheel Capping Machine with Cap Elevator

The BMSC-6 Automatic Capping Machine is used to close all kinds of screw caps. It uses a cap elevator to feed caps to the bottle mouth. Then each side 3 wheels close the caps. It is widely used for all kinds of bottles and caps with different materials in pharmaceutical, pesticide, chemical, food, cosmetics, and other industries.

• Capacity: 60-120
• Bottles/Min
• Bottle
• Diameter: 35-200mm
• Height: 38-350mm
• Cap
• Diameter: 25-140mm
• Power: 380VAC, 50-60Hz, 3P, 1.2KW (optional 220VAC 1P)
• Material: SUS304
• Get a Free Quote

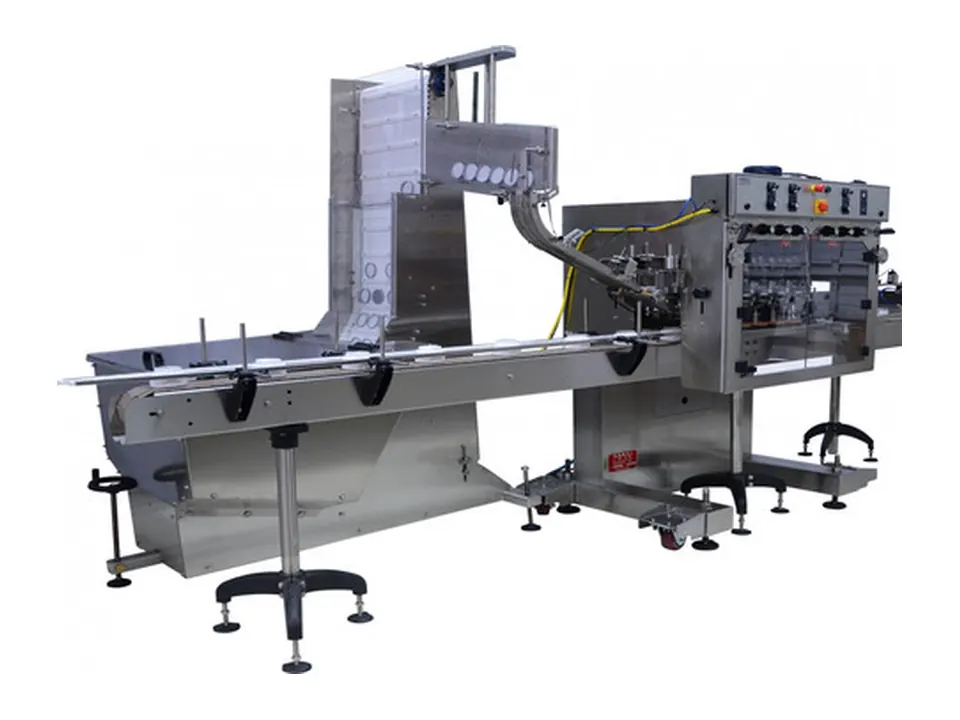

Automatic Inline Waterfall Style Capping Machine

Our line of TruCap Inline Screw Cappers consist of two components: the base cap tightening unit and the cap sorting system with chute. When integrated together it becomes an automatic capper. Waterfall feeders are by far the most popular feeders for our automatic cappers because they serve as both sorter and cap elevator. With a floor-level hopper to load caps from bulk, it is very easy to work with. However, it is designed to work primarily with flat caps and depends on the closed end of the cap to be heavier than the rest of the cap, which is not the case with all caps. If there is any doubt, we should test your caps to make sure they will run.

Heavy-duty 304 stainless-steel welded C frame for easy mounting over existing conveyors Heavy-duty linear carriage system for height adjustability All shafts and threaded rods manufactured in 304 stainless-steel Heavy-duty casters standard No change of parts is needed for a wide range of containers Front covers with safety interlock switches standard Top driven to ensure no product spillage into drive assembly Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment).

Construction in stainless steel 18-inch-wide belt Cap feeder is adjustable for bottle caps from 8mm to 110mm in diameter, via quick adjust knobs Caps feed on demand, controlled by a photoelectric sensor Air shutoff valve controlled by photoelectric sensor Includes air regulator and filter Feeder inclination adjustable from 0 to 5 degrees Complete height adjustment by structure 1-inch bolts and/or cap delivery system 10 cubic foot cap hopper Drive provided by DC gear motor Independent Speed Control (potentiometer)

• Common Waterfall Feeder Features
• Electric and Pneumatic Requirements
• 220 Volts, Single phase, 50/60Hz, 15 Amps 10 CFM @ 80 p.s.i.
• Get a Free Quote
