Filling & Capping Systems

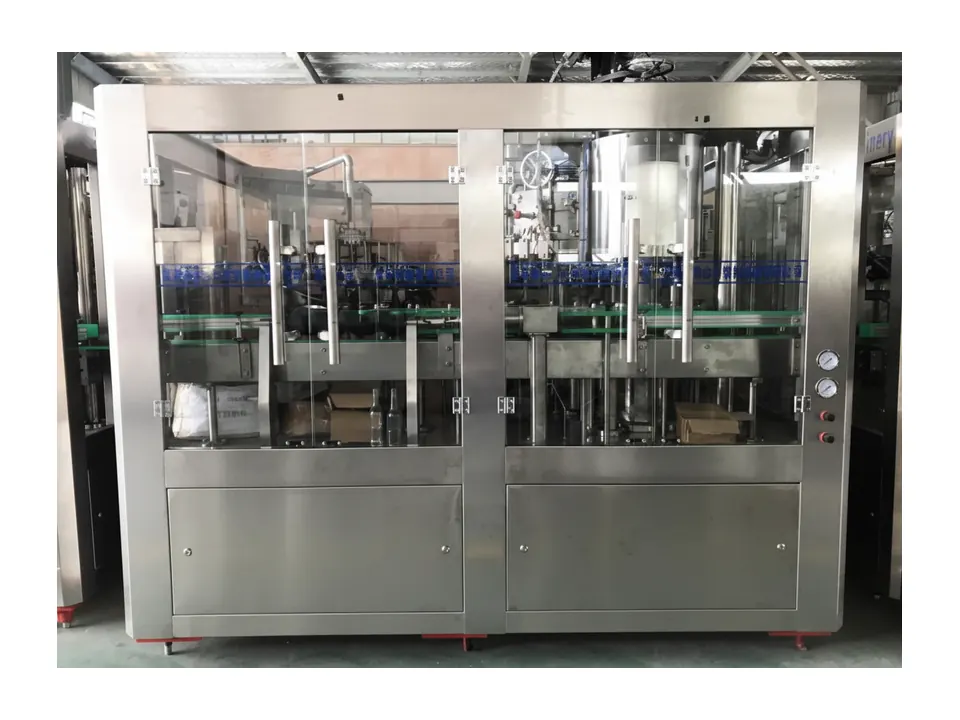

3-in-1 Monoblock Washing Filling Capping Machine for Carbonated Drinks

The machine integrates three functions of bottle flushing, filing, and capping to achieve full automation, which can be applied to various bottle types. The whole machine adopts PLC computer program control and human-machine interface touchscreen buttons and is equipped with alarm devices for lack of caps and overload protection, which can detect and eliminate faults in time, and the degree of production automation is high. There are several models available to meet your specific needs, please contact us for a quote!

• Get a Free Quote

BUS-250FH Vertical Pneumatic Filling Machine with Heater and Blender

• Filling Speed 20-40 times/minute
• Filling
• Precision: ± 0.5%
• Ranges: 5-60ml, 15-120ml, 60-250ml, 120-500ml, 250-1000ml, 500-2500ml, 500-5000ml
• Air
• Pressure: 5-8
• Mpa
• Power: 220V, 4500W
• Dimensions: 760x650x1650mm
• Weight: 70KG
• Get a Free Quote
• By heating circulating water in the interlayer of the hopper, the machine indirectly heats the material to a constant temperature, and stirs the material to increase the material fluidity, reducing the viscosity of the material so that it can accurately fill material with high viscosity.
• Equipped with quick disassembly and assembly joint for easy cleaning.
• Adopts pneumatic control and good orientation, so the filling accuracy is very high, the highest accuracy can be controlled within ± 0.5%.

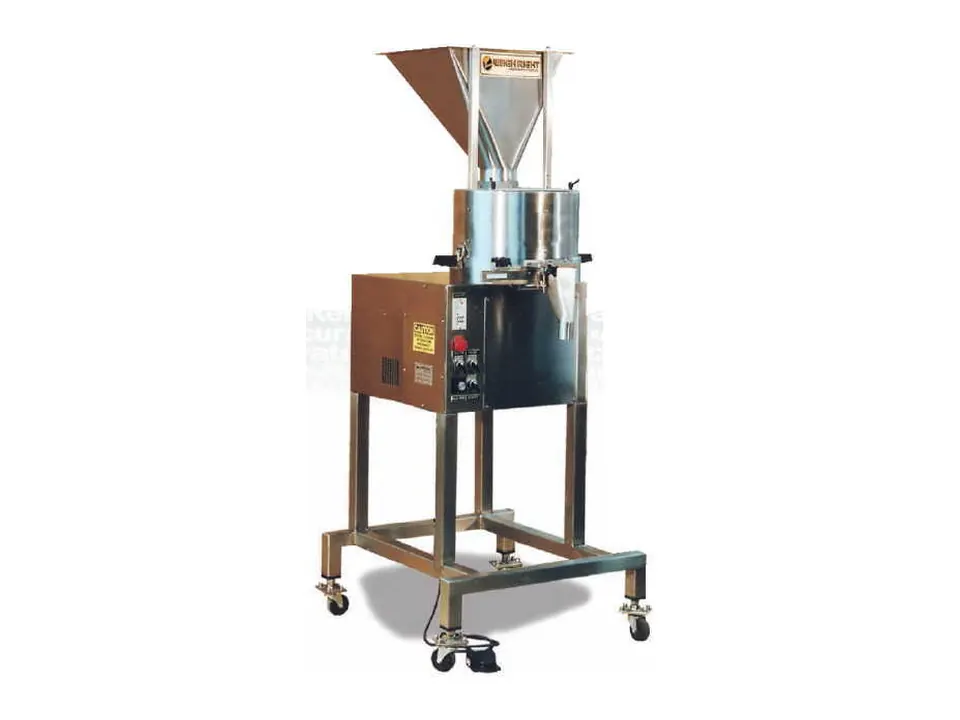

Adjustable Volume Cup Filler

Volumetric Cup Filler Systems are used for dispensing a variety of dry free-flowing products such as beans, rice, pet food, candy, seeds, and more without any product degradation.

• Get a Free Quote

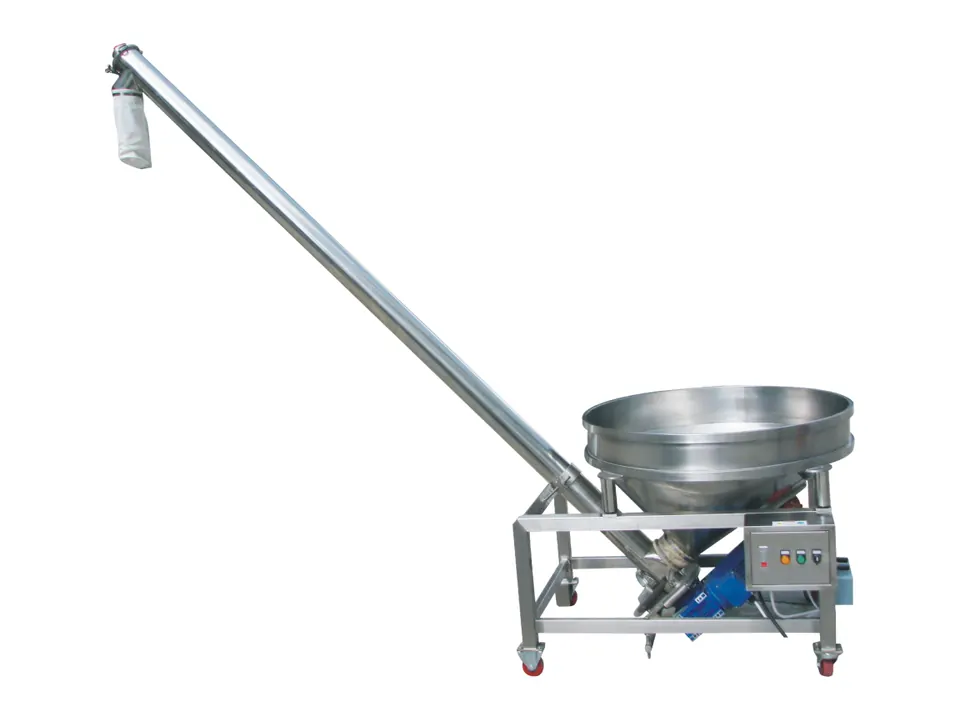

Auger Filler Hopper Refilling System

Save time and energy with an automatic powder auger feeding elevator! This product can be used in conjunction with powder-filling machines of various specifications and high-speed mixers so that powder and particles are automatically fed from the storage box by the screw (height can be custom) and added to your auger filler’s hopper by the level control. It has the characteristics of automatic feeding, fast feeding, labor saving, safety, and reliability.

• Get a Free Quote

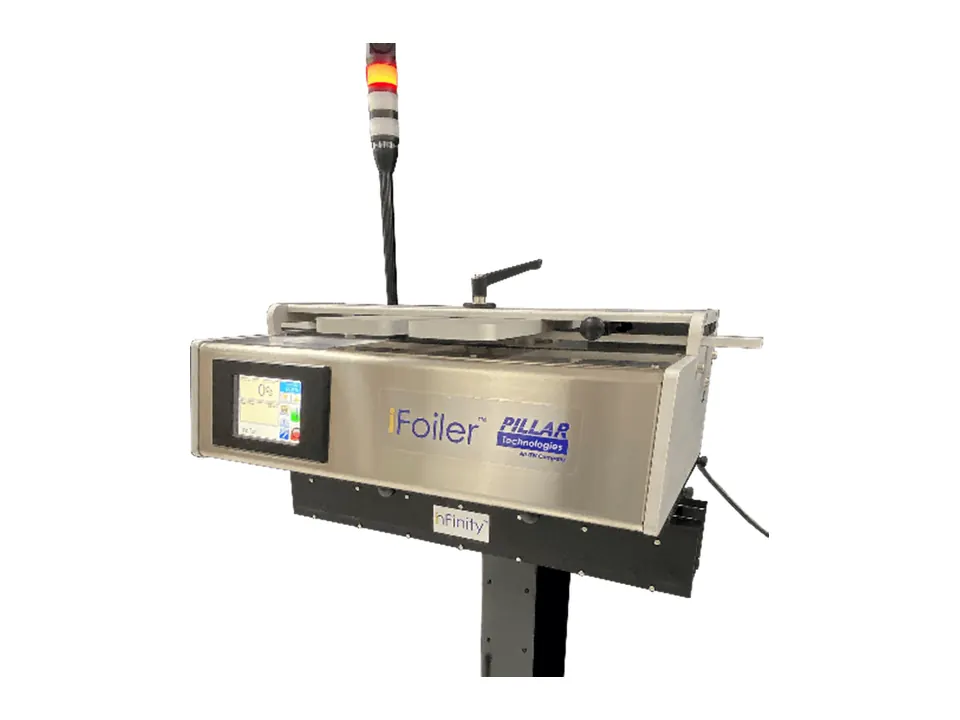

iFOILER Induction Sealer

The iFoiler Induction Sealer features a highly functional touchscreen interface and multiple language functions. Extra functions integrated into the microprocessor, such as memory functions to save power settings and conveyor speeds, make the iFoiler simple to use and efficient and ensure better quality. Induction sealing technology lets you rapidly apply high-quality, durable seals to your products. This is accomplished by applying an electromagnetic field to a special induction seal inside your product cap. Induction sealing can be used for various products in categories like food and beverage, chemical, pharmaceutical, and much more. Induction sealing provides several benefits. It creates a reliable, powerful seal that prevents spills and preserves freshness by preventing air and moisture intrusion. You cannot reapply induction seal caps without an induction sealer, so they also provide tamper evidence to your products.

• Get a Free Quote

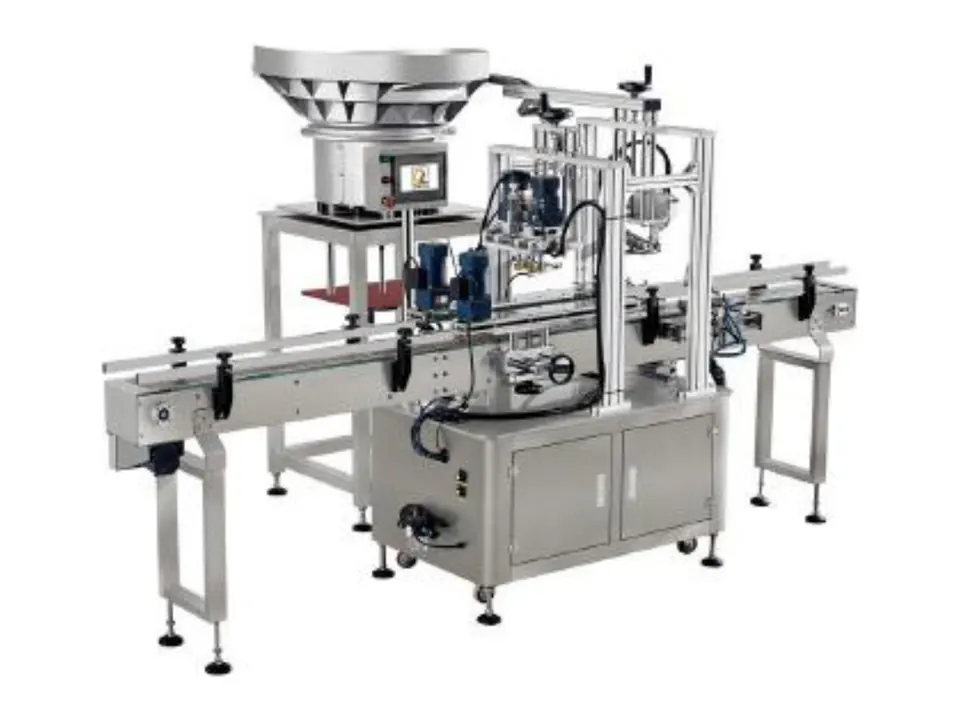

Automatic 4 Wheel Capping Machine with Cap Sorter

The BMSC4 Automatic Capping Machine is used to close all kinds of screw caps. It uses a cap vibrating sorter to feed caps to the bottle mouth. Then 4 wheels move together to close the caps. It is widely used for all kinds of bottles and caps with different materials in pharmaceutical, pesticide, chemical, food, cosmetics, and other industries.

• Capacity: 40-60 Bottles/Min (pick & place), 50-80 Bottles/Min (cap pulling)
• Bottle
• Diameter: 35-140mm
• Height: 38-350mm
• Cap
• Diameter: 25-70mm
• Power: 380VAC, 50-60Hz, 3P, 1.2KW (optional 220VAC 1P)
• Material: SUS304
• Get a Free Quote
