Sleeving Machines

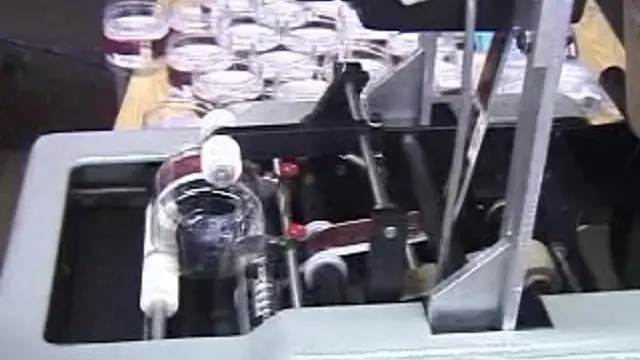

BM6 Shrink Sleeve Neck Bander and Heat Tunnel

The BM-6 is an excellent choice for an entry-level Shrink Labeling and Shrink Band Machine. The simplicity of design, user-friendly interface, and ease of use make it simple for line personnel to understand and operate. Using a spacing wheel instead of traditional feed-screw product transport mechanisms, changeover takes less than 10 minutes, thereby increasing output and efficiency. Once you’ve enjoyed the increased output & efficiency, you’ll understand why hundreds of companies have chosen the M6.

Durable Stainless-Steel Construction Quick Wash Down Compact Space-Saving Design Speeds Around 100 Bottles/Min M6 Series Size Range 25-122mm Lay Flat Band Lengths to 3” Fast Changeover Spacing Wheel for More Efficient Bottle Handling

• Get a Free Quote
• Bands Up to 70mm Closure
• Larger Banding Sizes Are Available
• Speeds Up to 200 Units Per Minute
• Optional Dual Head Station Increases Output
• Cuts and Places PVC Roll Stock Bands Up to 6” Long
• Durable Stainless Steel Construction
• Quick Wash Down
• Compact Space-Saving Design
• Easy to Use and Maintain

Heat Shrink Tunnel

The Heat Shrink Tunnel is mainly used to shrink tamper evident poly film neck bands or labels of products in bottle shape, can shape, or barrel shape for glass bottles, plastic bottles, or paper cups. With the band or label either on the top, in the middle, at the bottom of the bottle, or wrapping the whole bottle, it is able to be shrunk with different types of models. The most common type of heat shrink tunnel is the electric heat tunnel. We also offer steam shrink tunnels. They are widely used in the food, medicine, cosmetic, and pesticide industries, etc.

• Product
• Size: 200mmW x 100mmH Dimensions of Shrinkage Furnace (L,W,H): 1200x400x200mm
• Conveying
• Chain
• Stick
• Speed: 0-15M/min
• Transport
• Load
• Max: 10Kg
• Machine
• Dimensions: 1600x560x660mm
• Get a Free Quote

BM-5 Shrink Sleeve Neck Banding Machine

Neck Banding Machines are known as shrink sleeving machines, shrink banders, tamper-evident banders, neck banders, and, as some machines are capable of both, full body sleeves or shrink labels. No matter what the name, neck banders convert lay flat tube roll stock into a shrink band by opening and re-creasing the tube stock so that it opens more easily. The tube stock is then drawn back flat 90 degrees to its original position through the drive rollers and then is cut in any of several ways. Some neck banding machines cut after the film has been forced over the product by a V knife. Other shrink band applicators may cut while the stock is still flat while being held by vacuum cups, and our high-speed machines use a group of circular cutters located outside the mandrel after the band has been fed onto the product. Circular cutters work so fast that speeds of over 250 bottles per minute are possible on a single head.

Durable Stainless-Steel Construction Quick Wash Down Compact Space-Saving Design Speeds Around 100 Bottles/Min M5 Series Size Range 25-90mm Lay Flat Band Lengths to 3” Fast Changeover Spacing Wheel for More Efficient Bottle Handling
