Tube Filling & Cartoning

BMNF-30B Plastic Tube Filler and Heat Sealer

Widely used in pharmaceutical, food, cosmetic, and daily chemical industries to fill ointment or viscous fluid materials into plastic tubes or laminated tubes. And then seal the tube tails, trim the tails, and print (emboss) code on tubes automatically.

• Get a Free Quote
• Fulfills tube feeding, marking identification, filling, hot air sealing, trimming, code printing, and finished product ejection through an automatic control system.
• Adopts touch screen and PLC control system. Easy to operate.
• Tube feeding is conducted pneumatically via a vacuum device.
• Sense the color center by rotary and photoelectric inductance to position accurately.
• The material contacting part is made of 316L stainless steel, clean, sanitary and conforming to GMP standard requirements.
• Filling volume 5-250ml (tube）
• Filling accuracy ≤±1%
• Capacity 1800-2400 (tubes/hour Adjustable）
• Tube diameter ф10- 50mm
• Tube length 210mm (Max. Length)
• Hopper volume 40 L
• Power AC380/220V (Optional)
• Compressed Air 0.5-0.7MPa
• Hot air 3.0 kW
• Dimension 1900(L)×850(W)×1900(H)mm
• Weight (Approx) 850kgs

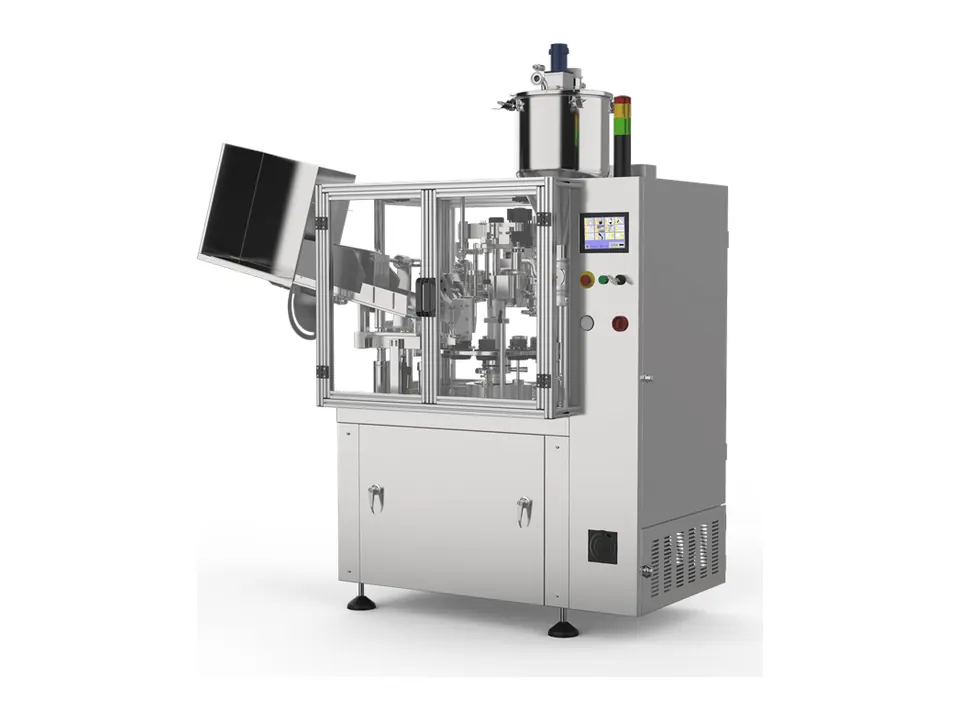

BMZF-60B Aluminum Tube Filler and Sealer

Aluminum Tube Filling and Sealing Machine can be used in pharmaceutical, food, cosmetic, and daily chemical industries to fill ointment or viscous fluid materials into aluminum tubes. It fold-seals the tube tails and can print batch numbers & production dates on tubes.

• Get a Free Quote
• Fulfills tube feeding, marking identification, filling, fold sealing, code printing, and finished product ejection through an automatic control system.
• Adopts touch screen and PLC control system. Non-contact operation. Easy to operate.
• Compact configuration. Automatic tube feeding. Fully-enclosed conveyer part.
• Tube feeding is conducted pneumatically via a vacuum device.
• Multiple edge folding ways. Can get a double fold, three-time fold or saddle-type fold on the same machine by adjusting or replacing the robot hand.
• Filling volume 5-150ml（tube）
• Filling accuracy ≤±1%
• Capacity 1800-3000(tubes/hour Adjustable）
• Tube diameter ф10- 32mm
• Tube length 185mm (Max. Length)
• Hopper volume 40 L
• Power 380/220V (Optional)
• Compressed Air 0.5-0.7MPa
• Power 2Kw
• Dimension 1900×850×1900mm LxWxH
• Weight (Approx) 850kgs

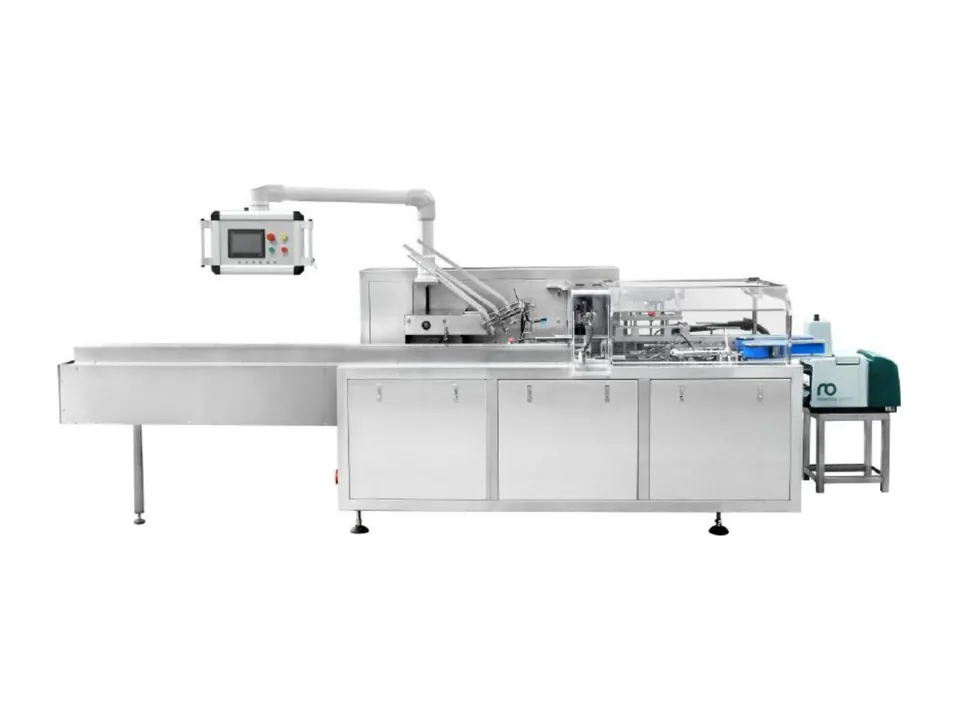

BMZ-160 Cartoner Machine

The BMZ-160 is a high-speed automatic cartoning machine designed for efficient packaging. It handles product feeding, box retrieval, opening, product insertion, edge folding, sealing, and final package output. Constructed from durable stainless steel, it adheres to pharmaceutical industry standards. With overload protection and a user-friendly control system, it ensures reliability and operator safety. The machine integrates a photoelectric eye detection system, offers easy adjustment for various sizes, and can be customized with additional features. It can also be integrated with other equipment for joint production. The NHZ-160 provides automation, versatility, and ease of use in packaging processes.

• Packing
• Speed: 20-40 Boxes/Min
• Paper
• Box
• Requirements: 250-400g/m2
• Range of
• Sizes: L (250-300) x W (35X60) x
• H (35-60)
• Gas
• Pressure: ≥0.6Mpa
• Consumption: 20m3/h
• Power: 220V, 60Hz, 1.5Kw
• Get a Free Quote
• The machine features automatic box feeding, opening, product insertion, edge folding, and box sealing, all in a compact and user-friendly design.
• It utilizes a servo/stepper motor, touch screen, and PLC programmable control system, with a clear and simple man-machine interface for enhanced automation and ease of operation.
• The photoelectric eye automatic detection and tracking system ensures that no box is picked up without a product infeeding, resulting in maximum savings of packaging materials.
• The machine offers a wide packaging range and easy adjustment, allowing for rapid changeover between various specifications and sizes without the need for parts replacement.
• Specifications can be changed without replacing the parts, requiring only adjustments.
• The machine is equipped with automatic shutdown and main drive motor overload protection when there is no product or when the product supply is not in place, ensuring safety and reliability.
• It provides an automatic display of packing speed and packaging quantity counting for convenient monitoring.
• Optional top turn-type safety protective cover can be used based on customer requirements, providing easy operation and an attractive appearance.
• It can be seamlessly integrated with other equipment such as flow pack packaging machines, bottle lines, filling machines, labeling machines, jet coding machines, online weighing meters, and other production lines, allowing for joint production.
• Various automatic feeders and box loading systems can be designed to meet specific packaging requirements. Additionally, a hot melt glue machine can be incorporated for hot melt glue spray sealing of boxes, based on customer requirements.

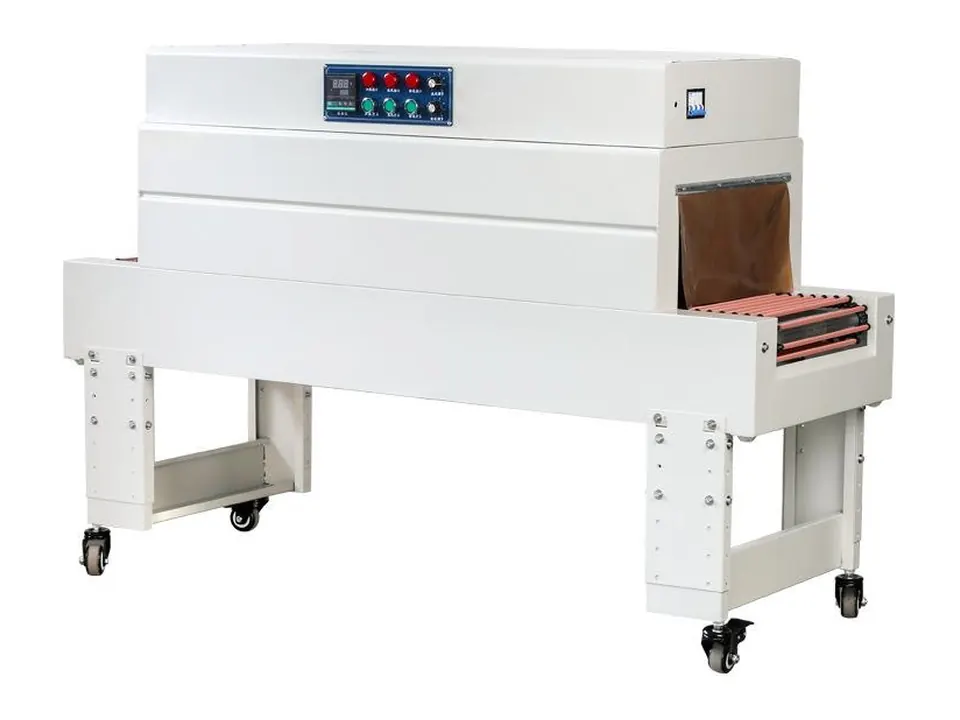

Heat Shrink Tunnel

The Heat Shrink Tunnel is mainly used to shrink tamper evident poly film neck bands or labels of products in bottle shape, can shape, or barrel shape for glass bottles, plastic bottles, or paper cups. With the band or label either on the top, in the middle, at the bottom of the bottle, or wrapping the whole bottle, it is able to be shrunk with different types of models. The most common type of heat shrink tunnel is the electric heat tunnel. We also offer steam shrink tunnels. They are widely used in the food, medicine, cosmetic, and pesticide industries, etc.

• Product
• Size: 200mmW x 100mmH Dimensions of Shrinkage Furnace (L,W,H): 1200x400x200mm
• Conveying
• Chain
• Stick
• Speed: 0-15M/min
• Transport
• Load
• Max: 10Kg
• Machine
• Dimensions: 1600x560x660mm
• Get a Free Quote

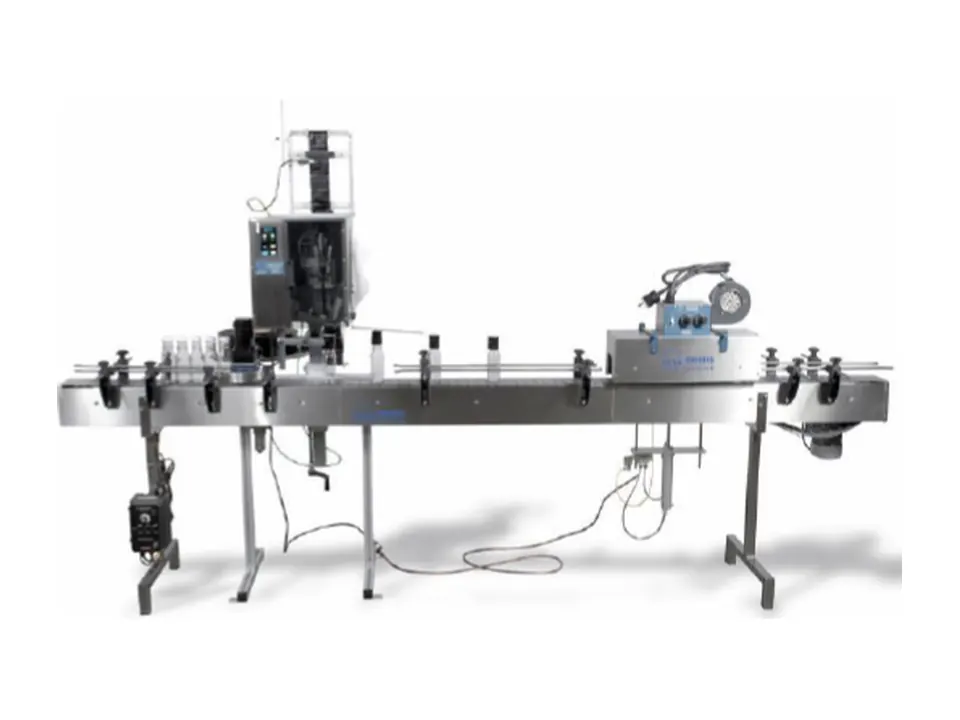

BM-5 Shrink Sleeve Neck Banding Machine

Neck Banding Machines are known as shrink sleeving machines, shrink banders, tamper-evident banders, neck banders, and, as some machines are capable of both, full body sleeves or shrink labels. No matter what the name, neck banders convert lay flat tube roll stock into a shrink band by opening and re-creasing the tube stock so that it opens more easily. The tube stock is then drawn back flat 90 degrees to its original position through the drive rollers and then is cut in any of several ways. Some neck banding machines cut after the film has been forced over the product by a V knife. Other shrink band applicators may cut while the stock is still flat while being held by vacuum cups, and our high-speed machines use a group of circular cutters located outside the mandrel after the band has been fed onto the product. Circular cutters work so fast that speeds of over 250 bottles per minute are possible on a single head.

Durable Stainless-Steel Construction Quick Wash Down Compact Space-Saving Design Speeds Around 100 Bottles/Min M5 Series Size Range 25-90mm Lay Flat Band Lengths to 3” Fast Changeover Spacing Wheel for More Efficient Bottle Handling

• Get a Free Quote
